M2.5 x 3mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M2.5 |
| Length | 3.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 3mm Flat Point Socket Grub Screw | H1.3 Drive | A4 Stainless Steel
Designed for machine guarding, this M2.5 x 3mm DIN 913 grub screw gives engineers a neat way to lock parts in position. The flat end type spreads contact across the mating face while the H1.3 drive supports controlled tightening with a hex key. This makes it useful as a socket grub screw in guard posts, hinge bars and stop blocks where supports discreet fixing where raised heads may snag.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. The combination of a flat point, metric thread and socket drive gives a controlled fixing for assemblies that need repeatable setting and removal. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Guard posts, hinge bars and stop blocks using a M2.5 x 3mm flat point set screw
- Locking pulleys and gear hubs on compatible shafts
- Holding stop blocks inside jigs and fixtures
- Flush fastening in machined assemblies
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H1.3 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

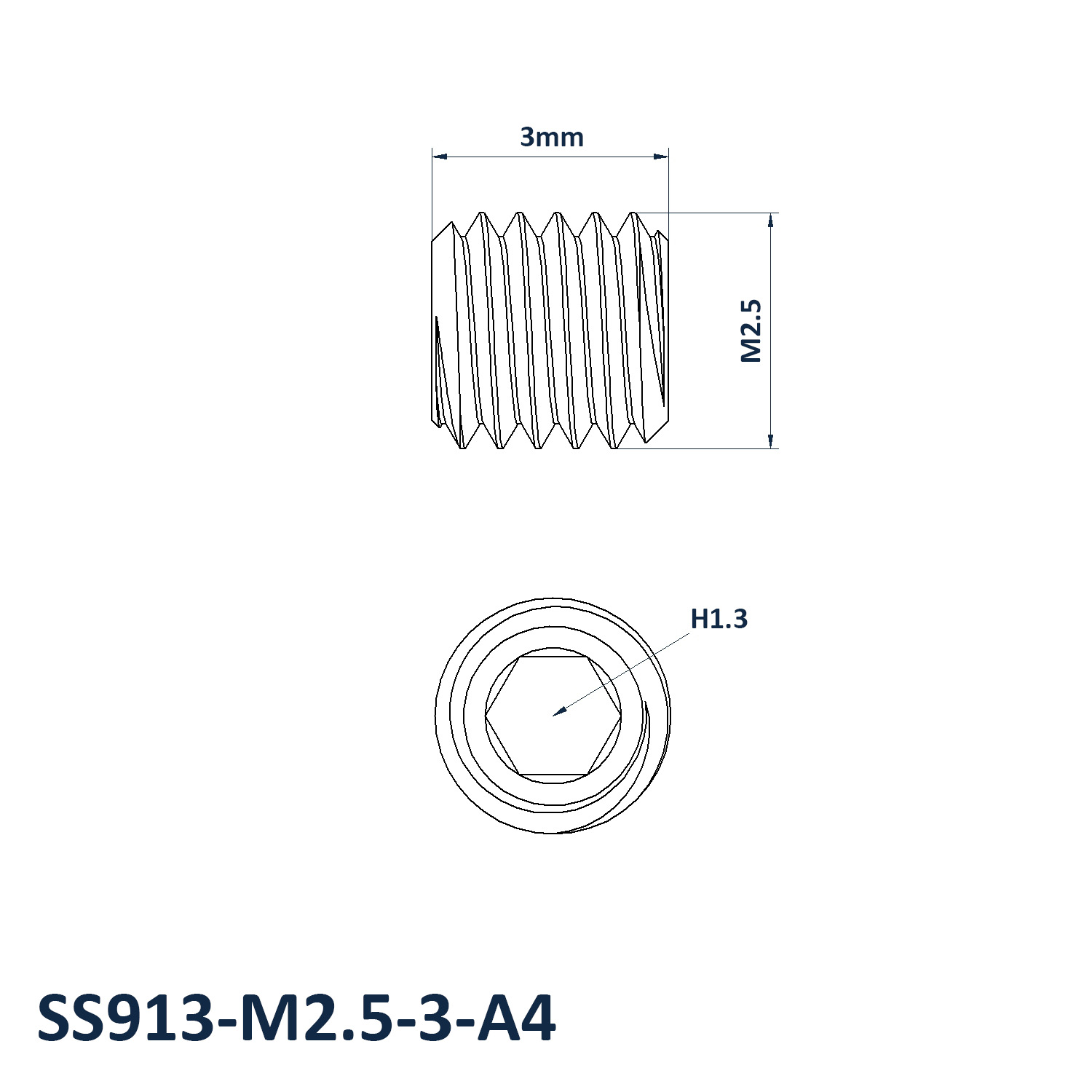

M2.5 x 3mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 3mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
