M2.5 x 5mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M2.5 |
| Length | 5.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 5mm Flat Point Socket Grub Screw | H1.3 Drive | A4 Stainless Steel
When a flush fastening is needed for medical equipment frames, this M2.5 x 5mm flat point set screw provides a tidy DIN 913 solution. The A4 Stainless Steel material and H1.3 drive make it suitable for controlled assembly work in UK engineering environments. This makes it useful as a socket grub screw in instrument housings, stands and controlled adjustment points where supports tidy fastening where smooth external faces are preferred.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Instrument housings, stands and controlled adjustment points using a M2.5 x 5mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

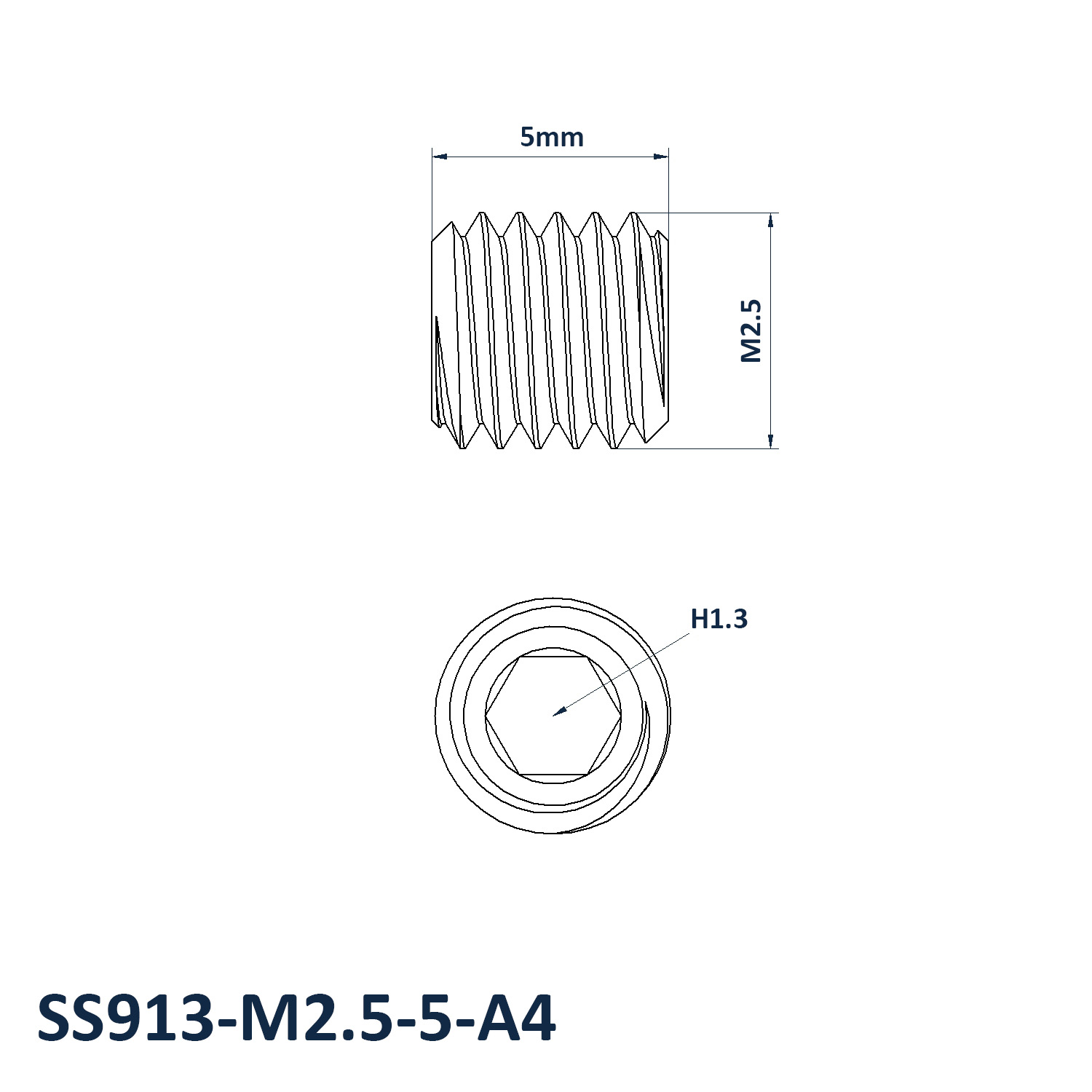

M2.5 x 5mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 5mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
