M3 x 5mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.04 | £0.05 |
| 100 - 499 | £0.03 | £0.04 |
| 500 - 999 | £0.03 | £0.03 |
| 1000 - 4999 | £0.02 | £0.02 |
| 5000 + | £0.01 | £0.01 |
Product Specification
| Thread Size | M3 |
| Length | 5.0mm |
| Pitch | 0.50mm |
| End Type | Flat |
| Drive | H1.5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M3 x 5mm Flat Point Socket Grub Screw | H1.5 Drive | A2 Stainless Steel
This M3 x 5mm hex socket set screw is built for printer and labelling machinery where clean, headless fastening is preferred. The A2 Stainless Steel construction, flat point and DIN 913 / ISO 4026 specification provide a practical fixing for tapped holes and adjusted assemblies. As a flush grub screw, it is well suited to feed rollers, stop collars and adjustment shafts because it assists fine positioning on compact moving assemblies.
Manufactured from A2 stainless steel, this grub screw suits applications where moisture resistance and a neat metallic finish are important. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Feed rollers, stop collars and adjustment shafts using a M3 x 5mm flat point set screw
- Packaging machinery change parts and format tooling
- Workshop repair of brackets, hubs and levers
- General DIN 913 set screw replacement
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

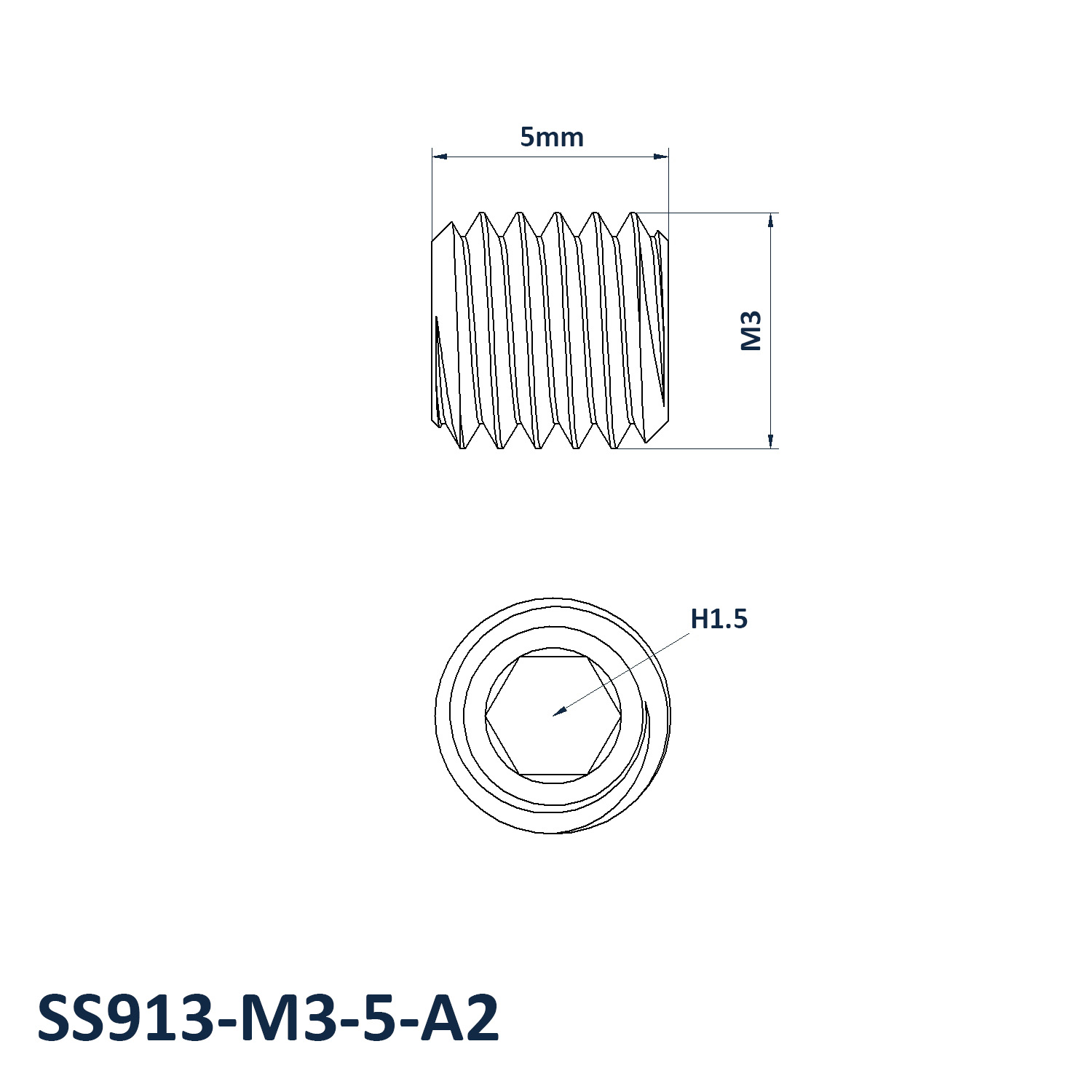

M3 x 5mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M3
- Length: 5mm
- Pitch: 0.50mm
- End Type: Flat
- Drive: H1.5
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
