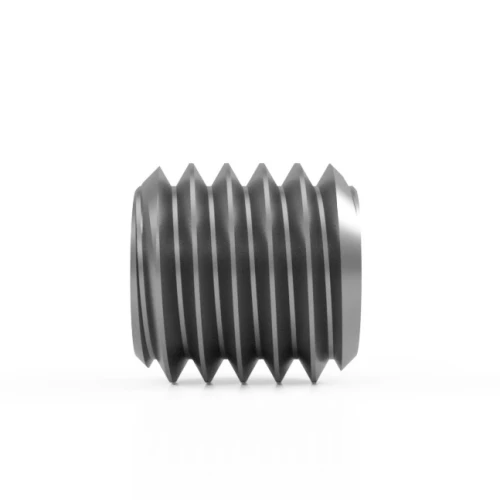

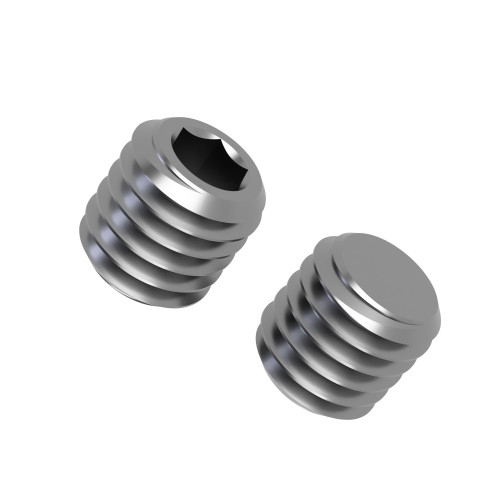

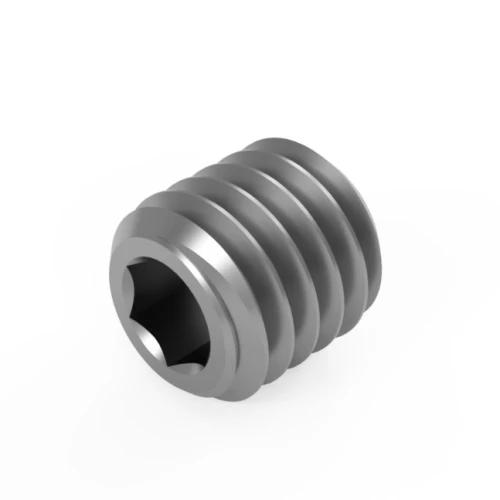

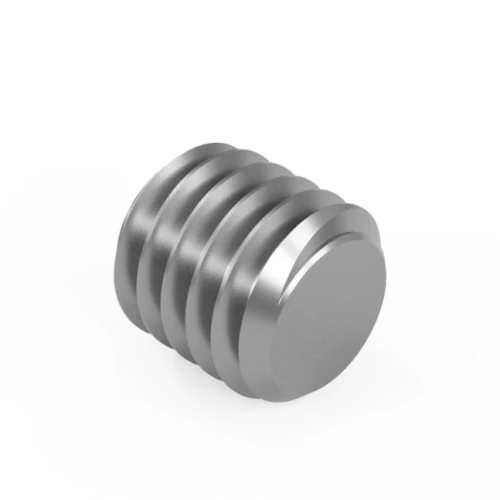

M5 x 20mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.10 | £0.12 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
Product Specification
| Thread Size | M5 |
| Length | 20.0mm |
| Pitch | 0.80mm |
| End Type | Flat |
| Drive | H2.5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M5 x 20mm Flat Point Socket Grub Screw | H2.5 Drive | A4 Stainless Steel
Built around the DIN 913 / ISO 4026 standard, this M5 x 20mm socket set screw is suited to inspection station builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. This makes it useful as a shaft collar grub screw in measuring fixtures, gauges and inspection benches where supports neat retention where access is limited.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Measuring fixtures, gauges and inspection benches using a M5 x 20mm flat point set screw
- Locking pulleys and gear hubs on compatible shafts
- Holding stop blocks inside jigs and fixtures
- Flush fastening in machined assemblies
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

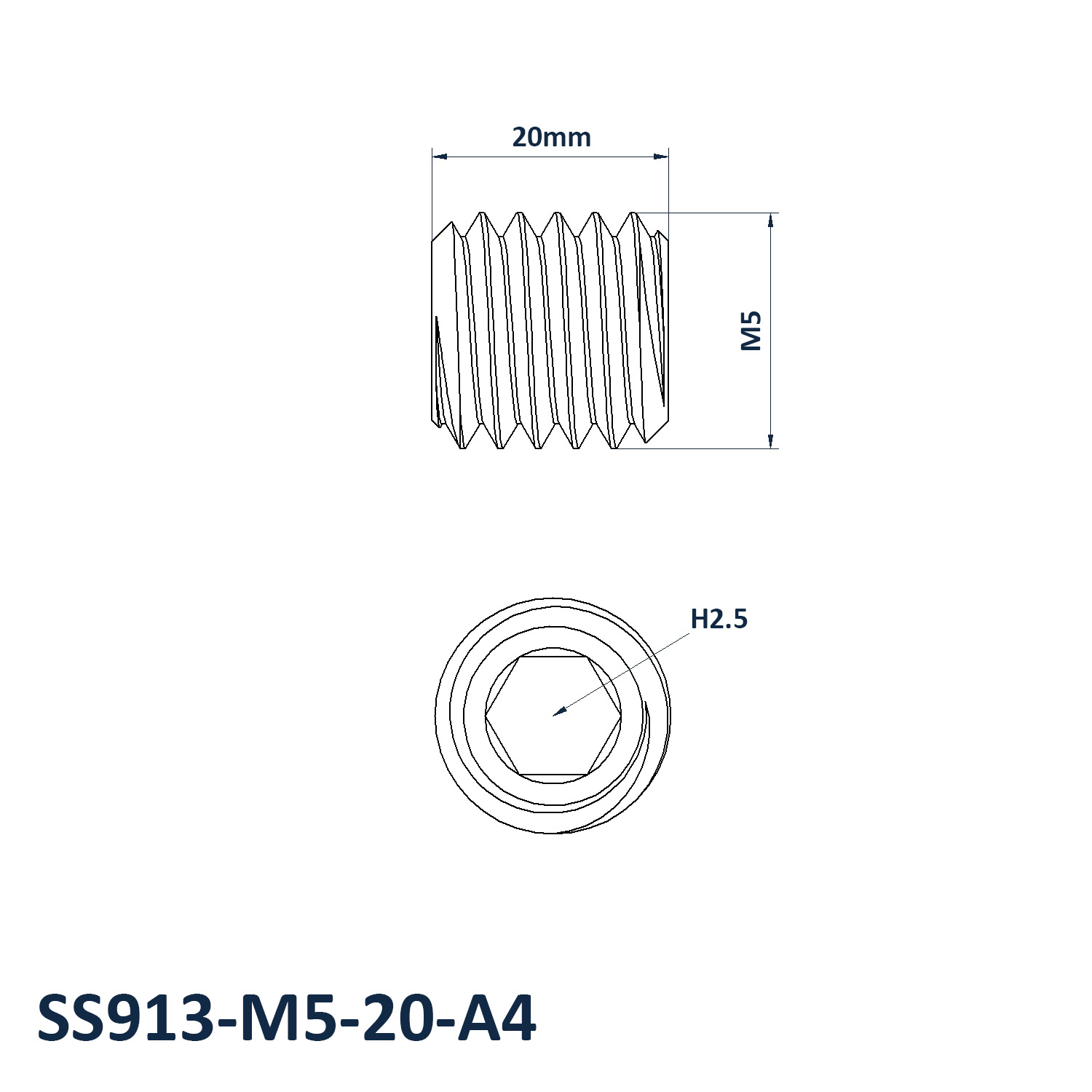

M5 x 20mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M5
- Length: 20mm
- Pitch: 0.80mm
- End Type: Flat
- Drive: H2.5
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
