M6 x 8mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.06 | £0.07 |
| 100 - 499 | £0.05 | £0.06 |
| 500 - 999 | £0.04 | £0.05 |
| 1000 - 4999 | £0.03 | £0.04 |
| 5000 + | £0.03 | £0.03 |
Product Specification
| Thread Size | M6 |
| Length | 8.0mm |
| Pitch | 1.00mm |
| End Type | Flat |
| Drive | H3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M6 x 8mm Flat Point Socket Grub Screw | H3 Drive | A4 Stainless Steel
For conveyor maintenance, the M6 x 8mm flat tip grub screw provides positive location without the space taken by a traditional headed bolt. Its H3 internal socket allows access through a small clearance point during installation or servicing. This makes it useful as a shaft collar grub screw in rollers, stop collars and conveyor change parts where allows quick adjustment on busy production lines.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Rollers, stop collars and conveyor change parts using a M6 x 8mm flat point set screw
- Packaging machinery change parts and format tooling
- Workshop repair of brackets, hubs and levers
- General DIN 913 set screw replacement
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H3 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

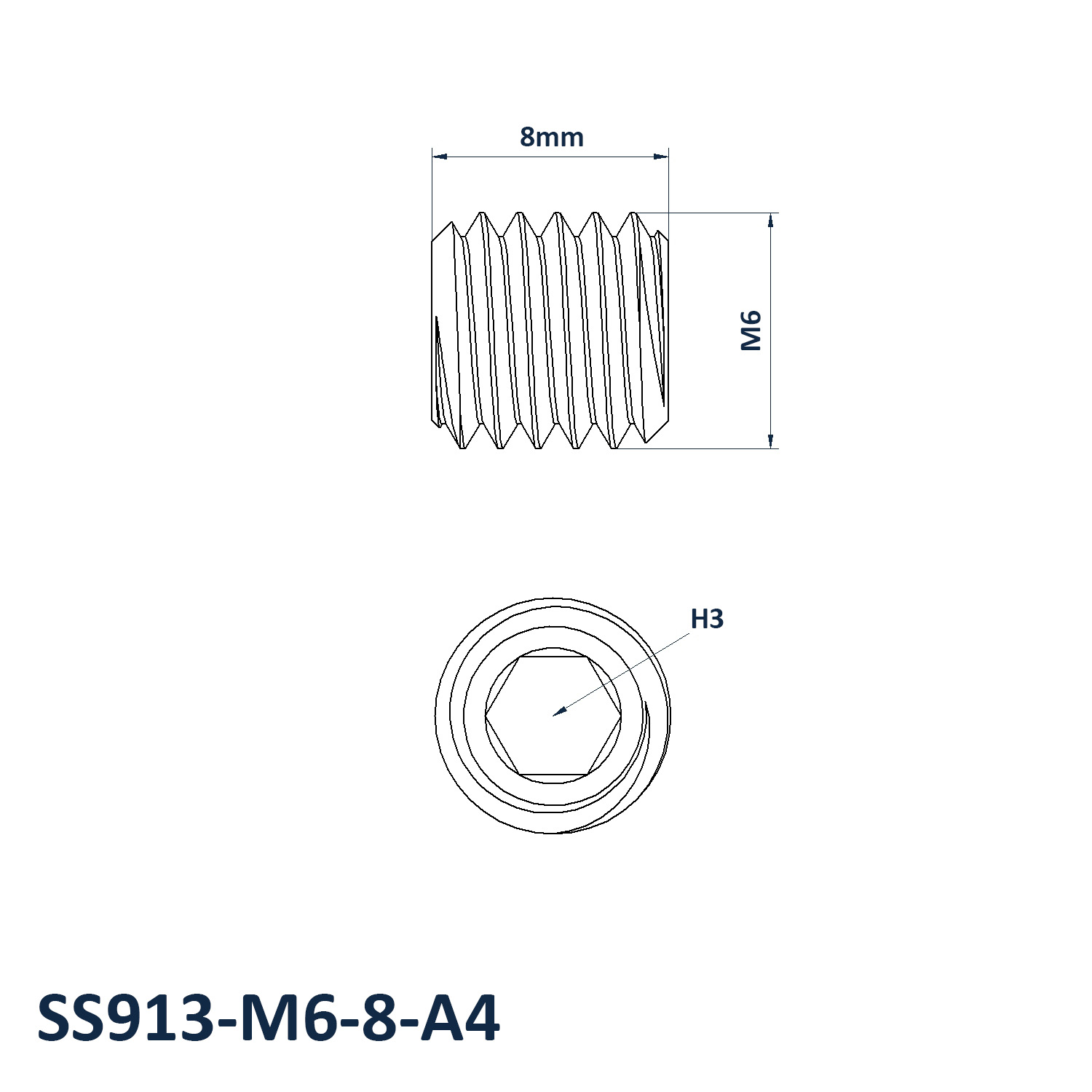

M6 x 8mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M6
- Length: 8mm
- Pitch: 1.00mm
- End Type: Flat
- Drive: H3
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
