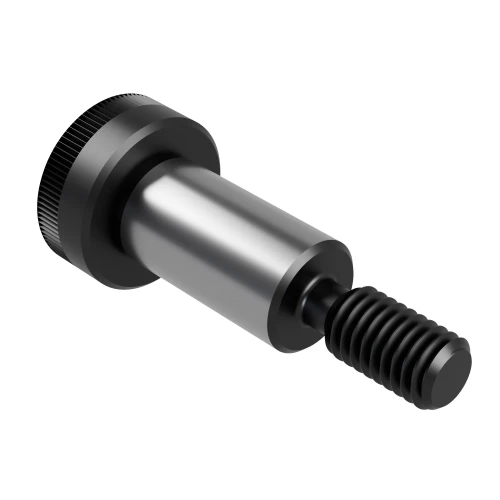

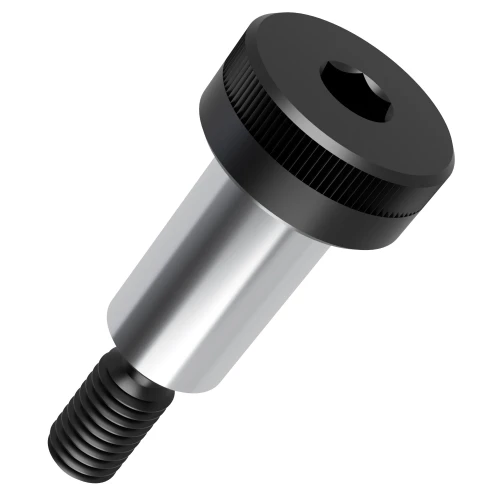

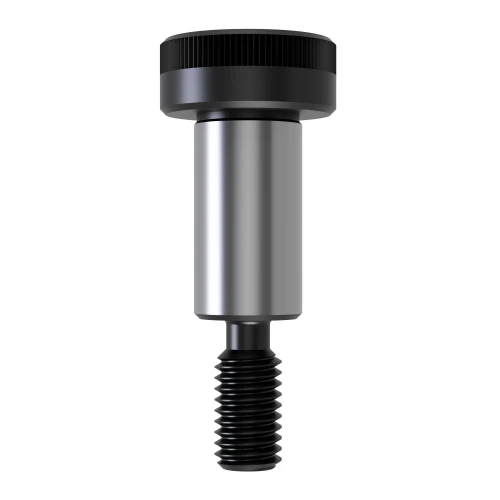

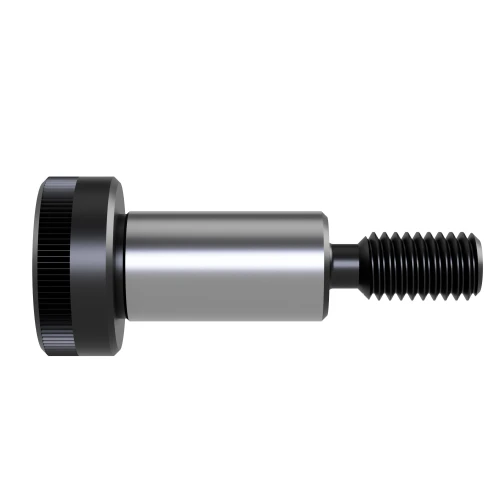

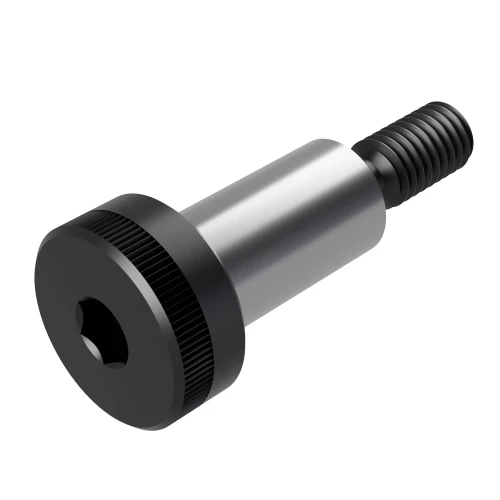

M10 (12mm) x 50mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.78 | £2.14 |
| 10 - 24 | £1.34 | £1.61 |
| 25 - 49 | £1.23 | £1.47 |
| 50 - 99 | £1.12 | £1.34 |
| 100 - 499 | £0.89 | £1.07 |
| 500 + | £0.78 | £0.94 |
Product Specification
| Shoulder Diameter | 12.0mm |
| Shoulder Length | 50.0mm |
| Thread Size | M10 |
| Material | 12.9 Steel |
| Thread Length | 16.0mm |
| Head Diameter | 18.0mm |
| Head Height | 9.0mm |
| Drive | H6 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M10 (12mm) x 50mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
Used in assemblies that need controlled spacing, this M10 (12mm) x 50mm Socket Shoulder Screw provides a measured shoulder length of 50mm and a 18mm head diameter. It suits bearing shoulder bolt requirements where the shoulder size matters as much as the thread.
Its 12.9 steel grade gives the strength needed for compact mechanical joints exposed to repeated load or regular service. The controlled shank size makes the fastener suitable for repeatable mechanical movement, guided location and low play assemblies.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Marine equipment interiors
- Corrosion conscious hardware
- Deck fitting mechanisms
- Compact pivot assemblies

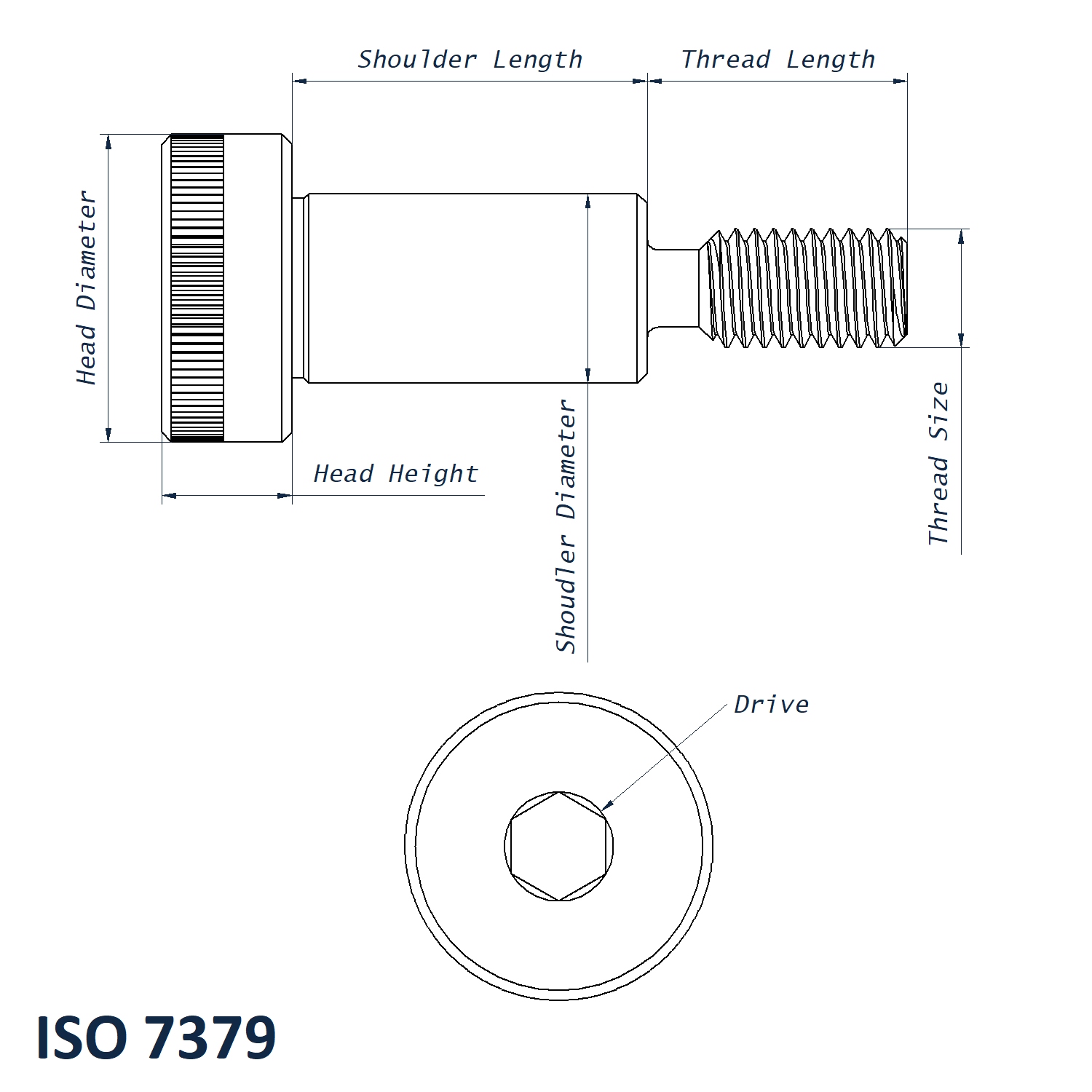

M10 (12mm) x 50mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 12mm
- Shoulder Length: 50mm
- Thread Size: M10
- Thread Length: 16mm
- Head Diameter: 18mm
- Head Height: 9mm
- Drive: H6
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
