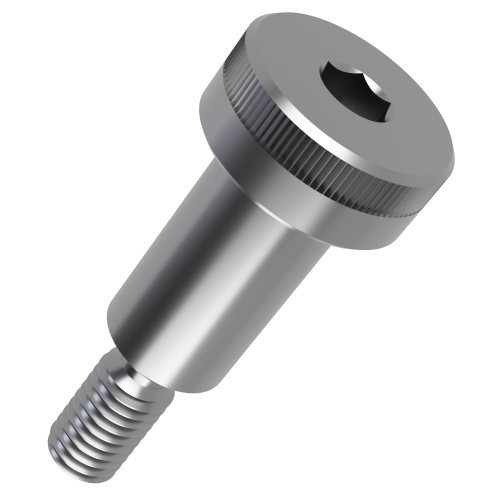

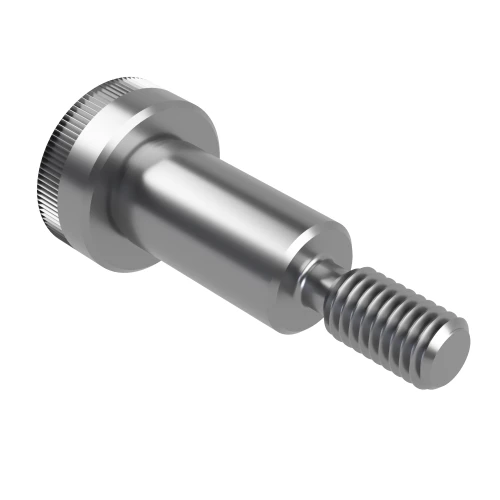

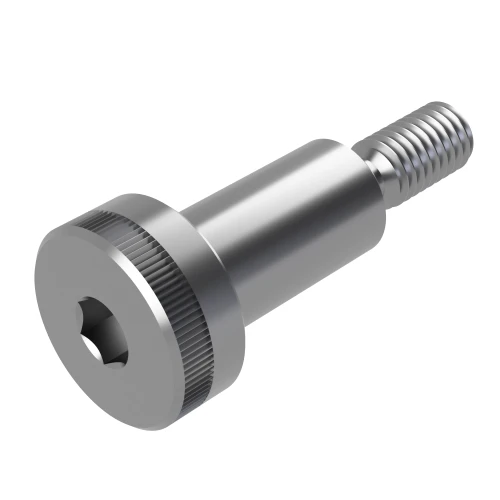

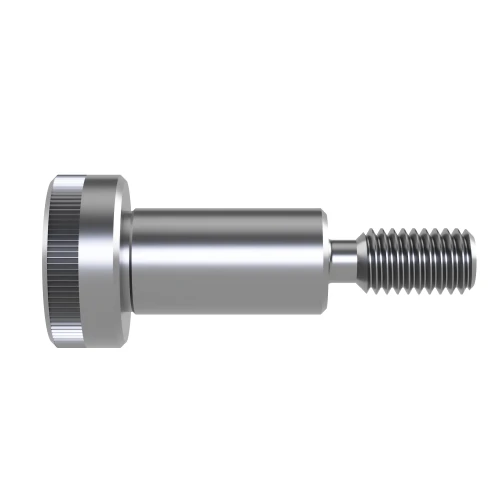

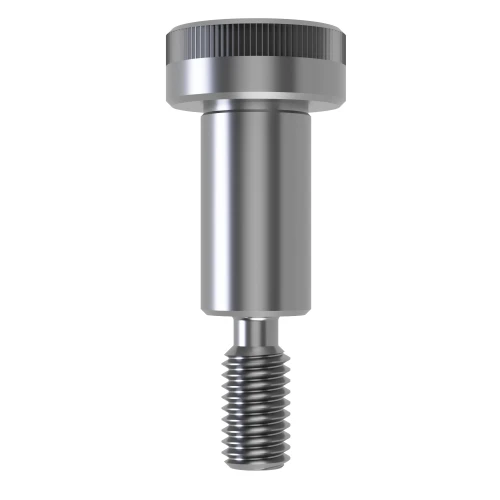

M5 (6mm) x 8mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £7.44 | £8.93 |
| 10 - 24 | £5.58 | £6.70 |
| 25 - 49 | £5.12 | £6.14 |
| 50 - 99 | £4.65 | £5.58 |
| 100 - 499 | £3.72 | £4.46 |
| 500 + | £3.26 | £3.91 |
Product Specification
| Shoulder Diameter | 6.0mm |
| Shoulder Length | 8.0mm |
| Thread Size | M5 |
| Material | A2 Stainless Steel |
| Thread Length | 9.5mm |
| Head Diameter | 10.0mm |
| Head Height | 4.5mm |
| Drive | H3 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M5 (6mm) x 8mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
Manufactured to ISO 7379, this M5 (6mm) x 8mm Socket Shoulder Screw is suited to mechanical joints where the shoulder must guide movement before the thread clamps the part. It suits stainless shoulder screw requirements where the shoulder size matters as much as the thread.
A2 stainless steel gives good corrosion resistance for indoor, production and light external environments where a clean finish is required. The defined shoulder length separates moving components from the clamped joint, reducing the need for extra sleeves or spacers.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Workshop fabrication fixtures
- Jig and tool building
- Machine guard hinge points
- Accurate spacer applications

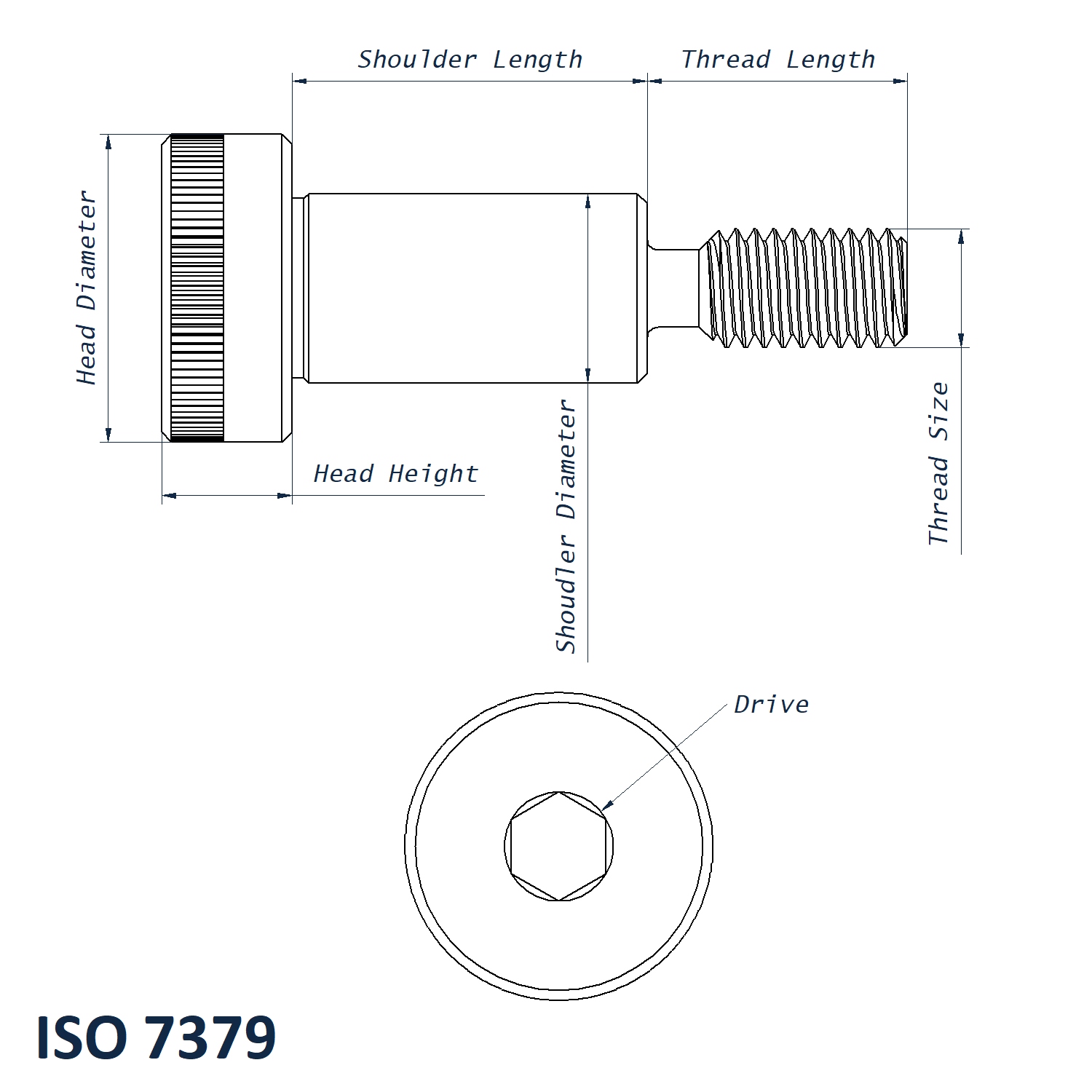

M5 (6mm) x 8mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 6mm
- Shoulder Length: 8mm
- Thread Size: M5
- Thread Length: 9.5mm
- Head Diameter: 10mm
- Head Height: 4.5mm
- Drive: H3
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
Browse Related Fastener Ranges
View our full Socket Shoulder Bolts ISO 7379 range. You can also browse our wider Shoulder Bolts category and Bolts and Screws collection.
