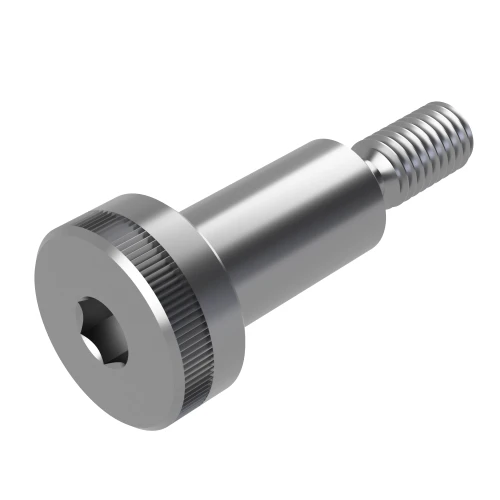

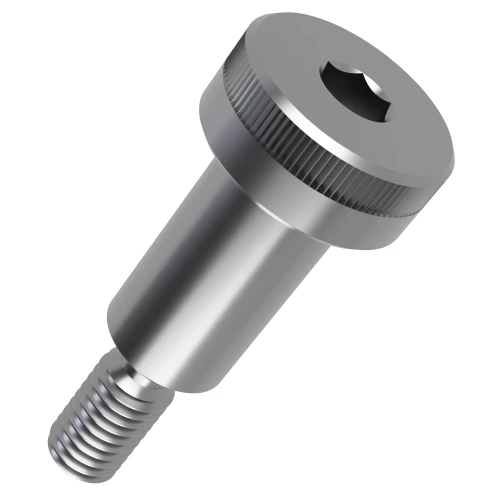

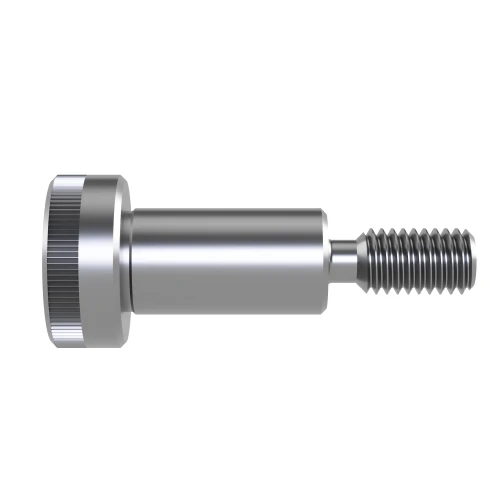

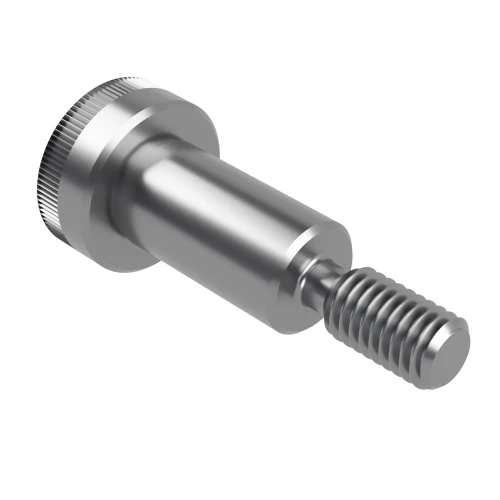

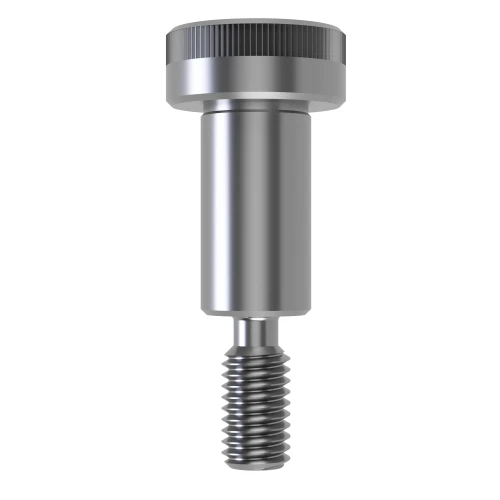

M6 (8mm) x 6mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £15.23 | £18.28 |
| 10 - 24 | £11.43 | £13.71 |
| 25 - 49 | £10.47 | £12.57 |
| 50 - 99 | £9.53 | £11.43 |
| 100 - 499 | £7.62 | £9.14 |
| 500 + | £6.67 | £8.00 |
Product Specification
| Shoulder Diameter | 8.0mm |
| Shoulder Length | 6.0mm |
| Thread Size | M6 |
| Material | A2 Stainless Steel |
| Thread Length | 11.0mm |
| Head Diameter | 13.0mm |
| Head Height | 5.5mm |
| Drive | H4 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M6 (8mm) x 6mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
A practical choice for serviceable pivot joints, this M6 (8mm) x 6mm Socket Shoulder Screw delivers a plain shoulder area with a socket drive for tidy installation. The format makes it a reliable shoulder bolt for pivots for controlled location work.
Made from A2 stainless steel, it provides a neat finish for visible assemblies, service panels and engineering equipment. It provides a compact way to combine spacing, location and fastening within one mechanical component.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- HVAC equipment manufacture
- Duct access hardware
- Fan guard assemblies
- Service panel fixings
M6 (8mm) x 6mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 8mm
- Shoulder Length: 6mm
- Thread Size: M6
- Thread Length: 11mm
- Head Diameter: 13mm
- Head Height: 5.5mm
- Drive: H4
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
Browse Related Fastener Ranges
View our full Socket Shoulder Bolts ISO 7379 range. You can also browse our wider Shoulder Bolts category and Bolts and Screws collection.
