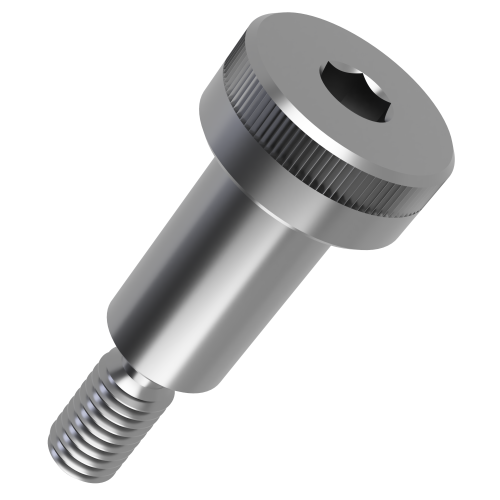

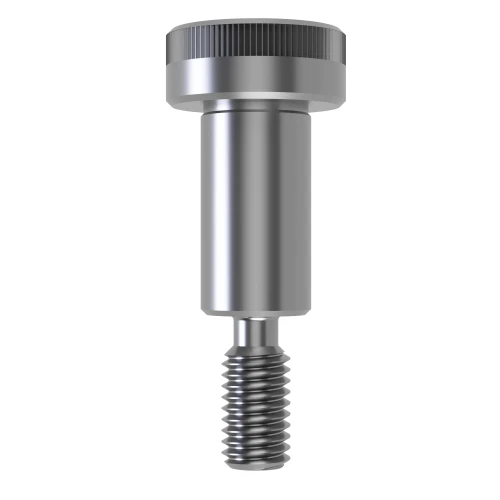

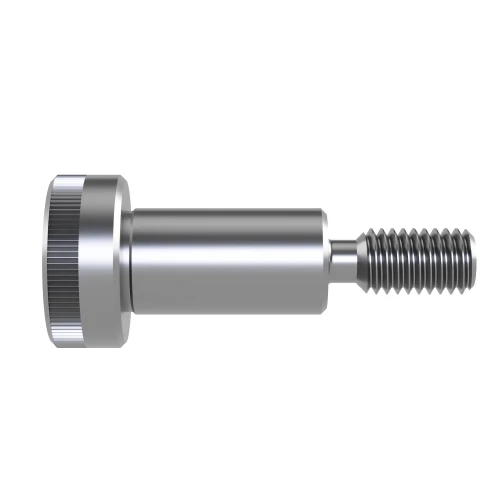

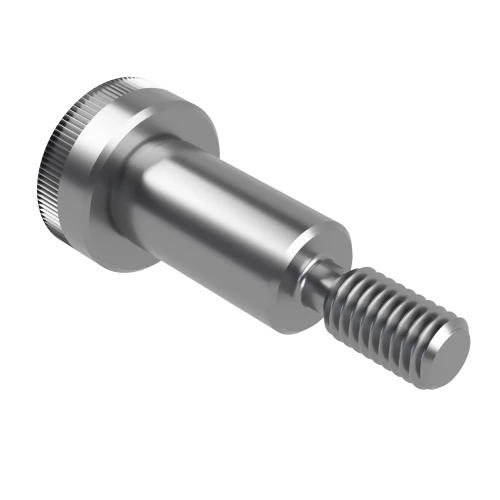

M6 (8mm) x 16mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £11.97 | £14.37 |
| 10 - 24 | £8.98 | £10.78 |
| 25 - 49 | £8.23 | £9.88 |
| 50 - 99 | £7.48 | £8.98 |
| 100 - 499 | £5.99 | £7.19 |
| 500 + | £5.24 | £6.29 |
Product Specification
| Shoulder Diameter | 8.0mm |
| Shoulder Length | 16.0mm |
| Thread Size | M6 |
| Material | A2 Stainless Steel |
| Thread Length | 11.0mm |
| Head Diameter | 13.0mm |
| Head Height | 5.5mm |
| Drive | H4 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M6 (8mm) x 16mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
Ideal for accurate machine building, this M6 (8mm) x 16mm Socket Shoulder Screw combines a smooth 8mm shoulder, H4 socket drive and A2 Stainless Steel construction. The format makes it a reliable shoulder screw for guides for controlled location work.
The A2 stainless steel material suits equipment exposed to moisture, handling or regular cleaning without moving to a specialist marine grade. With a ground shoulder profile and f9 tolerance, it supports repeatable fitment in holes designed for accurate movement.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- OEM mechanical builds
- Roller and lever assemblies
- Control cabinet mechanisms
- Serviceable equipment joints

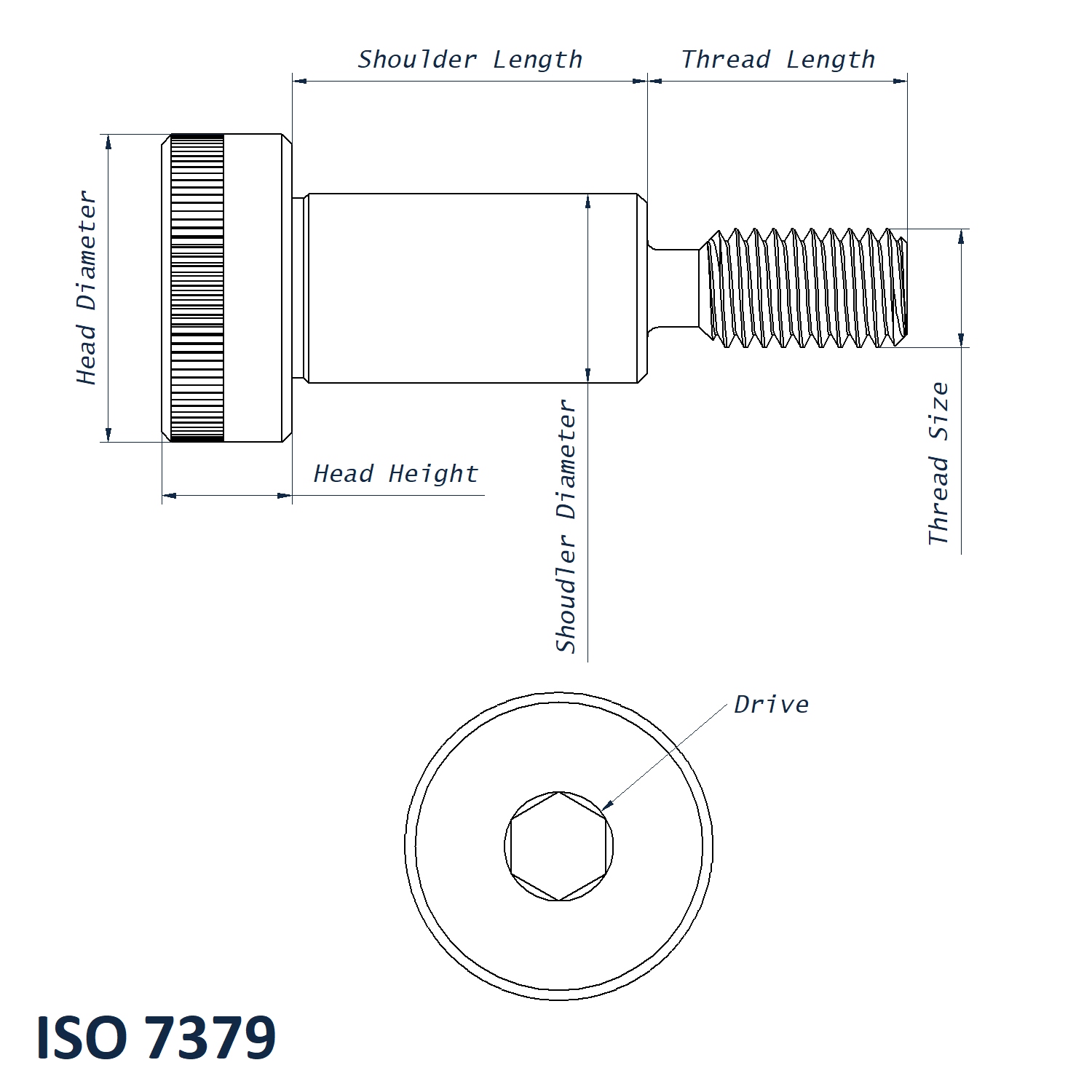

M6 (8mm) x 16mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 8mm
- Shoulder Length: 16mm
- Thread Size: M6
- Thread Length: 11mm
- Head Diameter: 13mm
- Head Height: 5.5mm
- Drive: H4
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
