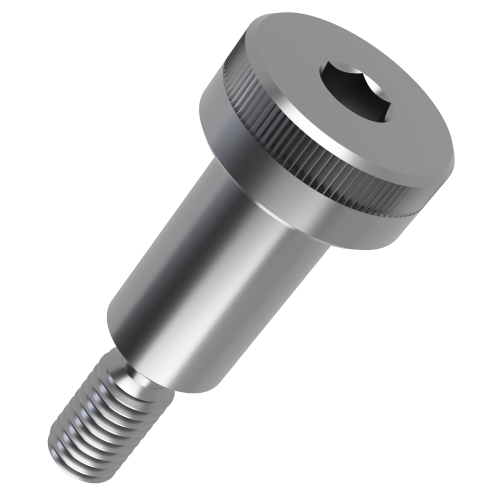

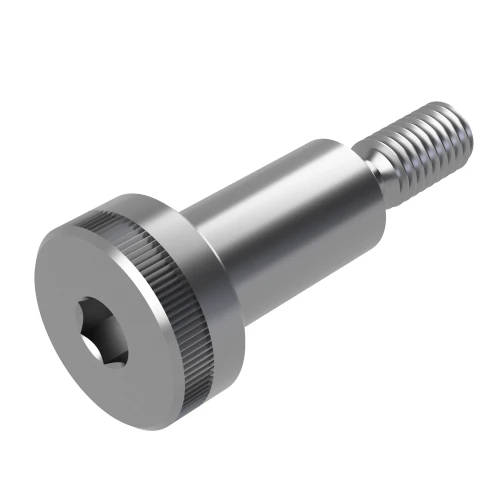

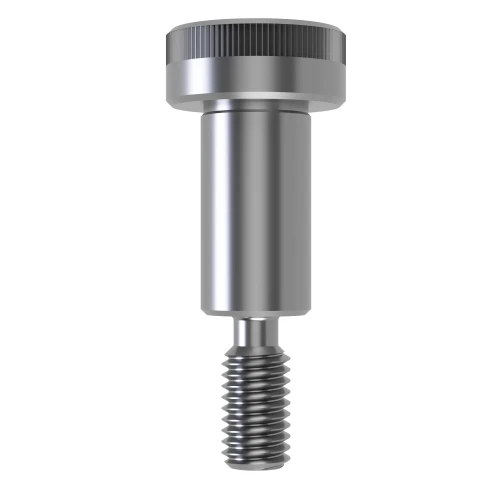

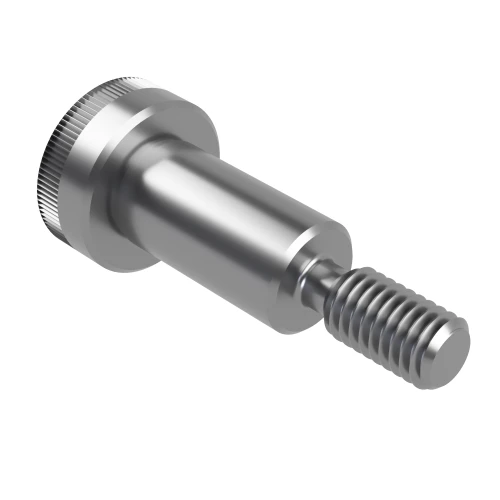

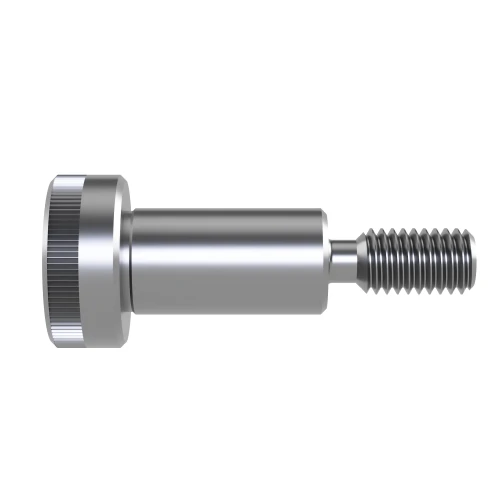

M6 (8mm) x 50mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £19.75 | £23.70 |
| 10 - 24 | £14.82 | £17.78 |
| 25 - 49 | £13.57 | £16.29 |
| 50 - 99 | £12.34 | £14.81 |
| 100 - 499 | £9.88 | £11.85 |
| 500 + | £8.64 | £10.37 |
Product Specification
| Shoulder Diameter | 8.0mm |
| Shoulder Length | 50.0mm |
| Thread Size | M6 |
| Material | A2 Stainless Steel |
| Thread Length | 11.0mm |
| Head Diameter | 13.0mm |
| Head Height | 5.5mm |
| Drive | H4 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00
M6 (8mm) x 50mm Socket Shoulder Screw (ISO 7379) | A2 Stainless Steel
For brackets, rollers and guide points, this M6 (8mm) x 50mm Socket Shoulder Screw offers a defined shoulder section and secure M6 threaded fixing. This helps it work as a location shoulder screw in compact mechanical designs.
Made from A2 stainless steel, it provides a neat finish for visible assemblies, service panels and engineering equipment. The shoulder diameter provides location accuracy while the threaded portion delivers reliable pull-down into the mating part.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Electrical enclosure hardware
- Control panel hinges
- Removable service covers
- Guided access mechanisms
M6 (8mm) x 50mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 8mm
- Shoulder Length: 50mm
- Thread Size: M6
- Thread Length: 11mm
- Head Diameter: 13mm
- Head Height: 5.5mm
- Drive: H4
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: A2 Stainless Steel
