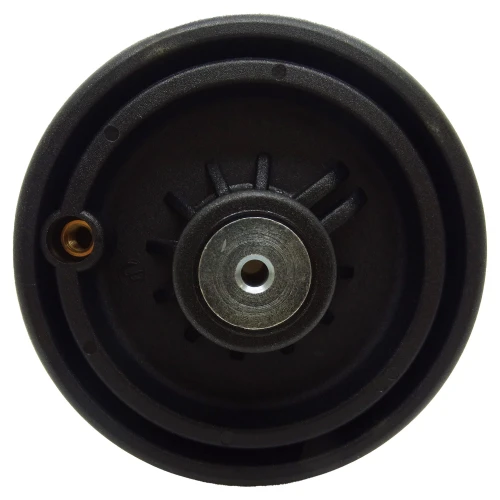

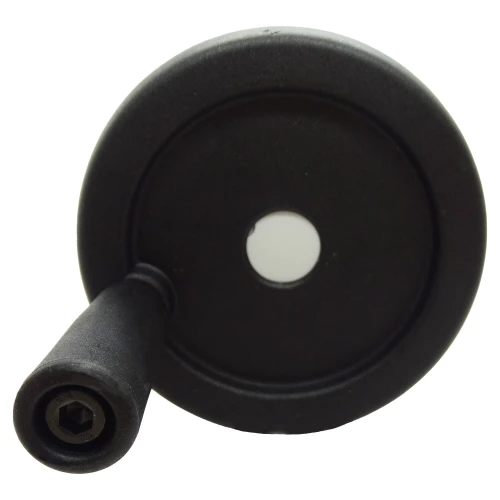

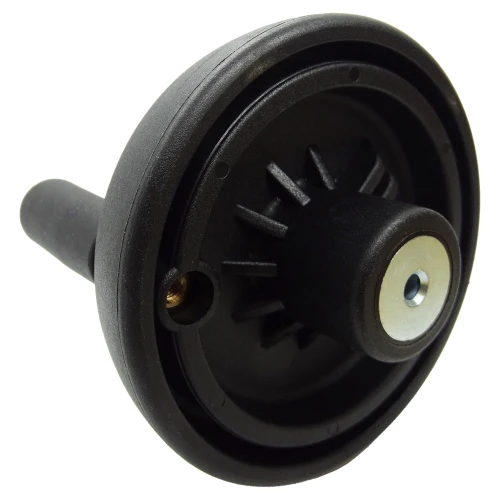

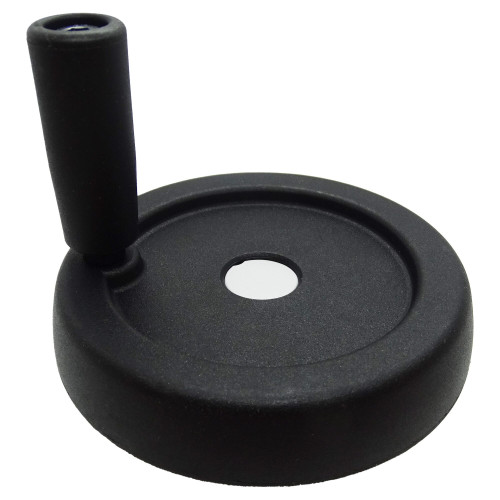

100mm x 39mm Solid Control Handwheel - Fixed Handle

100mm x 39mm Solid Control Handwheel - Fixed Handle | Vital Parts - HW1020

Our 100mm x 39mm Solid Control Handwheel - Fixed Handle is ideal for machines and equipment requiring direct, palm-controlled operation with a fixed handle for added torque. This model features a 100mm handwheel diameter and a 39mm overall height. Its fixed handle, 55mm tall, ensures positive user grip. Made from strong Glass Filled Nylon with a durable BZP thread insert for long-life use.

What Is a Solid Control Handwheel?

Solid control handwheels are used for manually operating machinery components. The fixed handle allows users to apply rotation consistently, ideal for setups requiring reliable torque. Unlike spoked models, solid handwheels provide a smooth outer surface, improving aesthetics and palm comfort in confined control panels.

Primary Applications

• Precision Equipment: Ensures safe and repeatable rotational control in compact or enclosed environments.
• Lab & Workshop Machinery: Suitable for manual calibration and positioning mechanisms.
• Industrial Assemblies: Fits machines requiring palm or handle-assisted manual actuation.

Why Choose This Control Handwheel?

Solid Ergonomic Design: The fixed handle combined with a solid body allows precise, comfortable manual control.

Built to Last: The Glass Filled Nylon construction resists wear, while the BZP thread provides a secure mechanical hold.

Adaptable Fit: Features a 30mm shank diameter, 34mm shoulder height and 16mm bore for secure mounting.

Key Features and Benefits

• Handwheel Diameter: 100mm
• Overall Height: 39mm
• Fixed Handle Height: 55mm
• Handle Thickness: 21mm
• Shank Diameter: 30mm
• Shoulder Height: 34mm
• Standard Bore: 16mm
• Style: Fixed Handle
• Colour: Black
• Handwheel Material: Glass Filled Nylon
• Thread Material: BZP

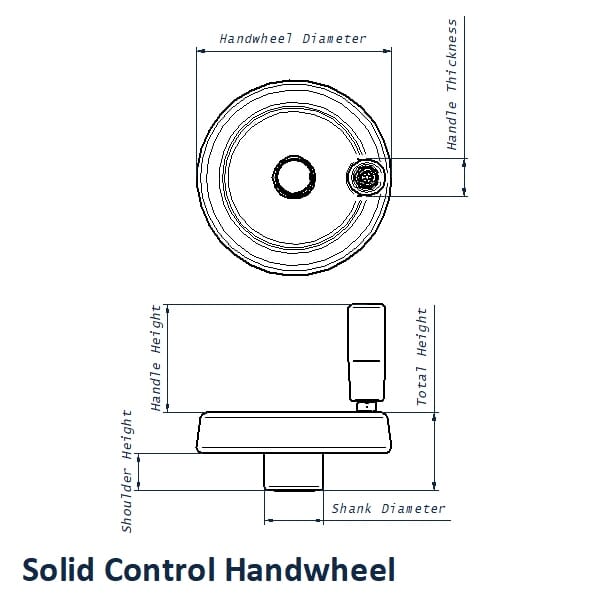

Product Specifications

• Handwheel Diameter: 100mm
• Total Height: 39mm
• Handle Height: 55mm
• Handle Thickness: 21mm
• Shank Diameter: 30mm
• Shoulder Height: 34mm
• Standard Bore: 16mm
• Style: Fixed Handle
• Colour: Black
• Handwheel Material: Glass Filled Nylon
• Thread Material: BZP
• Product Code: HW1020
