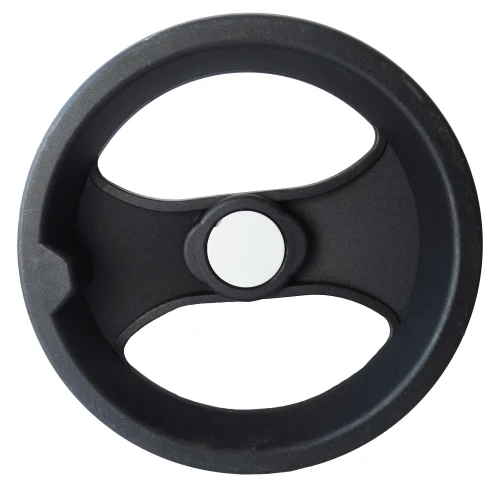

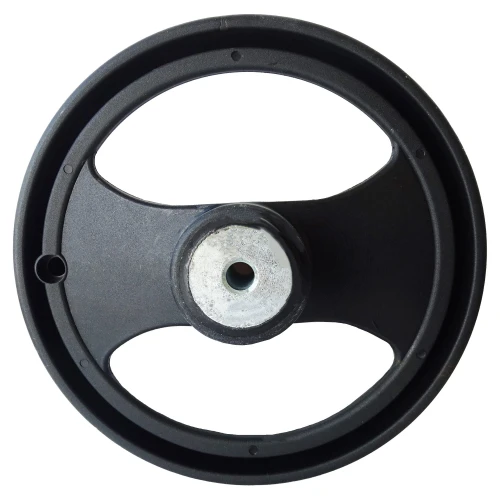

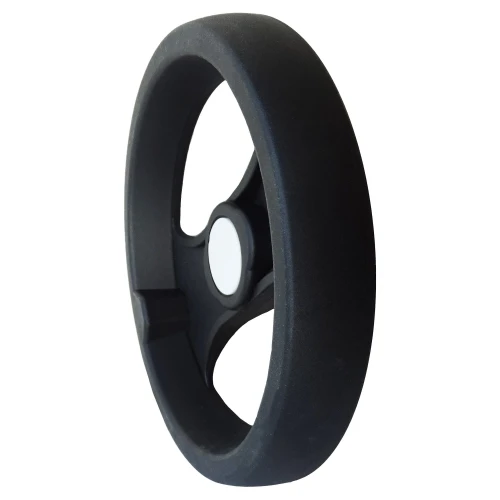

250mm x 70mm Spoked Control Handwheel - No Handle

250mm x 70mm Solid Control Handwheel - No Handle | Vital Parts - HW1014

Our 250mm x 70mm Solid Control Handwheel - No Handle is designed for precision manual control in machinery and assembly environments. Featuring a robust 250mm diameter and 70mm overall height, this solid wheel has no handle, making it ideal for controlled, direct palm operation. It is made from durable Glass Filled Nylon with a BZP thread insert for strength and corrosion resistance.

What Is a Solid Control Handwheel?

Solid control handwheels are engineered for smooth manual adjustment without a rotating handle. The solid body allows for palm-based turning, which is ideal for machinery where compact, low-interference adjustment is required. Often used on lathes, inspection rigs or calibration machinery, these wheels provide ergonomic control in tight or precise settings.

Primary Applications

• Machine Adjustment: Perfect for applications needing tight manual control without rotating handles.
• Measuring Equipment: Used where accurate, smooth positioning is essential.
• Laboratory & Testing: Common in settings where compact control interfaces are necessary.

Why Choose This Control Handwheel?

Compact Design: No handle means the wheel offers a smooth, low-profile adjustment interface.

Reliable Materials: The Glass Filled Nylon body and BZP thread deliver long-term durability and precision performance.

High-Performance Form: Includes a 56mm shank diameter and 44mm shoulder height, paired with a 20mm standard bore for tight-fitting spindle use.

Key Features and Benefits

• Diameter: 250mm
• Overall Height: 70mm
• No handle - solid wheel with ergonomic palm control
• Shank diameter: 56mm and shoulder height: 44mm
• Standard Bore: 20mm
• Material: Glass Filled Nylon with BZP thread insert
• Colour: Black
• Style: No Handle

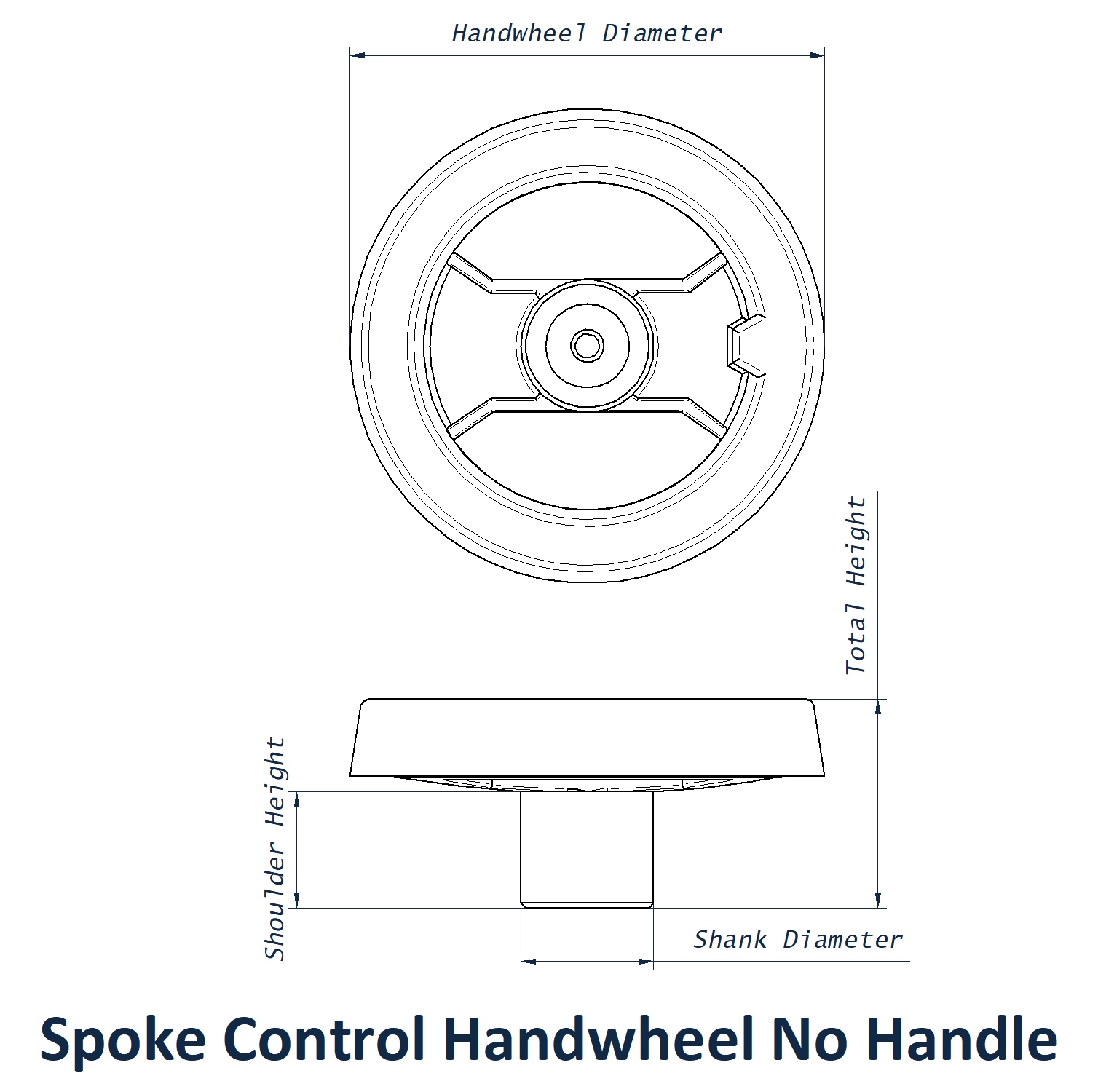

Product Specifications

• Handwheel Diameter: 250mm
• Total Height: 70mm
• Handle Height: No Handle
• Handle Thickness: 32mm
• Shank Diameter: 56mm
• Shoulder Height: 44mm
• Standard Bore: 20mm
• Style: No Handle
• Colour: Black
• Handwheel Material: Glass Filled Nylon
• Thread Material: BZP
• Product Code: HW1014
