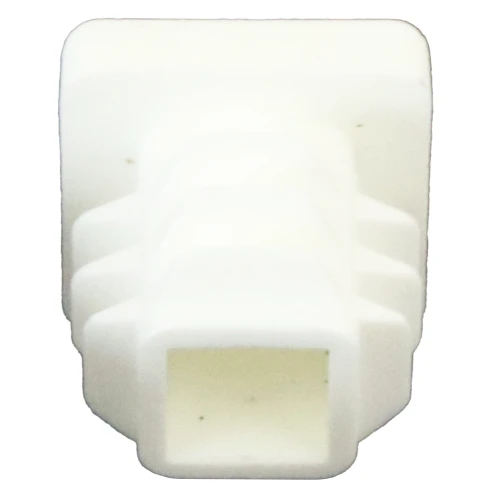

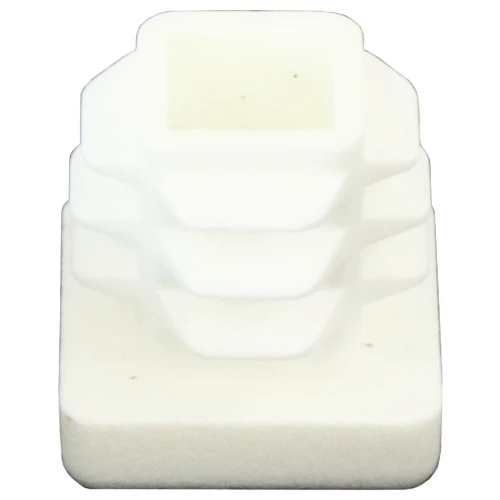

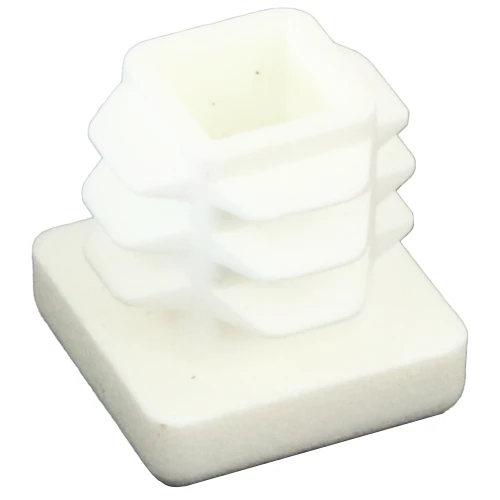

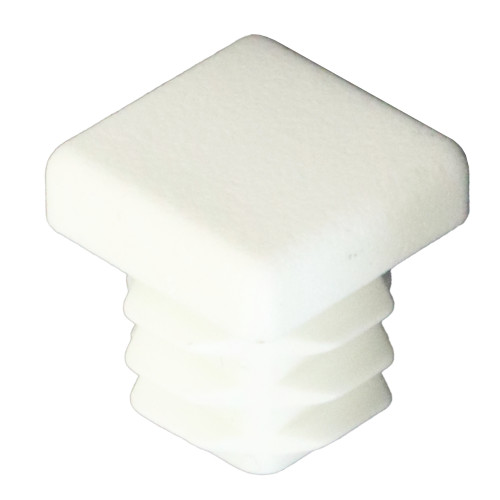

19mm x 19mm Square Tube Insert (For 14-17.4mm Tube) 0.8-2.5mm Wall | White LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 499 | £0.49 | £0.59 |
| 500 - 999 | £0.39 | £0.47 |
| 1000 - 1999 | £0.33 | £0.40 |
| 2000 - 3499 | £0.25 | £0.30 |
| 3500 - 4999 | £0.19 | £0.23 |
| 5000 + | £0.12 | £0.14 |
Product Specification
| Outside Diameter | 19mm x 19mm |
| Wall Thickness | 0.8 - 2.5mm |
| To Fit Tube Size | 14.0-17.4mm |
| Colour | White |
| Head Height | 5mm |
| Insert Length | 11.5mm |
| Material | LDPE |
Frequently Bought Together
Total Price: £0.00
19mm x 19mm Square Tube Insert - 0.8 to 2.5mm Wall - White LDPE
The SQ017W is a white LDPE square tube insert for 19mm x 19mm box section with a wall thickness range of 0.8 to 2.5mm. White is the most specified colour for domestic furniture, clinical environments and point-of-sale display systems using white powder-coated 19mm square tube. The insert provides a matching clean finish to the tube end - 5mm head height, 11.5mm insert length, ribbed push-fit design. Used extensively in kitchen furniture manufacturing, medical equipment frames and high-street retail display systems where a white overall finish is required.
Common Applications
- White domestic furniture and kitchen cabinet frame tube ends
- Clinical and medical equipment frame tube end finishing
- Point-of-sale and retail display system white tube end caps
- 19mm SHS white tube end protection in domestic manufacture

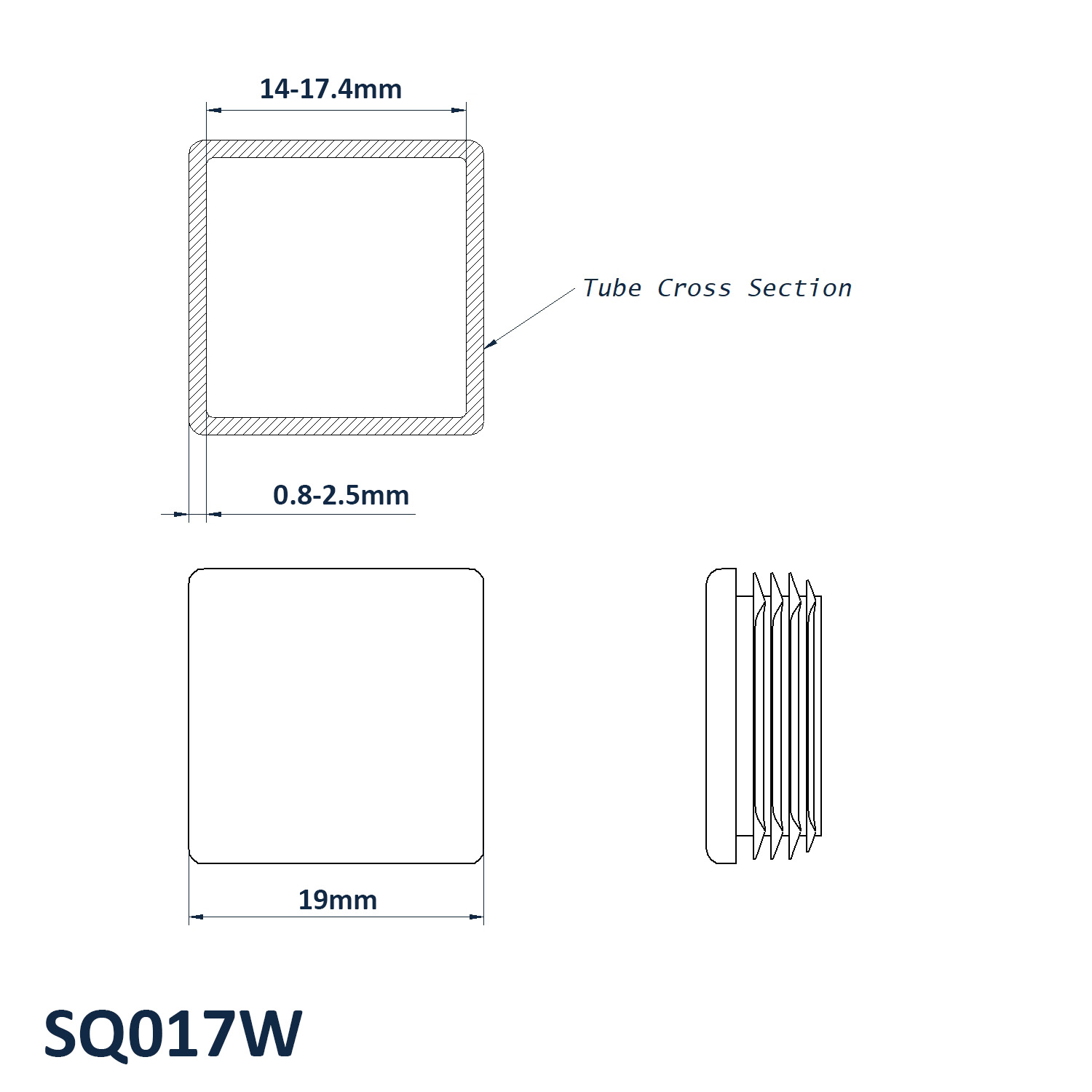

19mm x 19mm Square Tube Insert Dimensions
- Outside Diameter: 19mm x 19mm
- Wall Thickness: 0.8 - 2.5mm
- To Fit Tube Size: 14.0-17.4mm
- Head Height: 5mm
- Insert Length: 11.5mm
- Material: LDPE (Low-Density Polyethylene)
- Colour: White
- Fitting: Push Fit
- Design: Ribbed walls for secure grip across multiple wall thicknesses
View our full square tube insert range or browse our complete tube insert collection.
