Stainless Steel Adjustable Feet - ADJ355
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £27.29 | £32.75 |
| 2 - 24 | £24.84 | £29.81 |
| 25 - 49 | £22.60 | £27.12 |
| 50 - 99 | £20.57 | £24.68 |
| 100 + | £18.72 | £22.46 |
Product Specification
| Thread Size | M16 |
| Thread Length | 180mm |
| Base Diameter | 50mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

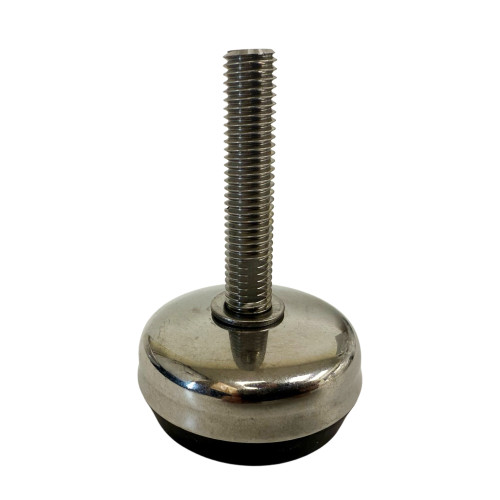

M16 x 180mm Stainless Steel Adjustable Foot | 50mm Base Diameter | A2 Stainless Steel
This M16 x 180mm stainless steel adjustable foot with a rubber base is selected for production machinery bases that require a strong threaded foot and wider floor contact than compact support options.
The 50mm base diameter and 23mm base height give this size a balanced footprint. The 180mm M16 thread supports deeper mounting locations and allows gradual levelling across multiple machine feet.
Common Applications
- Production machinery bases
- Industrial equipment with stainless support legs
- Multi-foot frames that need careful height matching

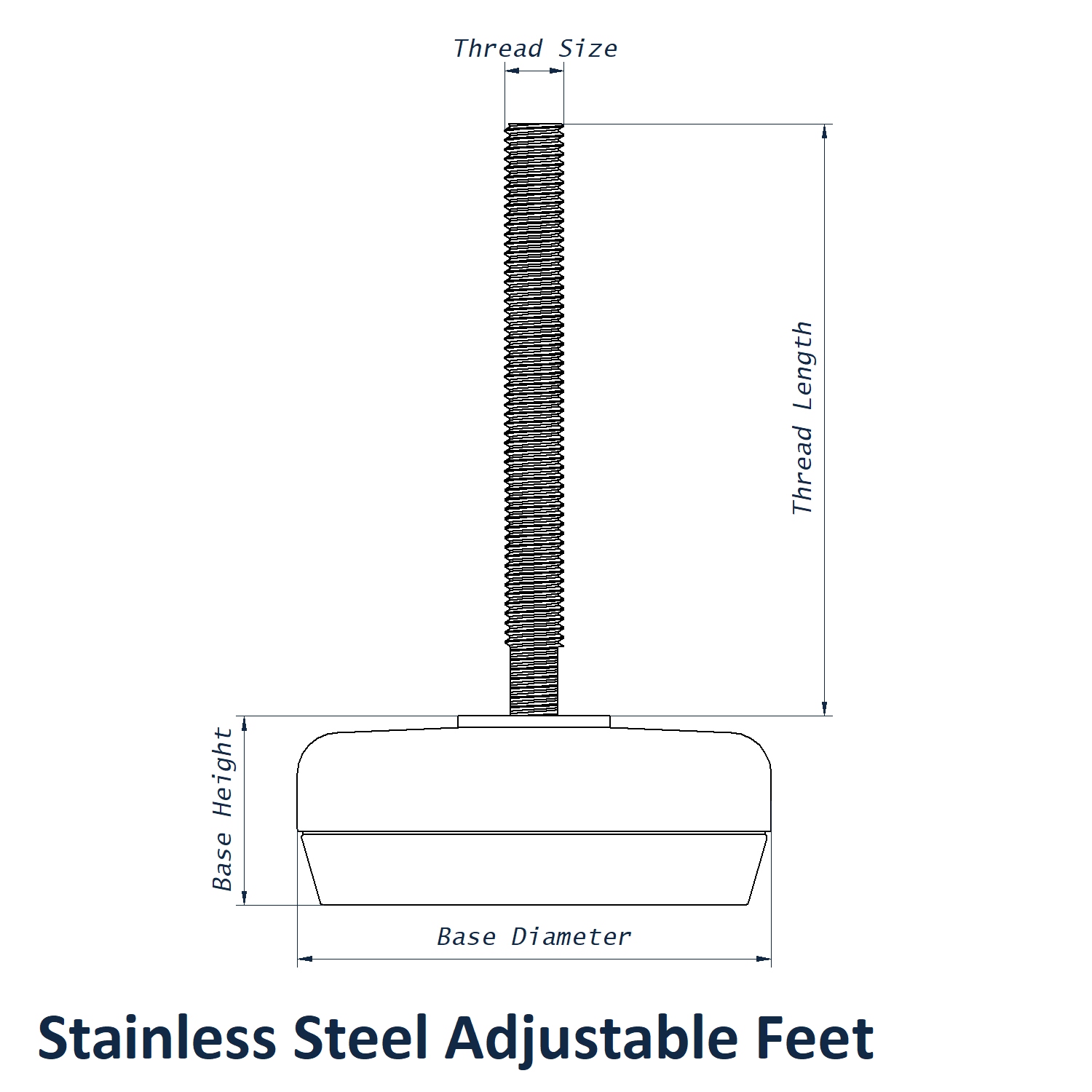

M16 x 180mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M16
- Thread Length: 180mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Installation Tip
Use this foot when the machine base needs both M16 thread strength and extra reach through a deeper support leg.
Compatible T Nuts
When this foot is being fitted into timber, panel work or compatible frame sections, matching T Nuts can provide a secure threaded insert for the M16 fixing.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
