Stainless Steel Adjustable Feet - ADJ357
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £40.09 | £48.11 |
| 2 - 24 | £36.48 | £43.78 |
| 25 - 49 | £33.20 | £39.84 |
| 50 - 99 | £30.21 | £36.25 |
| 100 + | £27.49 | £32.99 |
Product Specification
| Thread Size | M16 |
| Thread Length | 310mm |
| Base Diameter | 50mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

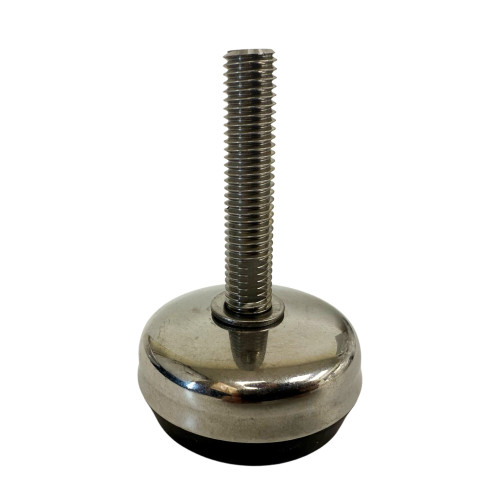

M16 x 310mm Stainless Steel Adjustable Foot | 50mm Base Diameter | A2 Stainless Steel
Where tall frame support is the priority, this M16 x 310mm stainless steel adjustable foot with a rubber support base is specified for tall frame support where a very long M16 thread is required below a stainless machine or workstation leg.
The A2 Stainless Steel construction, 50mm base diameter and 23mm base height help it perform as a long-stem levelling component. The 310mm stem provides extended adjustment for special builds and equipment installed above floor services or drainage channels.
Common Applications
- Tall stainless machinery frames
- Raised workstations above floor services
- Special equipment builds requiring long levelling stems

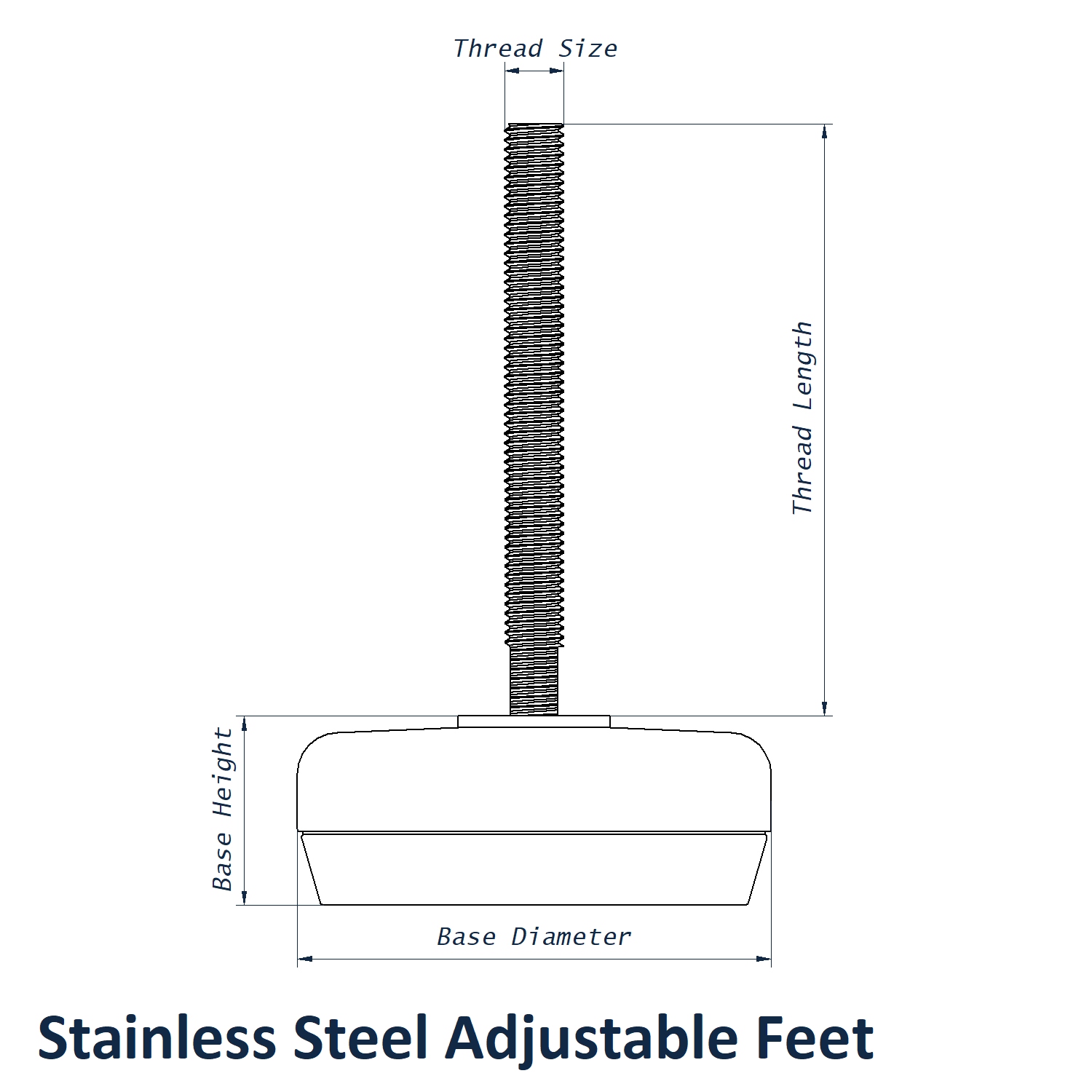

M16 x 310mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M16
- Thread Length: 310mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Selection Note
This is the right style of foot when the supporting thread must reach well into the frame while still providing floor-level adjustment.
Compatible T Nuts
If the foot is being used with furniture-style framing or fabricated supports, select a compatible T Nut where the design calls for an internal threaded anchor.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
