Stainless Steel Adjustable Feet - ADJ356
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £29.55 | £35.46 |
| 2 - 24 | £26.89 | £32.27 |
| 25 - 49 | £24.48 | £29.37 |
| 50 - 99 | £22.27 | £26.72 |
| 100 + | £20.27 | £24.32 |
Product Specification
| Thread Size | M16 |
| Thread Length | 230mm |
| Base Diameter | 50mm |
| Material | A2 Stainless Steel |
| Base Height | 23mm |
Frequently Bought Together
Total Price: £0.00

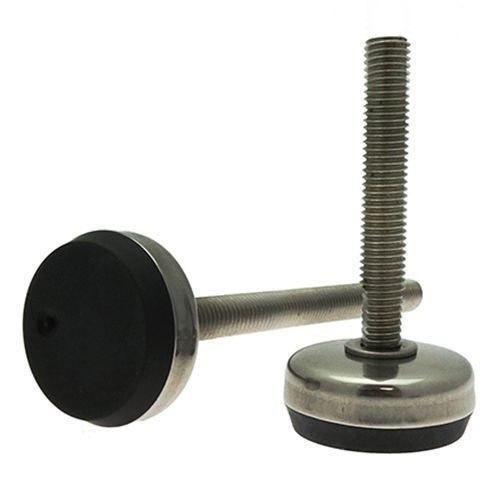

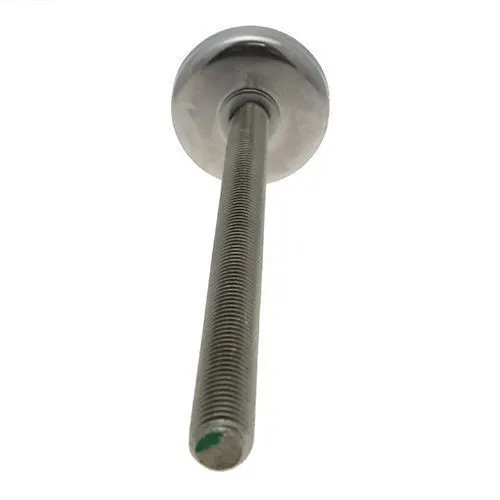

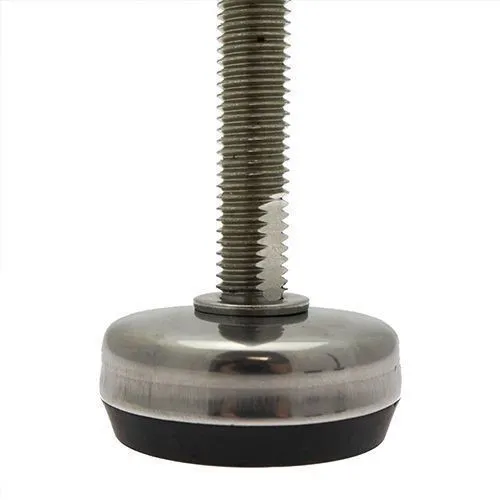

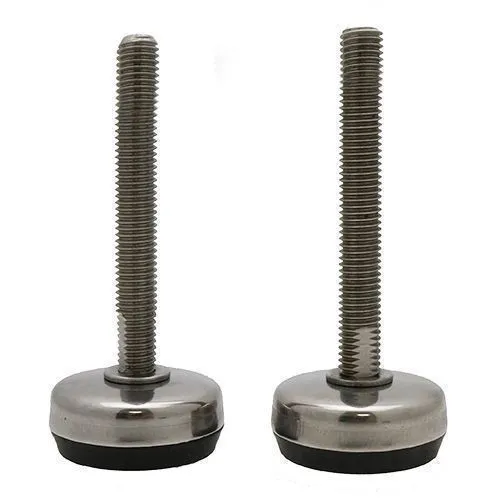

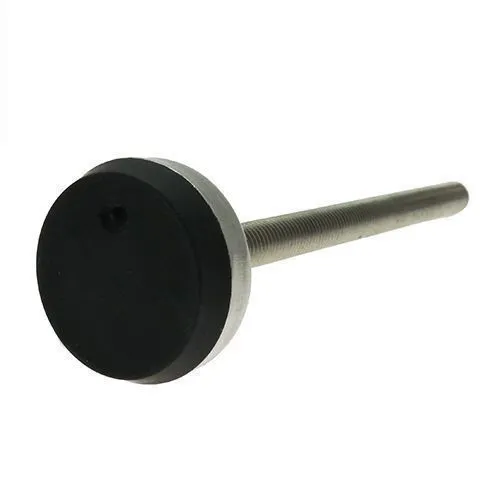

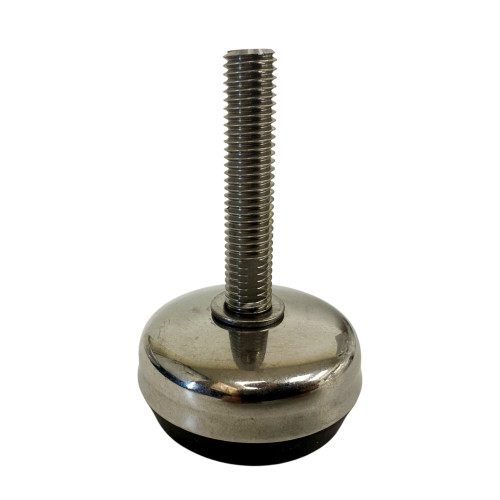

M16 x 230mm Stainless Steel Adjustable Foot | 50mm Base Diameter | A2 Stainless Steel
For processing equipment levelling, this M16 x 230mm stainless steel adjustable foot with rubber floor contact is made for processing equipment where a long M16 adjustable stem is needed beneath a wider 50mm base.
Its M16 thread, 230mm thread length and A2 Stainless Steel construction provide robust threaded support. The 230mm thread length is particularly useful for machinery with raised frames, high inserts or larger levelling corrections.
Common Applications
- Processing equipment with raised stainless frames
- Height adjustable machinery supports
- Production cells needing extended levelling travel

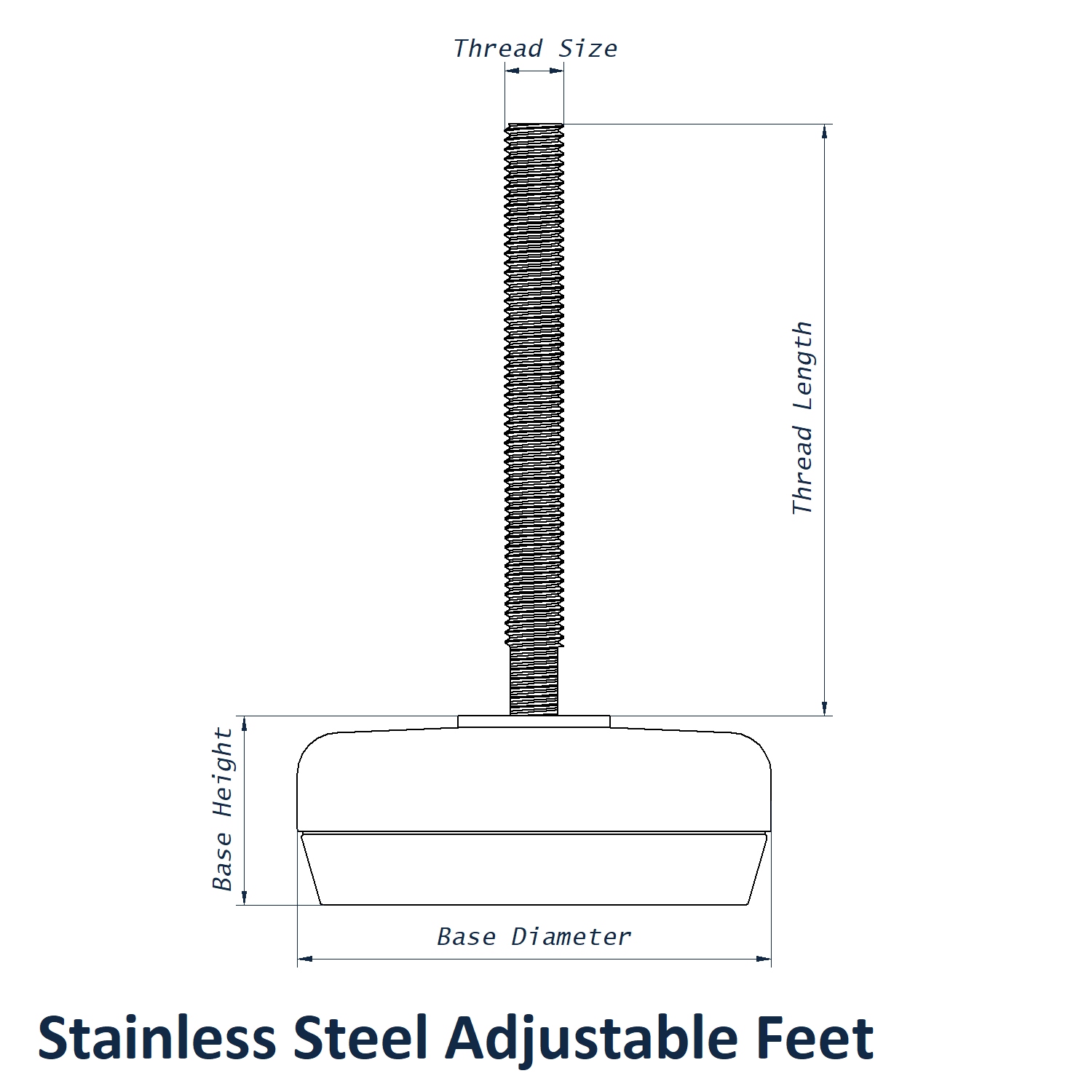

M16 x 230mm Stainless Steel Adjustable Foot Dimensions
- Base Diameter: 50mm
- Thread Size: M16
- Thread Length: 230mm
- Base Height: 23mm
- Material: A2 Stainless Steel
Specification Advice
Choose this long-thread size where a standard stem would not reach the required support height on a heavier frame.
Compatible T Nuts
For assemblies where the M16 thread needs to screw into a replaceable insert rather than a welded boss, matching T Nuts may help create a cleaner fixing point.
View our full range of T Nuts.
View our full Stainless Steel Adjustable Feet range or read our Guide to Adjustable Feet for sizing support.
