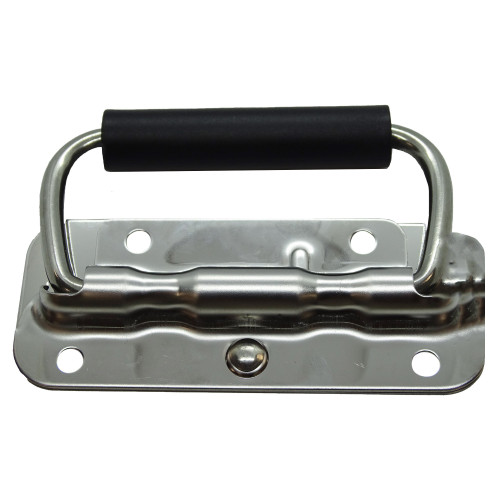

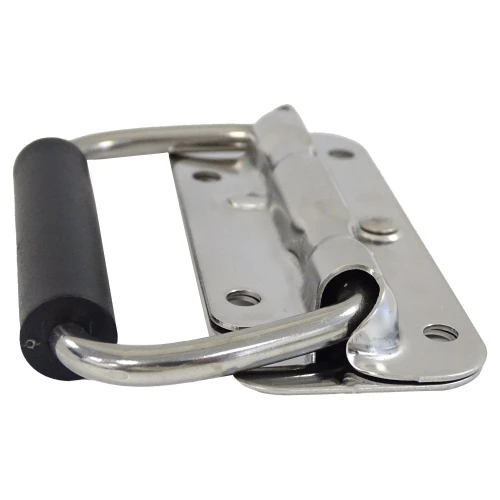

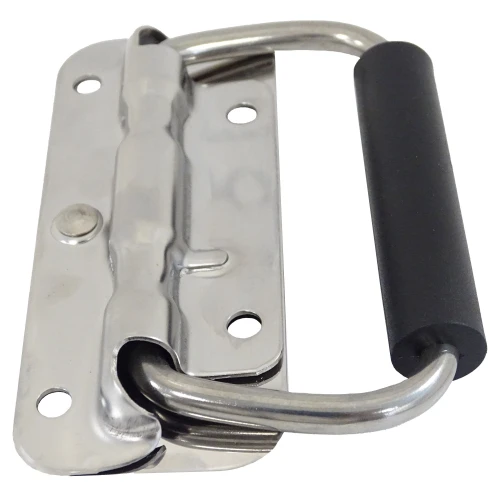

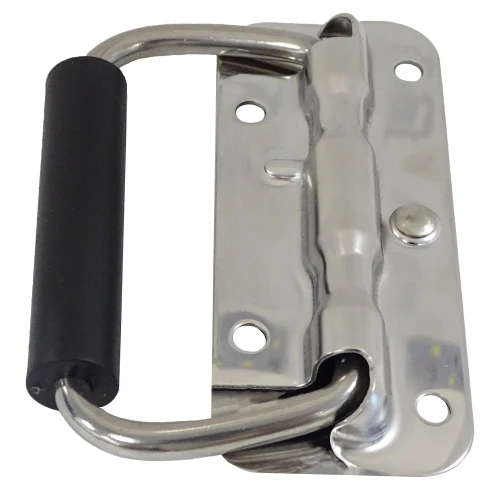

94.5mm x 41.5mm Stainless Steel Spring Loaded Folding Handle
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 9 | £10.26 | £12.31 |
| 10 - 24 | £10.22 | £12.26 |
| 25 - 49 | £10.10 | £12.12 |
| 50 - 99 | £9.87 | £11.84 |
| 100 - 499 | £8.21 | £9.85 |
| 500 + | £5.78 | £6.94 |
Product Stock
| Product Specifications | HAND300 |
|---|---|
| Length | 94.5mm |
| Width | 41.5mm |
| Height | 12.5mm |
| Hole Size | 5mm |
| Mount Material | A2 Stainless Steel |
| Handle Material | Polypropylene |
| Colour | Self-colour & Black |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
94.5mm x 41.5mm Stainless Steel Spring Loaded Folding Handles – Polypropylene Handle | Vital Parts – HAND300
Our Stainless Steel Handles are designed to optimise space on flight and road cases, enclosures and storage. The spring mechanism returns the handle to the mounting plate when it is not in use which reduces snagging risk and helps protect the handle and surrounding equipment.
What are Stainless Steel Spring Loaded Folding Handles?
Theses Stainless Steel Handles are pull handles mounted on a backing plate with an integrated spring that automatically retracts the handle after use. This low profile design prevents unwanted protrusion and is ideal where equipment is frequently moved or stacked.
Key Features:
- Spring return action folds the handle flat to the plate
- A2 (304) stainless steel for corrosion resistance indoors and outdoors
- Space saving low profile to minimise snagging
- Durable construction for frequent handling
- Suitable for screw or bolt fixing
Key Applications and Industries
Ideal for flight cases, road cases, instrument and equipment cases, industrial enclosures, storage trunks, racks and trolleys across events, touring, AV, manufacturing and logistics.

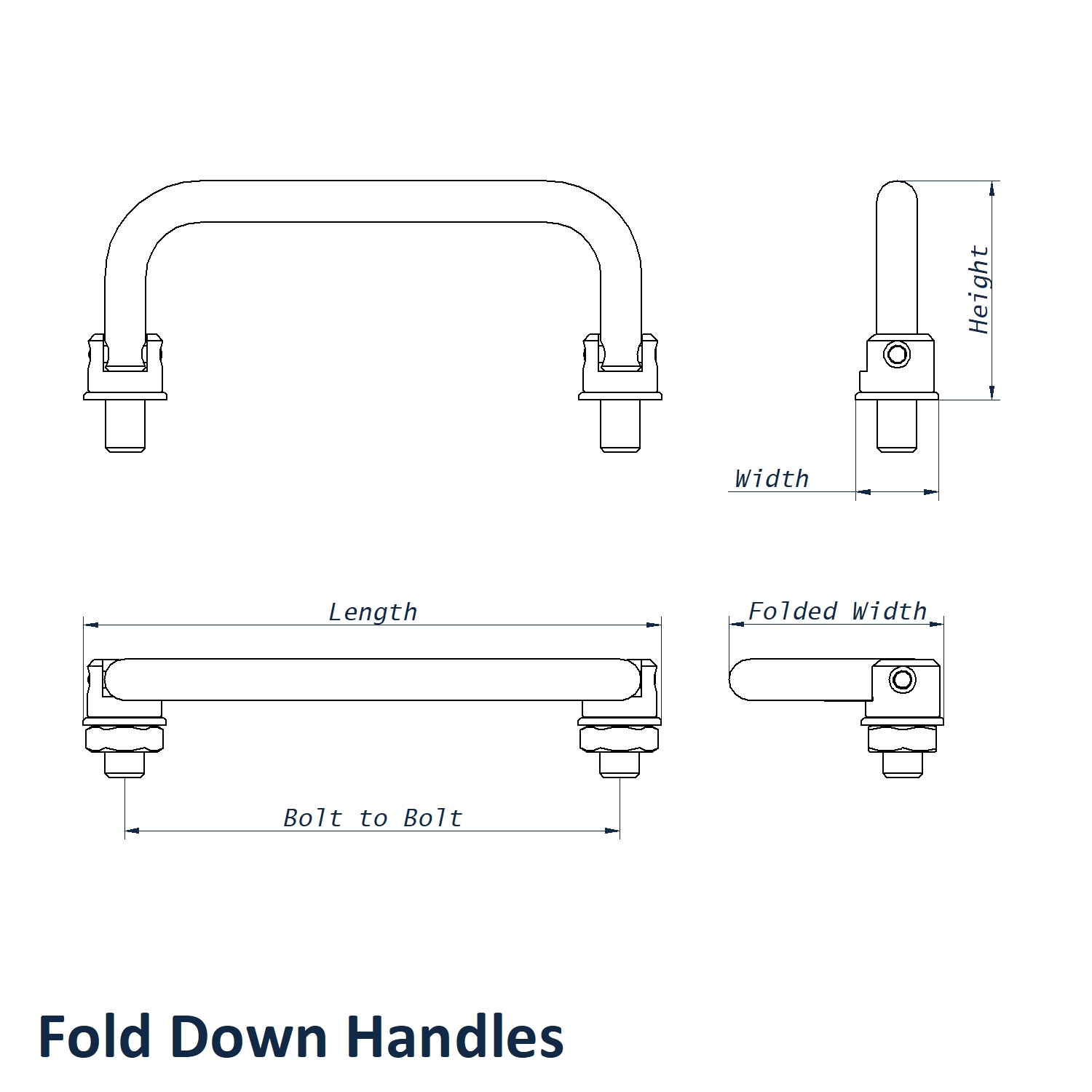

Technical Specifications
- Length: 94.5mm
- Width: 41.5mm
- Height: 12.5mm
- Hole Size: 5mm
- Handle Material: Polypropylene
- Material: A2 stainless steel (also known as 304)
- Operating Temperature Range: -196°C to 300°C
- Action: Spring loaded self return to plate
- Profile: Folding low profile for compact storage
- Fixing: Through fixing with screws or bolts
Benefits:
- Improves safety by reducing protrusions that catch or snag
- Corrosion resistant for long service life
- Saves space during storage and transit
- Reliable grip for frequent handling
Installation
- Mark the mounting holes on the surface
- Secure the handle using your preferred fastener (recommended: Part Threaded Coach Bolt DIN 603)
- Fasten the opposing side with a nut (recommended: Full Hex Nut DIN 934)
Why Buy from Vital Parts?
At Vital Parts we supply high quality stainless steel folding handles engineered for dependable performance with a clean low profile finish suitable for demanding environments.
- Fast UK delivery on stocked options
- Consistent quality from trusted materials
- Expert support to help specify the correct handle
If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
