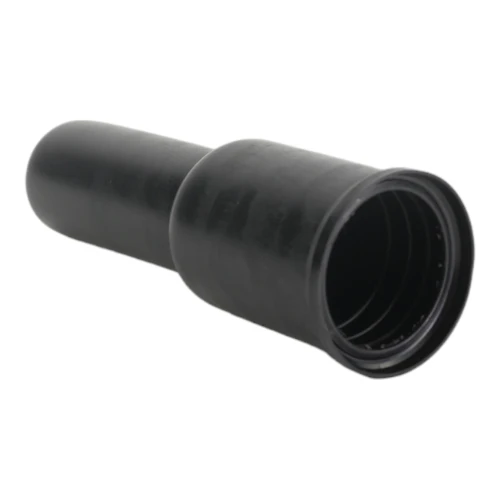

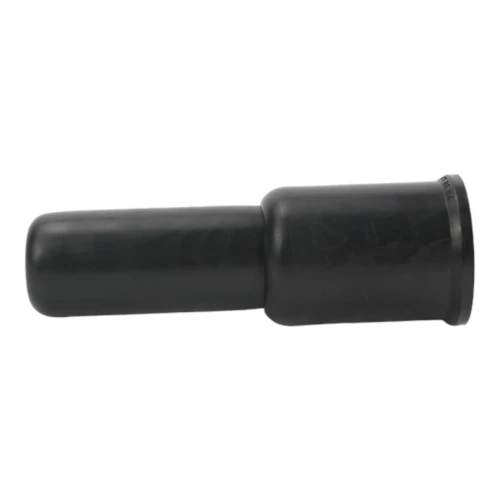

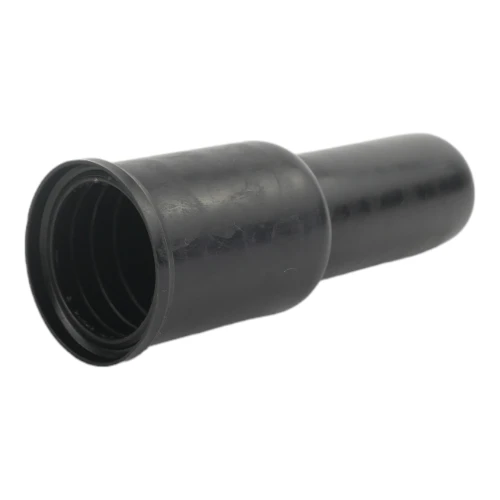

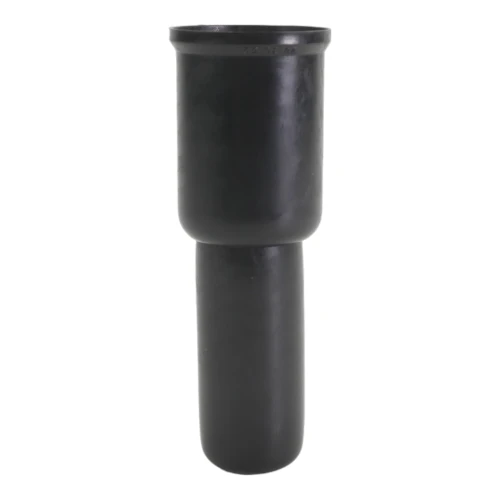

M12 (65mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 26.1mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.49 | £1.79 |
| 100 - 499 | £1.12 | £1.34 |
| 500 - 999 | £0.99 | £1.19 |
| 1000 + | £0.82 | £0.98 |
£1.79 / each
.png)
Product Specification
| Thread Size | M12 |
| Nut Across Flats | 19mm |
| Inside Height | 65mm |
| Outside Diameter | 26.1mm |
| Washer Diameter | 24.0mm |
| Washer Thickness | 2.5mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | Yes |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M12 x 65mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 26.1mm OD | Black LDPE
Designed for M12 assemblies with a 65mm internal height, this M12 telescopic nut cap gives extended thread coverage where a standard low profile cap would leave the bolt projection exposed.
The telescopic design is useful where stud lengths vary, as it can cover a longer projection without leaving excess empty space around the fixing. Internal ribs help increase grip on installation while the clamping edge seats under the nut chamfer. It is sized for a 19mm nut across flats and is designed to work with a 24mm washer diameter.
What Are Telescopic Thread Protection Nut and Washer Caps?
Telescopic nut and washer caps are push-fit protective covers used where the stud or bolt projects beyond the nut. On this M12 version, the taller body helps cover the nut, washer and exposed thread while the internal ribs assist grip during fitting.
Common Applications
- Covering exposed threads on road guardrail fixings
- Protecting bolted joints on pedestrian barriers
- Finishing M12 nut and washer assemblies on exposed frames
- Reducing snag points on maintenance access frames

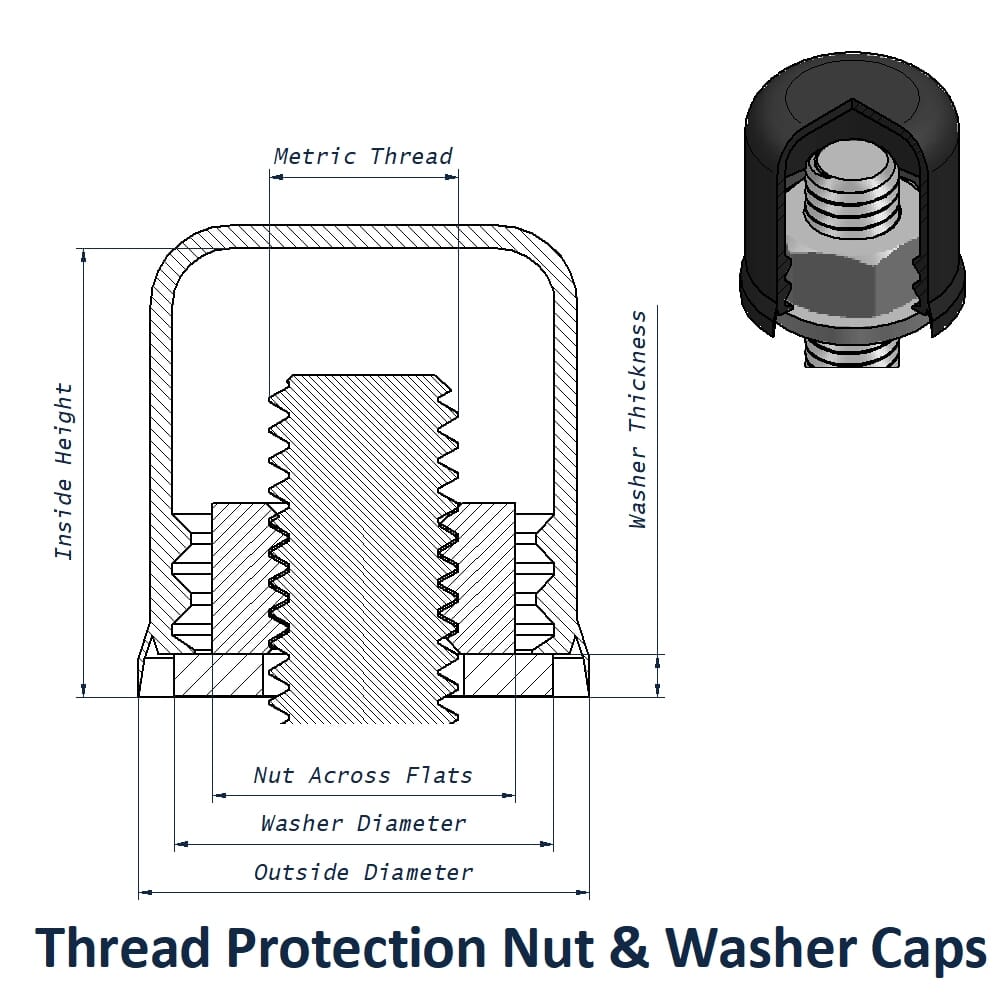

M12 x 65mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M12
- Nut Across Flats: 19mm
- Inside Height: 65mm
- Outside Diameter: 26.1mm
- Washer Diameter: 24mm
- Washer Thickness: 2.5mm
- Telescopic: Yes
- Lock Nut Suitable: Yes
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
If you are matching these caps to an existing nut, washer and stud projection, our team can help check the key dimensions before you order. For sizing advice or trade quantities, call 01233 713581.
