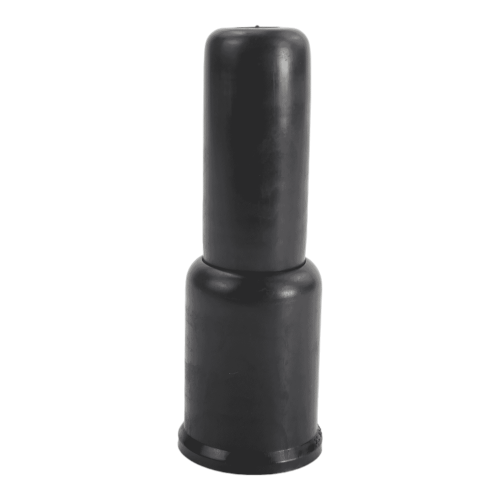

M33 (195mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 64.2mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £4.88 | £5.86 |
| 50 - 99 | £4.69 | £5.63 |
| 100 - 249 | £4.52 | £5.42 |
| 250 + | £4.43 | £5.32 |
Product Specification
| Thread Size | M33 |
| Nut Across Flats | 50mm |
| Inside Height | 195mm |
| Outside Diameter | 64.2mm |
| Washer Diameter | 60.0mm |
| Washer Thickness | 5.0mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | Yes |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M33 x 195mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 64.2mm OD | Black LDPE
Designed for M33 assemblies with a 195mm internal height, this M33 exposed thread cap gives extended thread coverage where a standard low profile cap would leave the bolt projection exposed.
The telescopic design is useful where stud lengths vary, as it can cover a longer projection without leaving excess empty space around the fixing. Internal ribs help increase grip on installation while the clamping edge seats under the nut chamfer. It is sized for a 50mm nut across flats and is designed to work with a 60mm washer diameter.
What Are Telescopic Thread Protection Nut and Washer Caps?
Telescopic nut and washer caps are push-fit protective covers used where the stud or bolt projects beyond the nut. On this M33 version, the taller body helps cover the nut, washer and exposed thread while the internal ribs assist grip during fitting.
Common Applications
- Covering protruding threads on construction frames
- Finishing support brackets and base plates
- Protecting fixings during site installation
- Reducing sharp exposed edges around public areas
M33 x 195mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M33
- Nut Across Flats: 50mm
- Inside Height: 195mm
- Outside Diameter: 64.2mm
- Washer Diameter: 60mm
- Washer Thickness: 5.0mm
- Telescopic: Yes
- Lock Nut Suitable: Yes
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
If you are matching these caps to an existing nut, washer and stud projection, our team can help check the key dimensions before you order. For sizing advice or trade quantities, call 01233 713581.
