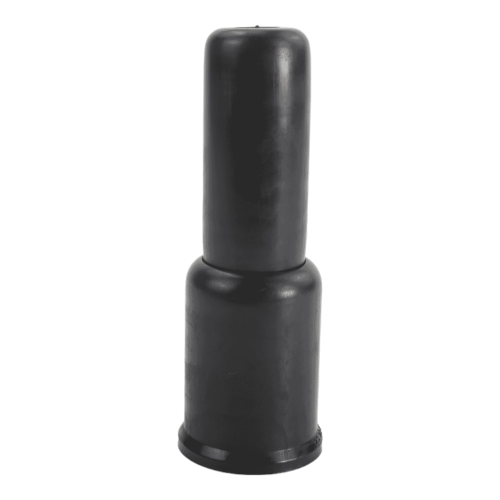

M36 (295mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 70.2mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £8.38 | £10.05 |
| 50 - 99 | £8.06 | £9.67 |
| 100 - 249 | £7.76 | £9.31 |
| 250 + | £7.62 | £9.14 |
Product Specification
| Thread Size | M36 |
| Nut Across Flats | 55mm |
| Inside Height | 295mm |
| Outside Diameter | 70.2mm |
| Washer Diameter | 66.0mm |
| Washer Thickness | 5.0mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | Yes |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M36 x 295mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 70.2mm OD | Black LDPE
Suitable for assemblies with larger exposed fastener lengths, this M36 plastic nut cover is designed to fit over the nut and washer while leaving enough space for the projecting stud.
A taller cap body is especially helpful on long bolt projections, where a standard DIN 125 washer cap may not fully cover the threaded section. This protects the thread from dirt ingress and accidental impact. The 5.0mm washer thickness detail should be checked against the assembly before ordering for the most secure fit.
What Are Telescopic Thread Protection Nut and Washer Caps?
This style of bolt projection cap is designed to snap over the hex nut and washer after tightening. The clamping edge sits beneath the nut chamfer while the ribbed interior helps hold the cap securely in place.
Common Applications
- Protecting control cabinet mounting bolts
- Covering long threaded studs on electrical equipment
- Improving the finish of external enclosure fixings
- Reducing contact risk around service panels
M36 x 295mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M36
- Nut Across Flats: 55mm
- Inside Height: 295mm
- Outside Diameter: 70.2mm
- Washer Diameter: 66mm
- Washer Thickness: 5.0mm
- Telescopic: Yes
- Lock Nut Suitable: Yes
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
If you are matching these caps to an existing nut, washer and stud projection, our team can help check the key dimensions before you order. For sizing advice or trade quantities, call 01233 713581.
