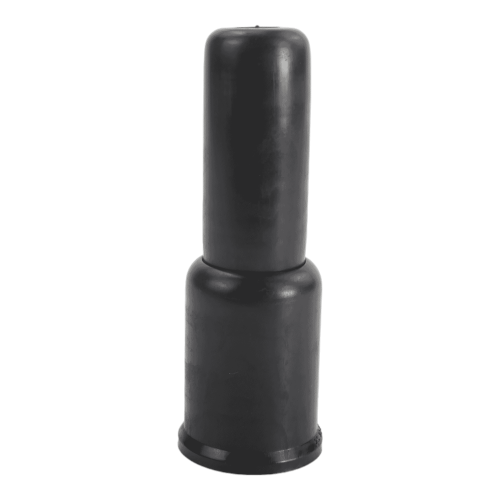

M42 (264mm Height) Telescopic Thread Protection Nut & Washer Cap (DIN 125) - For 84.8mm Washer | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £11.65 | £13.98 |
| 50 - 99 | £11.20 | £13.44 |
| 100 - 249 | £10.79 | £12.95 |
| 250 + | £10.59 | £12.71 |
Product Specification
| Thread Size | M42 |
| Nut Across Flats | 65mm |
| Inside Height | 264mm |
| Outside Diameter | 84.8mm |
| Washer Diameter | 78.0mm |
| Washer Thickness | 7.0mm |
| Material | LDPE |
| Telescopic | Yes |
| Lock Nut Suitable | Yes |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00
M42 x 264mm Telescopic Thread Protection Nut and Washer Cap DIN 125 | 84.8mm OD | Black LDPE
Designed for M42 assemblies with a 264mm internal height, this M42 telescopic washer cap gives extended thread coverage where a standard low profile cap would leave the bolt projection exposed.
The telescopic design is useful where stud lengths vary, as it can cover a longer projection without leaving excess empty space around the fixing. Internal ribs help increase grip on installation while the clamping edge seats under the nut chamfer. It is sized for a 65mm nut across flats and is designed to work with a 78mm washer diameter.
What Are Telescopic Thread Protection Nut and Washer Caps?
Telescopic nut and washer caps are push-fit protective covers used where the stud or bolt projects beyond the nut. On this M42 version, the taller body helps cover the nut, washer and exposed thread while the internal ribs assist grip during fitting.
Common Applications
- Improving the appearance of machinery frames
- Protecting threaded studs on production equipment
- Covering washer areas on fabricated guards
- Supporting maintenance-friendly bolt protection
M42 x 264mm Telescopic Nut and Washer Cap DIN 125 Dimensions
- Thread Size: M42
- Nut Across Flats: 65mm
- Inside Height: 264mm
- Outside Diameter: 84.8mm
- Washer Diameter: 78mm
- Washer Thickness: 7.0mm
- Telescopic: Yes
- Lock Nut Suitable: Yes
- Material: LDPE
- Colour: Black
Related Thread Protection Caps
View our full Telescopic Thread Protection Nut and Washer Caps DIN 125 range for additional thread sizes, heights and washer coverage options.
Product Support and Trade Orders
When the stud projection is difficult to measure or the assembly uses mixed washer sizes, our team can help narrow down the correct cap. You can reach us on 01233 713581.
