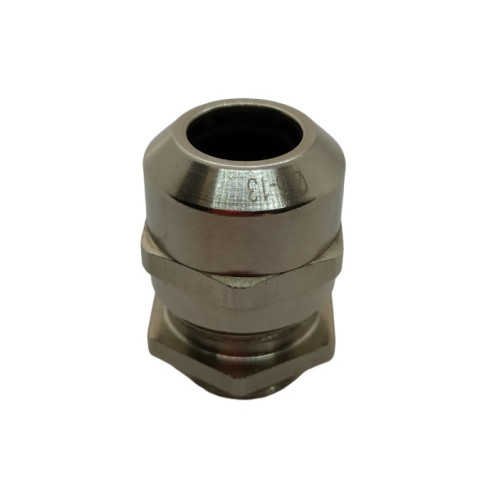

PG 21 Threaded Brass Cable Gland (IP69) 13 - 18mm Cable | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £8.75 | £10.50 |
| 10 - 49 | £7.88 | £9.45 |
| 50 - 99 | £7.00 | £8.40 |
| 100 + | £5.95 | £7.14 |
£10.50 / each
Product Specification
| Thread Size | PG 21 |
| Cable Diameter | 13.0 - 18.0mm |
| Thread Length | 7.0mm |
| Total Length | 29 - 34mm |
| Style | Straight-through |
| Material | Brass |
| Colour/Finish | Nickel Plated |
| IP Rating | IP69 |
Frequently Bought Together
29mm Self Sealing Grommet IP67 – Conical – 14-20mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00
PG 21 Nickel Plated Brass Threaded Cable Gland – 13 - 18mm Cable (IP69)
For machine control panels requiring a PG 21 cable entry, this nickel-plated brass cable gland accommodates 13 - 18mm cable diameters. This Brass Cable Gland combines a 7mm threaded section with a straight-through layout and has a specified IP69 ingress protection rating.
What Are Threaded Brass Cable Glands?
Unlike an unprotected cable cut-out, a threaded gland provides a defined entry fitting for the cable. It is installed using a compatible PG 21 thread and accommodates cable outer diameters within 13 - 18mm. This nickel plated Brass version has the stated IP69 classification.
Common Applications
- Panel building: Install cable entry fittings in panels designed with a PG 21 thread.
- Equipment connections: Route suitable 13 - 18mm cables into electrical equipment casings.
- Control assemblies: Keep cable-entry positions defined on motor control and automation assemblies.
- Electrical installations: Use the specified IP69 gland where a matching ingress protection classification is required.

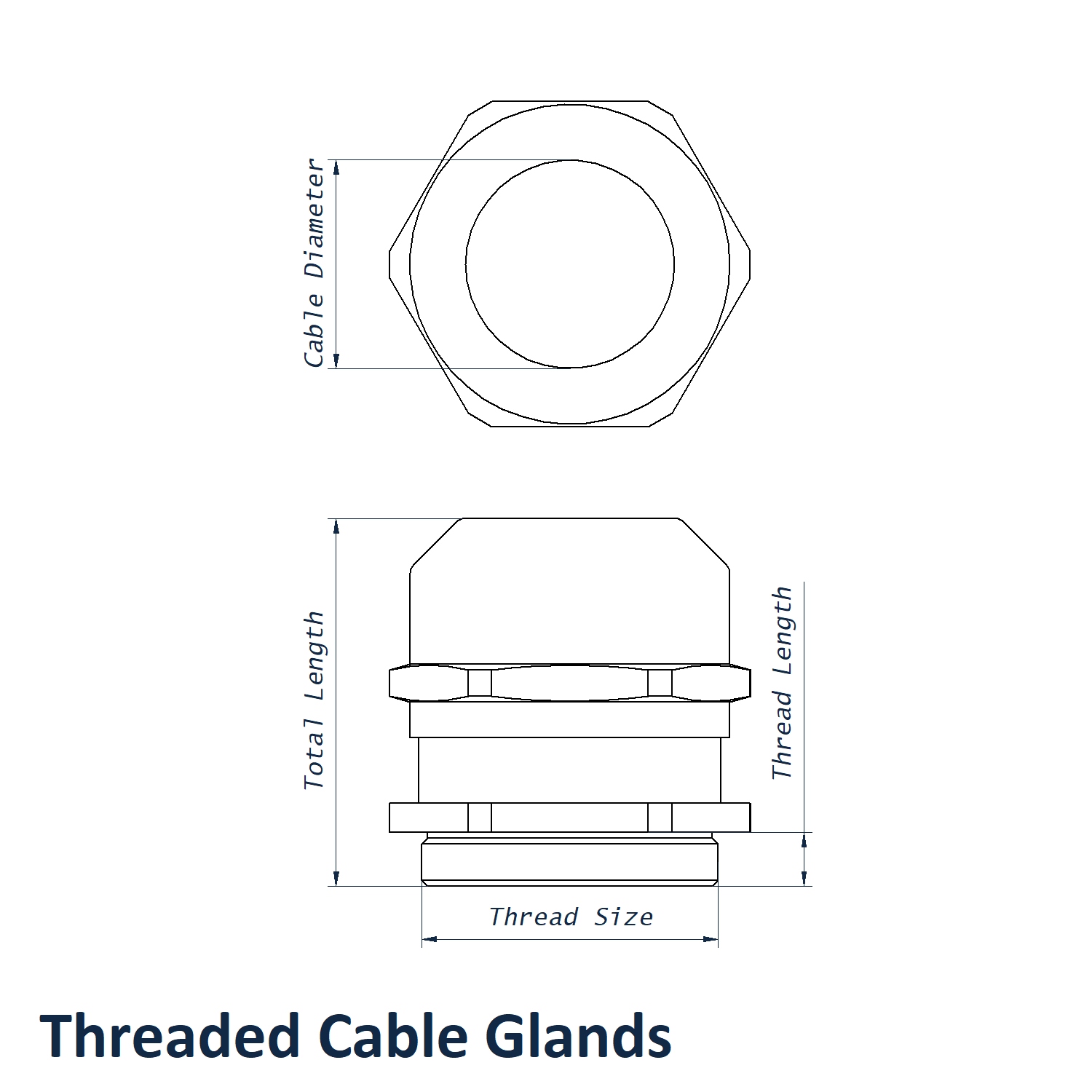

PG 21 Threaded Brass Cable Gland Dimensions
- Thread Size: PG 21
- Cable Diameter: 13.0 - 18.0mm
- Thread Length: 7.0mm
- Total Length: 29 - 34mm
- IP Rating: IP69
- Style: Straight-through
- Material: Brass
- Colour/Finish: Nickel Plated
Key Benefits
- Accepts the specified 13 - 18mm cable diameter range for accurate gland selection.
- Provides a 7mm thread length for checking panel entry compatibility.
- Nickel-plated brass construction offers a metal gland body with the specified finish.
- IP69 ingress protection classification for the stated gland design.
Browse more metal cable glands to compare thread connections and cable diameter options. If you need help selecting the correct size, call us on 01233 713581.
