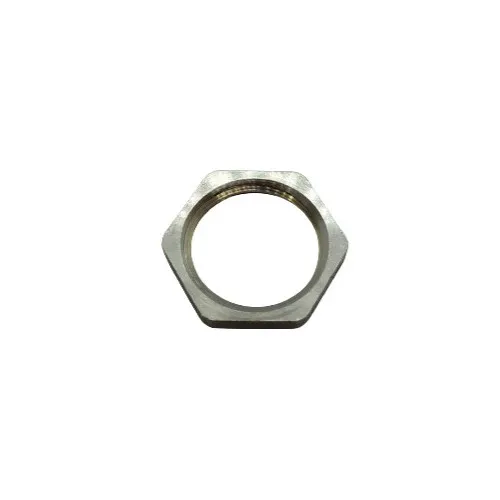

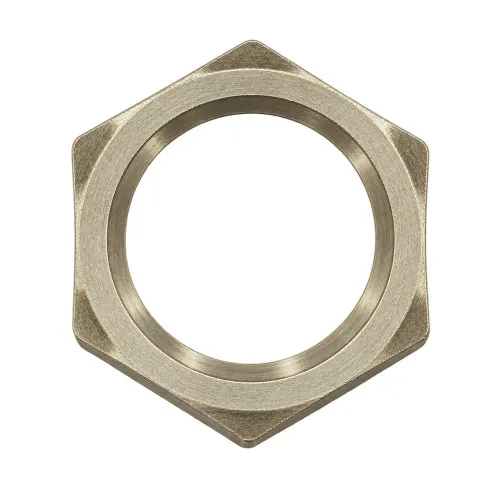

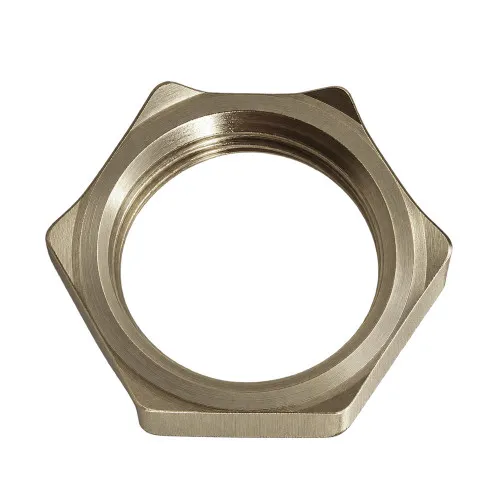

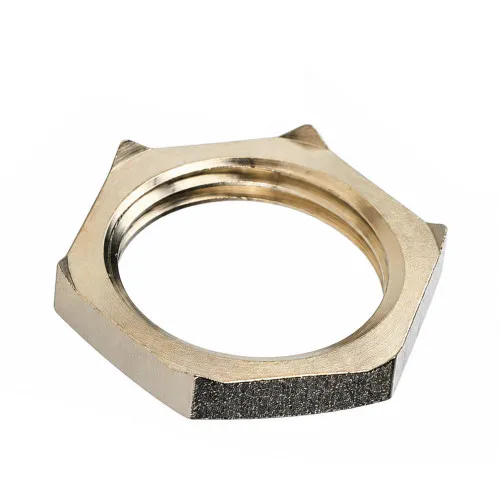

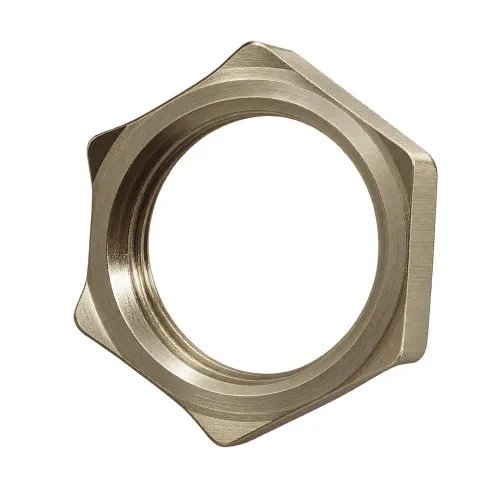

PG 11 Brass Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.49 | £0.59 |
| 10 - 49 | £0.35 | £0.42 |
| 50 - 99 | £0.28 | £0.34 |
| 100 + | £0.24 | £0.29 |
£0.59 / each
.png)
Product Specification
| Thread | PG 11 |
| Across Flats | 21mm |
| Height | 3.0mm |
| Style | Plain |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
Total Price: £0.00
PG 11 Cable Gland Lock Nut | Nickel Plated Brass
Developed for enclosures and equipment panels, this PG 11 Cable Gland Lock Nut secures a matching gland thread from the inside of the assembly. The Brass component uses a Plain profile with 21mm across flats and a 3.0mm overall height.
What Are Brass Cable Gland Lock Nuts?
Brass lock nuts provide a robust metal fixing for cable glands used in control, power, data and industrial equipment. The hexagonal profile gives installers a practical surface for tightening while the internal thread matches the gland entry.
Common Applications
- Industrial Machinery: Provides a replacement fastening ring for equipment that continues to use PG gland entries.
- Equipment Refurbishment: Replaces missing lock nuts while retaining the original PG-thread cable entry format.
- Maintenance Stock: Provides a useful replacement component for servicing older or mixed-standard gland installations.
- Legacy Electrical Enclosures: Secures compatible PG-thread cable glands used on existing panels, cabinets and junction boxes.

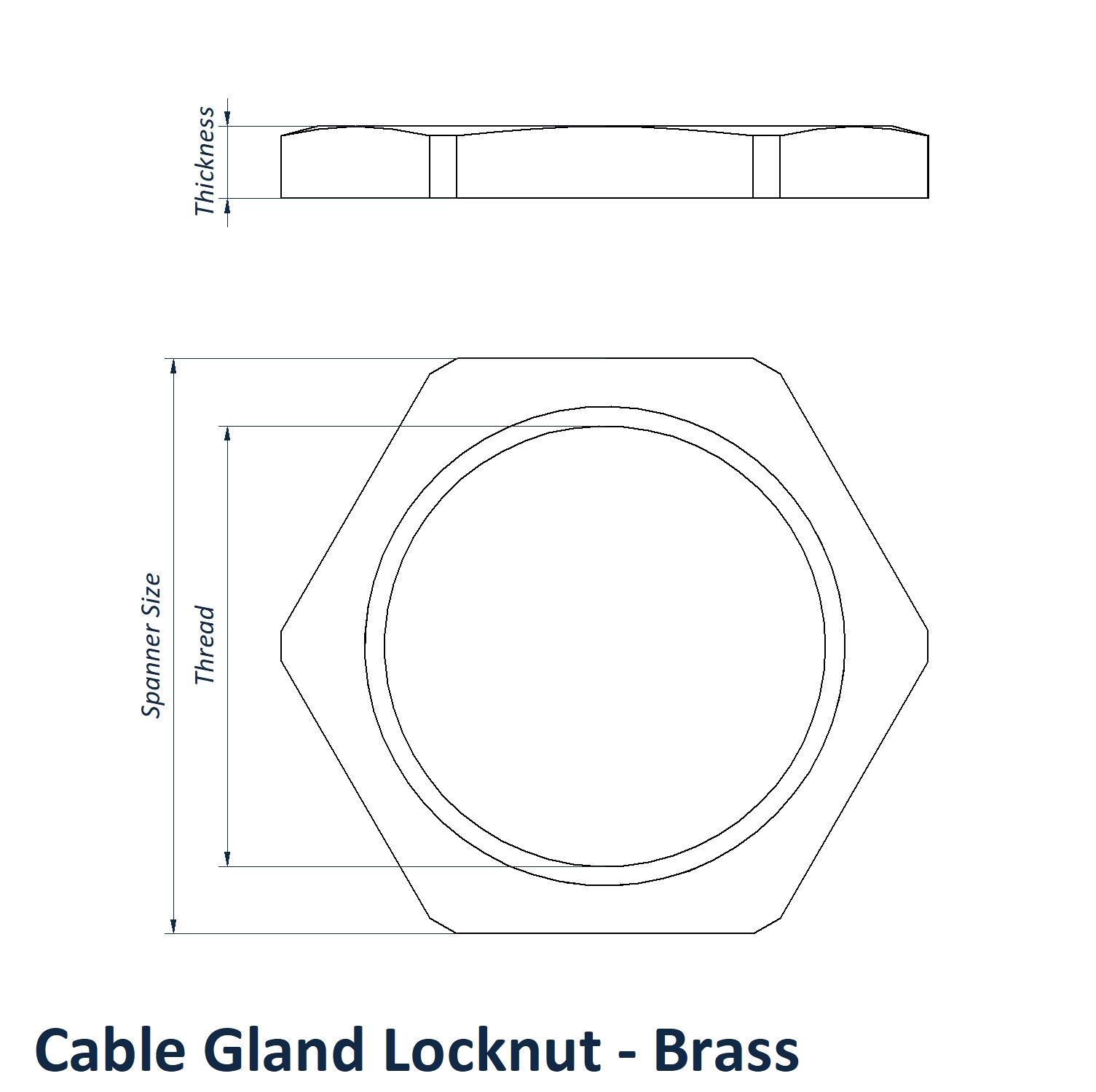

PG 11 Plain Cable Gland Lock Nut Dimensions
- Thread: PG 11
- Across Flats: 21mm
- Material: Brass
- Height: 3.0mm
- Style: Plain
- Colour/Finish: Nickel Plated
Key Benefits
- 3.0mm height matches the uploaded lock nut profile.
- Brass construction provides a robust metal fastening option for cable gland installations.
- The wider range also includes A2 stainless steel and Nylon lock nuts for different installation requirements.
- 21mm across-flats dimension provides a clear hexagonal tool size reference.
Compare this product with other Cable Gland Lock Nuts across metric and PG thread formats. Alternative material choices include A2 stainless steel, brass and nylon with EMC styles also available. If you need help selecting the correct size, telephone Vital Parts on 01233 713581.
