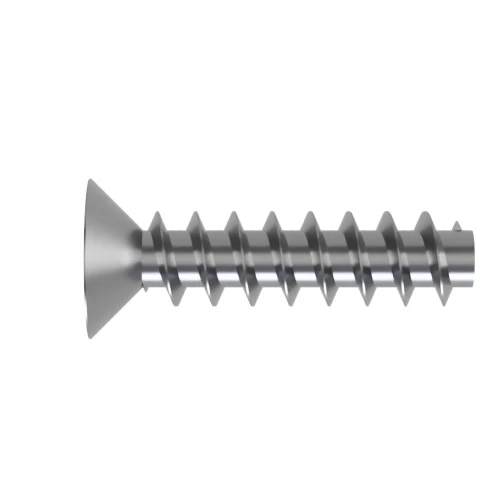

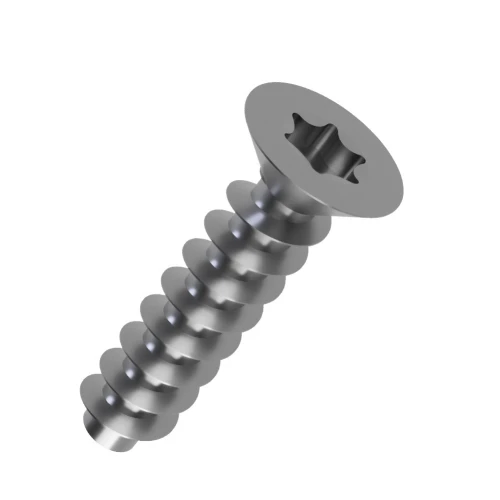

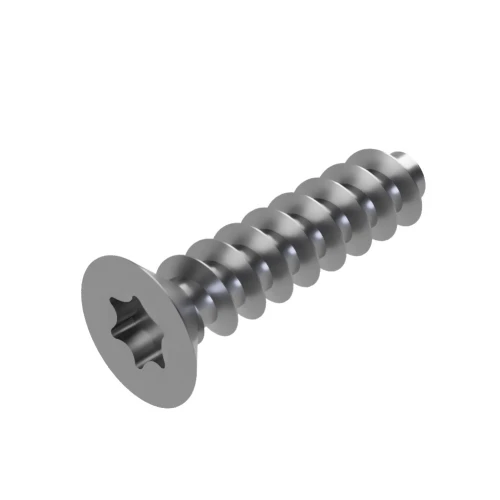

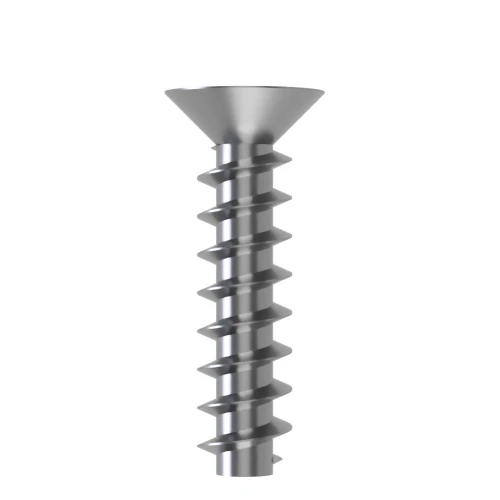

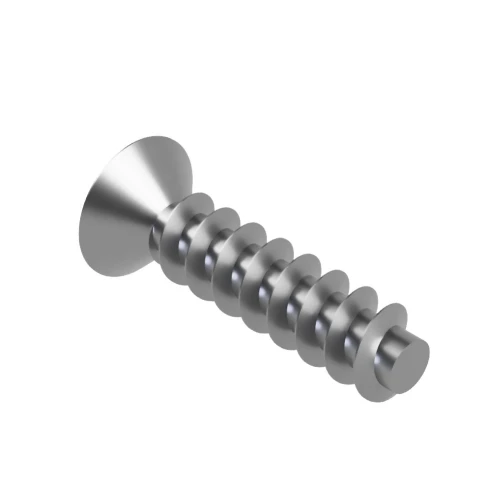

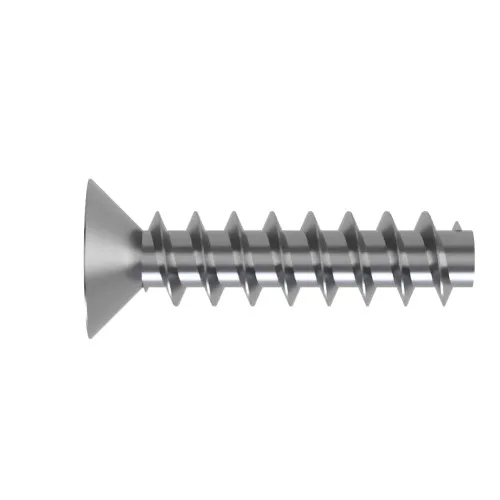

3mm x 12mm Torx Countersunk Screw for Hard Plastics (PT45) - T8 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.62 | £0.74 |
| 50 - 99 | £0.38 | £0.45 |
| 100 - 249 | £0.25 | £0.30 |
| 250 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.09 | £0.11 |
£0.74 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | T8 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3mm x 12mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Manufactured for fastening engineering plastics used in manufactured assemblies, this 3mm x 12mm PT45 Screw for Hard Plastics features a Countersunk head, T8 Torx drive and A2 Stainless Steel construction. Its trilobular 45° thread is designed for secure engagement in harder plastic bosses while the head finishes level with the surrounding surface.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is suited to materials such as polycarbonate and fibre-reinforced plastics while the countersunk head allows a flush installation into a matching recess.
Common Applications
- Food and Catering Equipment: Supports suitable rigid-plastic assemblies where corrosion-resistant A2 Stainless Steel is preferred.
- Electrical Enclosures: Secures hard-plastic covers and panels where a countersunk surface finish is required.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.

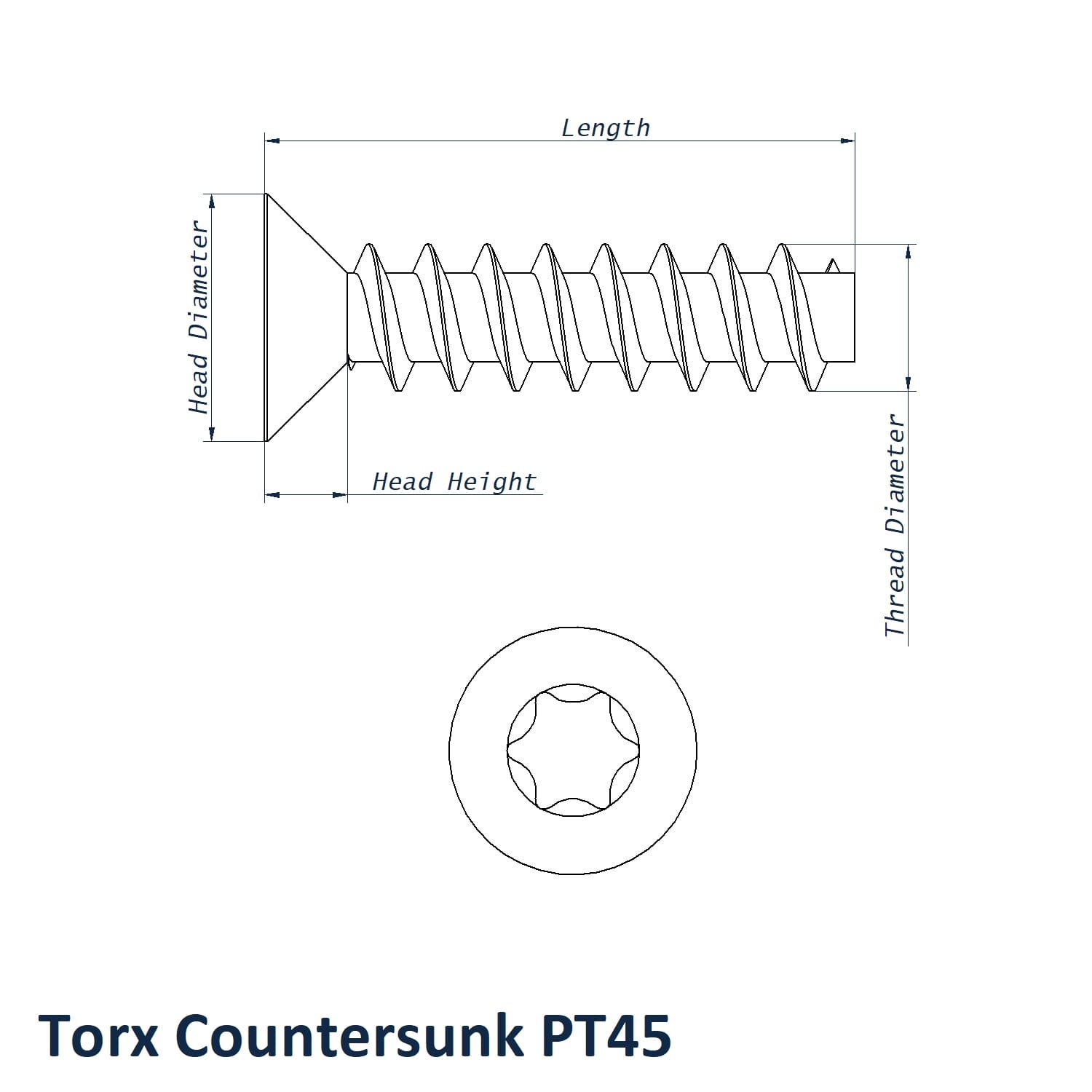

3mm x 12mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 12mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: T8
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- 5.50mm head diameter and 1.50mm head height match the uploaded SKU specification.
- Countersunk head allows a flush finished surface when installed into a correctly prepared recess.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- 3mm thread size and 12mm thread length provide the primary fastening dimensions.
Compare other sizes in the Vital Parts Torx Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
