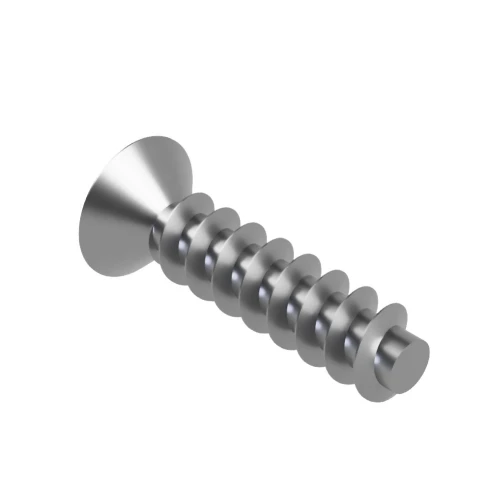

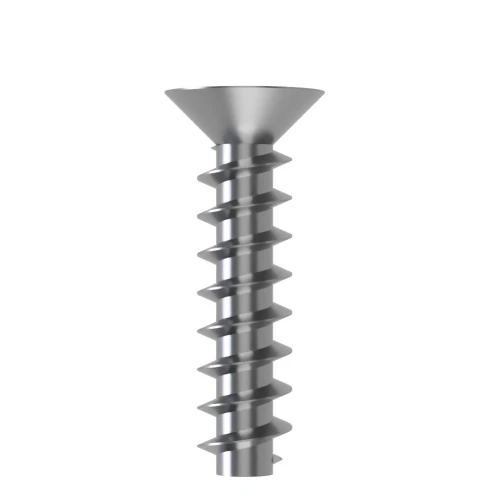

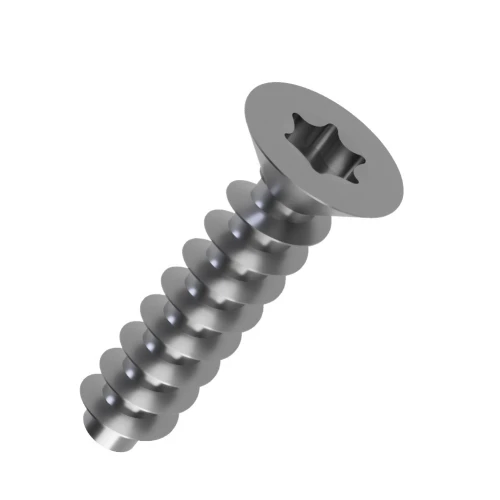

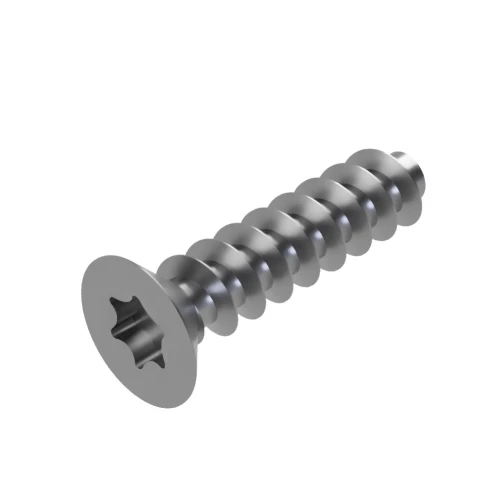

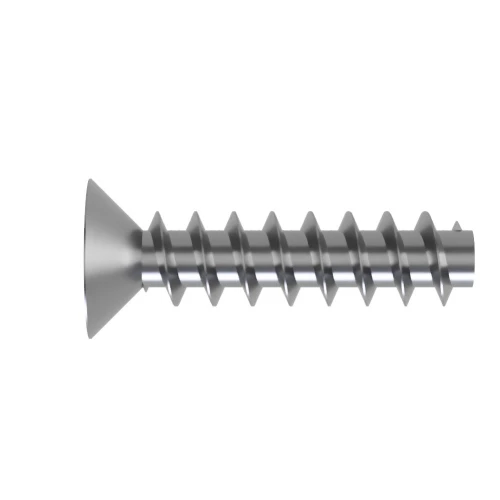

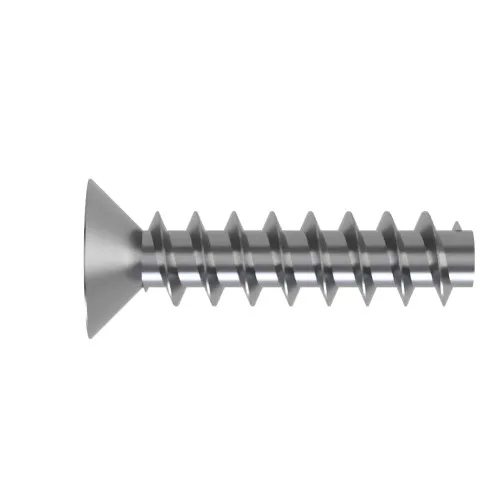

3mm x 8mm Torx Countersunk Screw for Hard Plastics (PT45) - T8 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.47 | £0.56 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 249 | £0.19 | £0.23 |
| 250 - 499 | £0.14 | £0.17 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.56 / each
.png)
Product Specification
| Thread Size | 3.0mm |
| Thread Length | 8mm |
| Material | A2 Stainless Steel |
| Head Diameter | 5.50mm |
| Head Height | 1.50mm |
| Drive | T8 |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
3mm x 8mm Torx Countersunk PT45 Screw for Hard Plastics | A2 Stainless Steel
Built for consumer electronics and appliance housings, this 3mm x 8mm PT45 Screw uses A2 Stainless Steel, a T8 Torx drive and a Countersunk head. The specialist thread form is designed for harder plastics where a strong drive-to-strip ratio and flush installation are useful.
What Are Torx Countersunk PT45 Screws?
Torx Countersunk PT45 screws are designed for moulded or predrilled pilot holes in hard plastics and reinforced materials. The countersunk head provides a smooth low-profile finish while the Torx drive gives positive tool engagement for manual or automated assembly.
Common Applications
- Automotive Components: Fastens rigid plastic trim and moulded parts where a low-profile screw head and Torx drive are beneficial.
- Industrial Equipment: Fastens hard-plastic guards, covers and instrument housings on machinery and control equipment.
- Outdoor Equipment: Provides an A2 Stainless Steel fastening option for suitable exterior hard-plastic assemblies.
- Fibre-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.

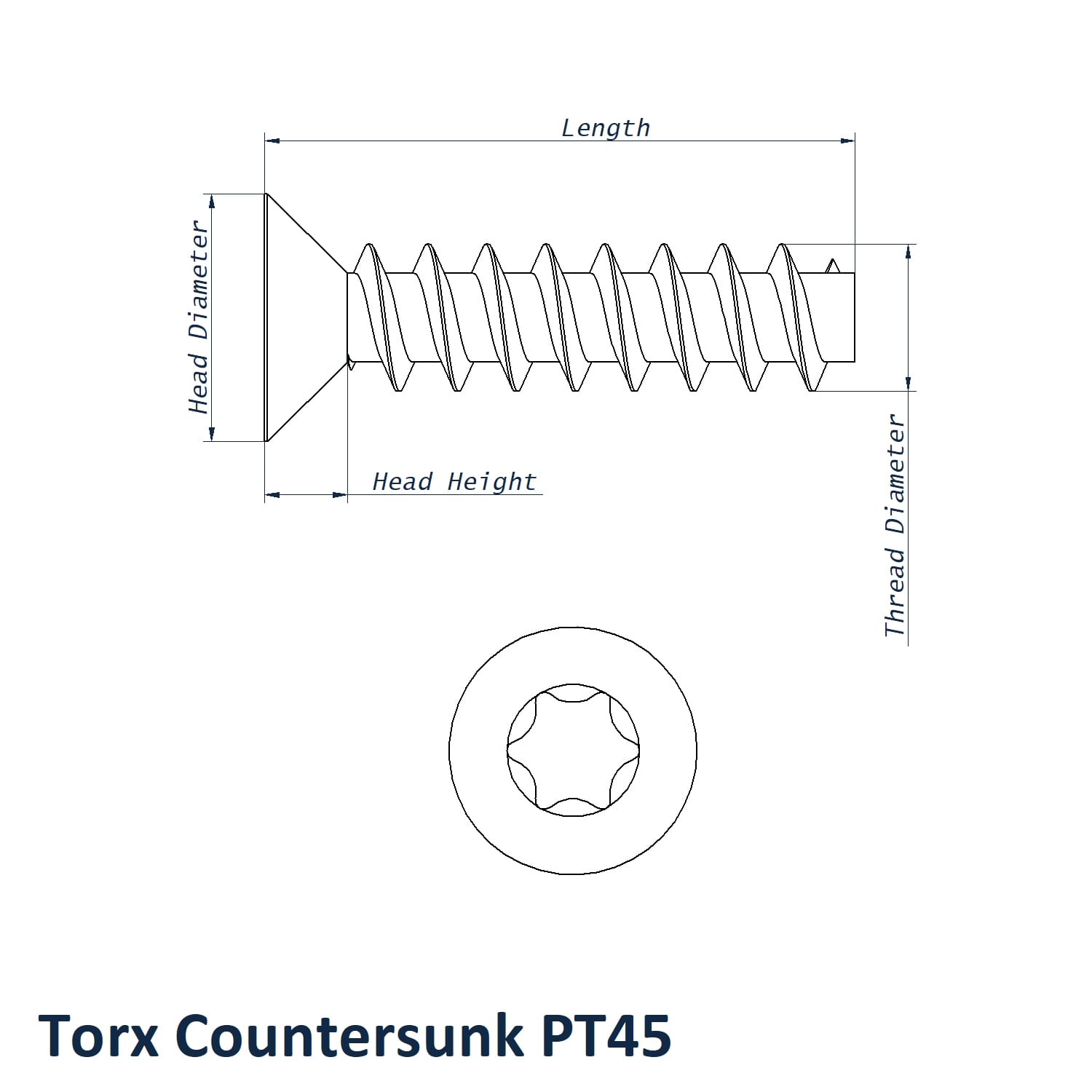

3mm x 8mm Torx Countersunk PT45 Screw Dimensions
- Thread Size: 3.0mm
- Thread Length: 8mm
- Head Diameter: 5.50mm
- Head Height: 1.50mm
- Drive: T8
- Material: A2 Stainless Steel
- Head Style: Countersunk
Key Benefits
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- A2 Stainless Steel construction provides improved corrosion resistance for suitable demanding environments.
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
Compare other sizes in the Vital Parts Torx Countersunk PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
