Triple Detent Plastic Hinge - HIN060
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.50 | £5.40 |
| 10 - 24 | £4.18 | £5.02 |
| 25 - 49 | £3.86 | £4.63 |
| 50 - 99 | £3.34 | £4.01 |
| 100 - 499 | £2.70 | £3.24 |
| 500 + | £2.32 | £2.78 |
Product Specification
| Base Height | 49mm |
| Width | 45mm |
| Vertical Hole Distance | 32mm |
| Open Horizontal Hole Distance | 27mm |
| Thickness | 14mm |
| Total Height | 54mm |
| Hole Size | 4.5mm |
| Detent Angle | None |
| Colour | Black |
| Material | Acetal |
Frequently Bought Together
Total Price: £0.00

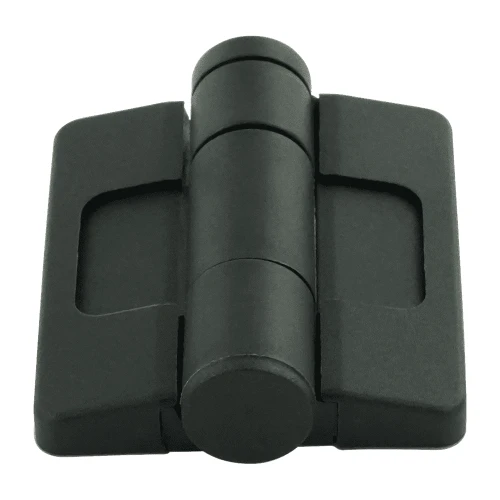

49mm x 45mm Triple Detent Plastic Hinge | No Detent Angle | Black Acetal
This 49mm x 45mm Triple Detent Plastic Hinge in black Acetal is suited to access panels, light machine guards and equipment covers where a compact plastic hinge is required without a preset hold-open angle.

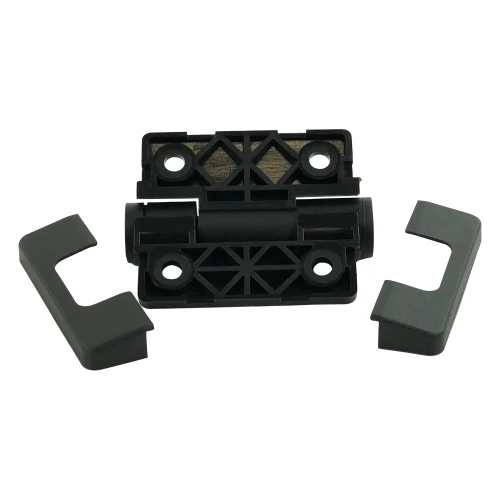

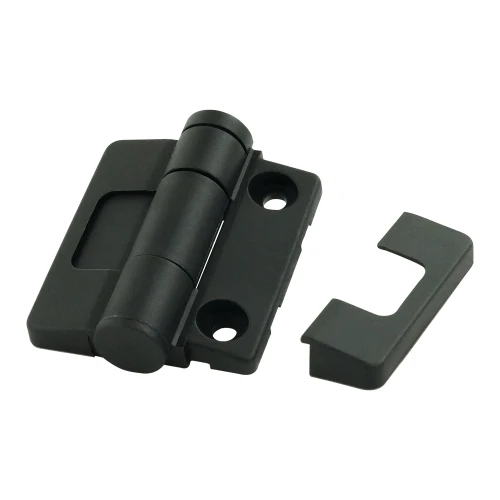

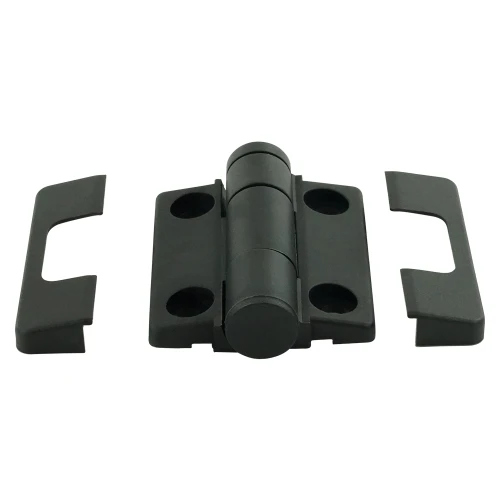

The 54mm total height, 14mm thickness and 4.5mm mounting holes make this hinge useful for controlled door movement on panels that need neat fitting, dependable alignment and concealed fixing caps.
Common Applications
- Access panels on electrical enclosures and control cabinets
- Inspection flaps where free-swinging movement is preferred
- IT housings, display covers and telecoms equipment
- Light industrial guards, instrument cases and workshop assemblies

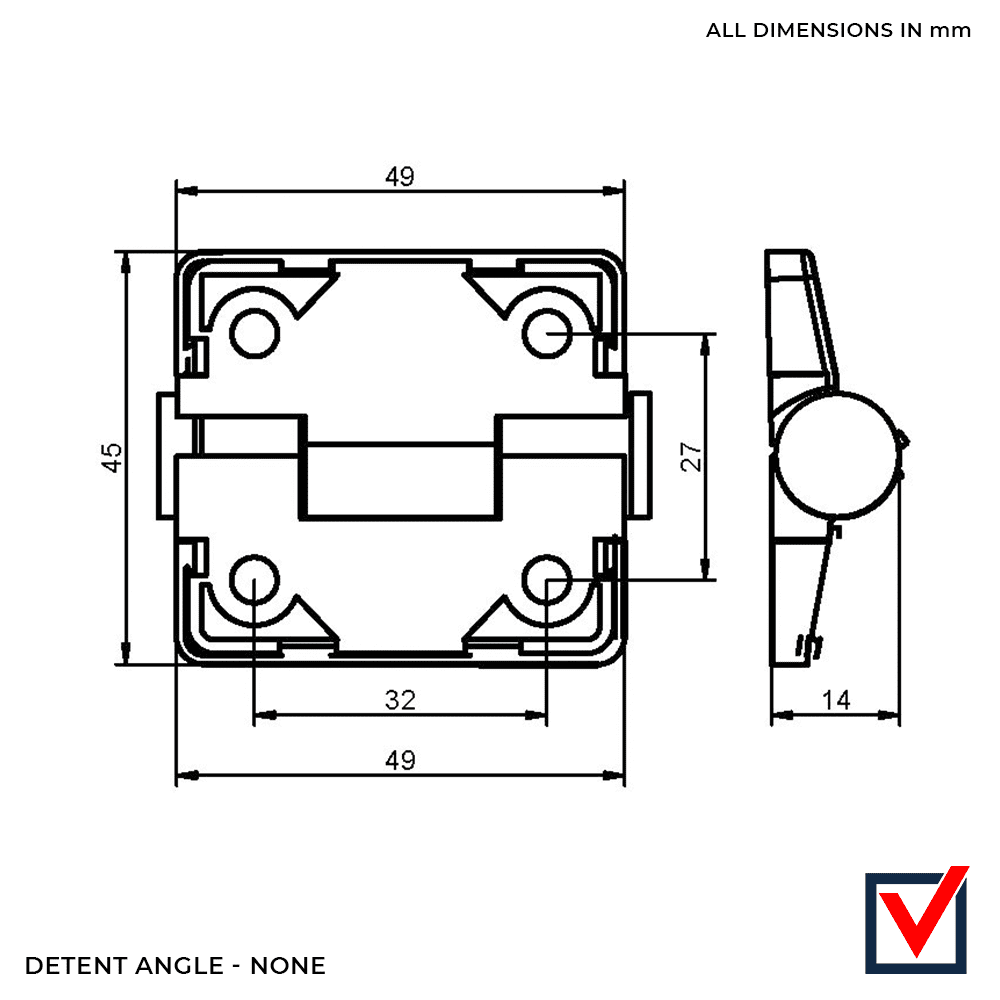

49mm x 45mm No Detent Angle Triple Detent Plastic Hinge Dimensions
- Base Height: 49mm
- Width: 45mm
- Vertical Hole Distance: 32mm
- Open Horizontal Hole Distance: 27mm
- Thickness: 14mm
- Total Height: 54mm
- Hole Size: 4.5mm
- Detent Angle: None
- Material: Acetal
- Colour: Black
When to Choose a No Detent Plastic Hinge
Choose this no detent option where the panel should open and close smoothly without being held at fixed angle positions. It is a practical choice for enclosure doors, service covers and smaller fabricated assemblies that need low weight with good resistance to daily use.
View our full range of Triple Detent Plastic Hinges.
