Triple Detent Plastic Hinge - HIN061
Product code:
HIN061
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.51 | £5.41 |
| 10 - 24 | £4.18 | £5.02 |
| 25 - 49 | £3.86 | £4.63 |
| 50 - 99 | £3.35 | £4.02 |
| 100 - 499 | £2.70 | £3.24 |
| 500 + | £2.32 | £2.78 |
£5.41
/ each
Quantity:
Product Specification
| Base Height | 49mm |
| Width | 45mm |
| Vertical Hole Distance | 32mm |
| Open Horizontal Hole Distance | 27mm |
| Thickness | 14mm |
| Total Height | 54mm |
| Hole Size | 4.5mm |
| Detent Angle | 0° / 120° / 170° |
| Colour | Black |
| Material | Acetal |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

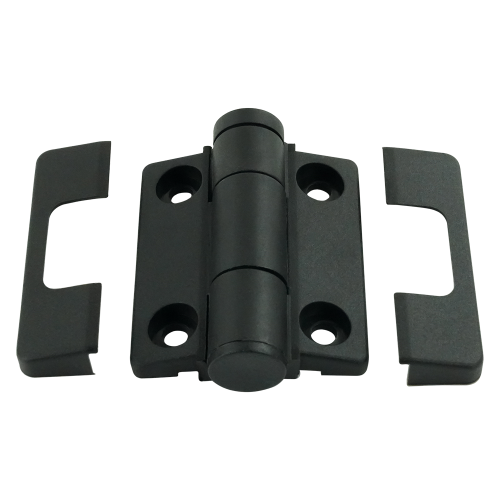

49mm x 45mm Triple Detent Plastic Hinge | 0° 120° 170° Detent | Black Acetal
This 49mm x 45mm Triple Detent Plastic Hinge in black Acetal is designed for lids, hatches and cabinet doors that need controlled positioning at 0° / 120° / 170° without separate stays or gas struts.
As a compact option for heavy duty detent hinges, the 14mm thick body and 32mm vertical hole spacing support reliable alignment on OEM equipment, machinery housings and industrial access covers.
Common Applications
- Machinery doors and equipment hatches requiring set opening positions
- HVAC covers, telecoms cabinets and service panels
- Manufacturing equipment where hands-free access improves maintenance work
- Display units, inspection stations and commercial enclosures

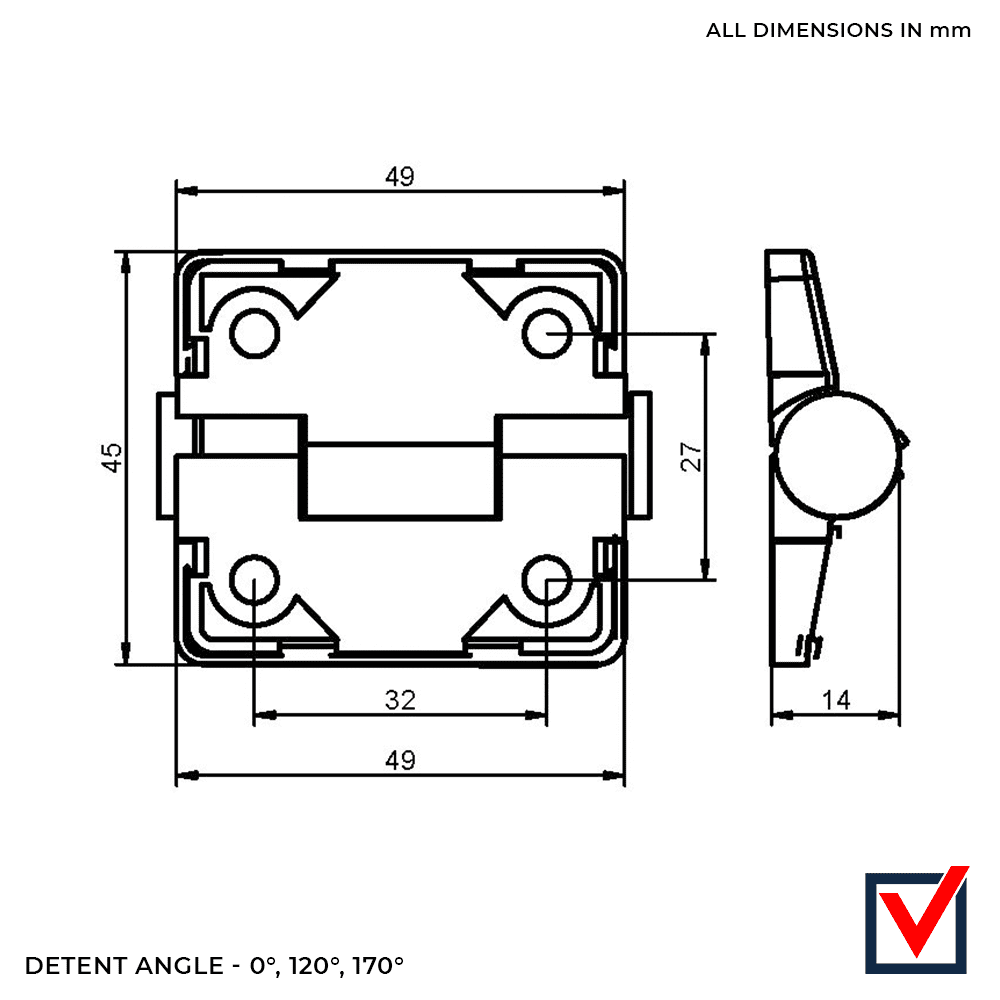

49mm x 45mm 0° 120° 170° Detent Triple Detent Plastic Hinge Dimensions
- Base Height: 49mm
- Width: 45mm
- Vertical Hole Distance: 32mm
- Open Horizontal Hole Distance: 27mm
- Thickness: 14mm
- Total Height: 54mm
- Hole Size: 4.5mm
- Detent Angle: 0° / 120° / 170°
- Material: Acetal
- Colour: Black
Why Use a Triple Detent Positioning Hinge
This version is best where the hinge must help hold a door, lid or hatch at repeatable angles during servicing or inspection. The detent action supports safer access, reduces the need for extra support hardware and keeps compact equipment designs simple.
View our full range of Triple Detent Plastic Hinges.
