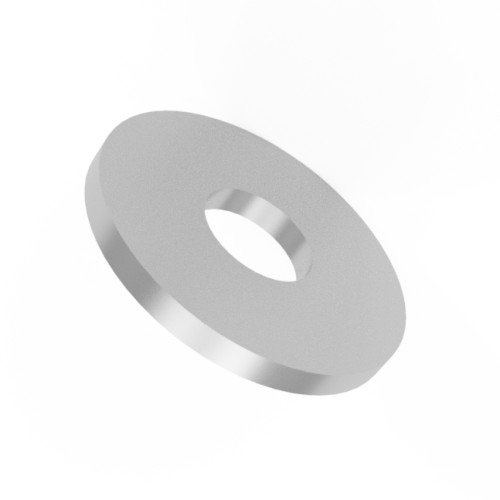

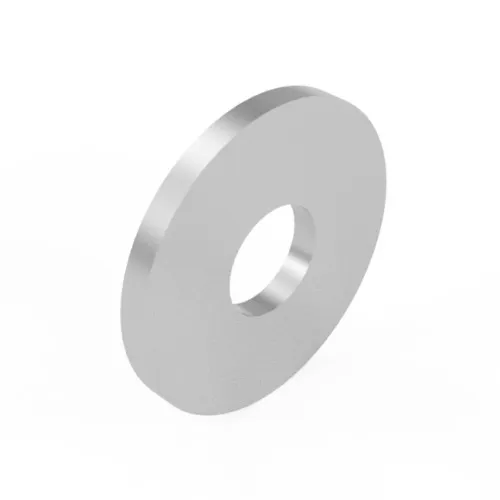

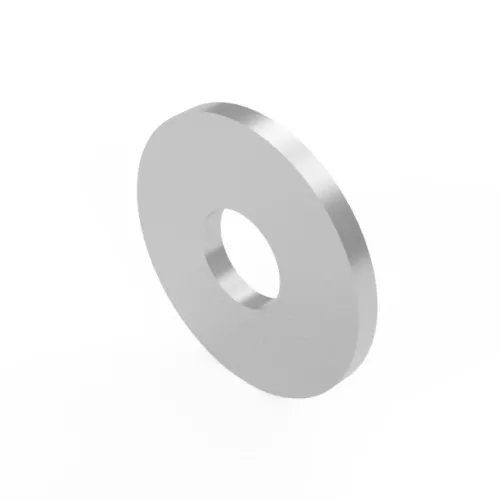

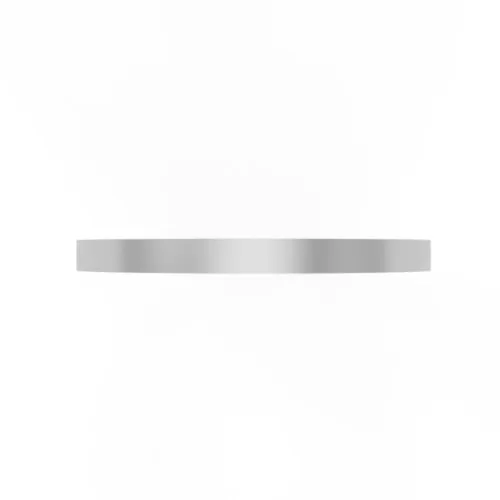

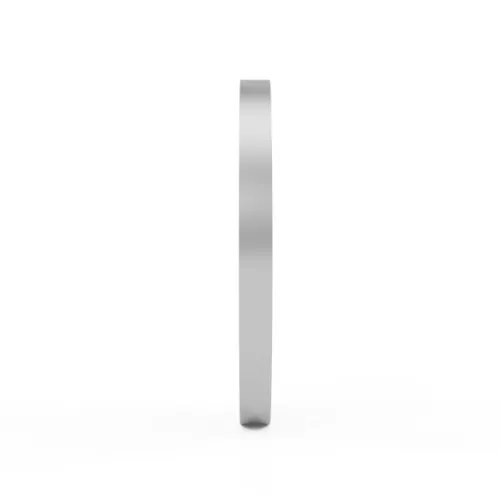

M22 (24mm) x 80mm Wood Construction Washer - DIN 440R | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £4.36 | £5.23 |
| 100 - 499 | £3.96 | £4.75 |
| 500 - 999 | £3.17 | £3.80 |
| 1000 - 9999 | £2.85 | £3.42 |
| 10000 + | £2.66 | £3.19 |
£5.23 / each
.png)
Product Specification
| Size | M22 |
| Internal Diameter | 24.0mm |
| Outside Diameter | 80.0mm |
| Thickness | 6.00mm |
| Standard | DIN 440R |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M22 Wood Construction Washer - 24mm ID x 80mm OD | DIN 440R | A4 Stainless Steel
This wood fixing washer is suited to boat building and high-moisture timber assemblies where a standard washer may not provide enough bearing area. The large round profile spreads clamping pressure across the wood which helps reduce indentation, pull-through and damage around the fastener. The A4 marine-grade material is particularly suited to coastal, marine and high-moisture timber applications where enhanced corrosion resistance is required.
What Are Wood Construction Washers?
Wood Construction Washers are large-diameter flat washers designed specifically for timber assemblies. Their wider surface area spreads the clamping load from bolts, coach screws or nuts across more of the wood which helps reduce crushing, indentation and fastener pull-through.
Common Applications
- Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
- Boat Building: A4 Stainless Steel variants provide load spreading around timber fasteners used in suitable marine assemblies.
- Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
- Agricultural Buildings: Provides reinforced washer support for timber frames, sheds and external structural assemblies.

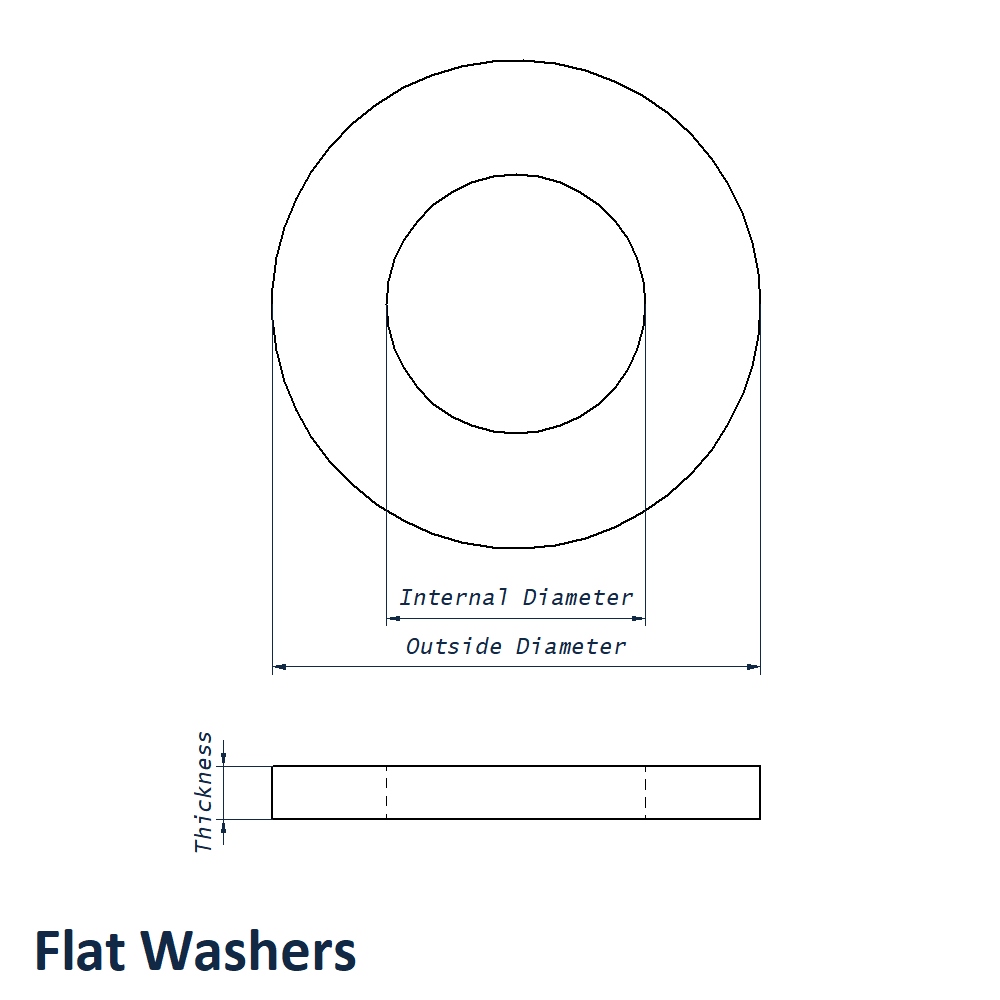

M22 DIN 440R Wood Construction Washer Dimensions
- Size: M22
- Internal Diameter: 24.0mm
- Outside Diameter: 80.0mm
- Thickness: 6.00mm
- Material: A4 Stainless Steel
- Standard: DIN 440R
Key Benefits
- Large bearing surface helps reduce local crushing and indentation in softer timber.
- Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
- 24.0mm internal diameter provides clearance around the compatible bolt or coach screw.
- 6.00mm thickness provides the specified washer section for this size.
View the full Wood Construction Washers range to compare DIN 440R and DIN 1052 sizes in A2 and A4 Stainless Steel. If you need help selecting the correct washer for your timber fixing, call us on 01233 713581.
