Worm Drive Hose Clamp 20-32mm, 12mm Width, W2
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.98 | £1.18 |
| 25 - 49 | £0.94 | £1.13 |
| 50 - 99 | £0.91 | £1.09 |
| 100 - 249 | £0.88 | £1.05 |
| 250 + | £0.84 | £1.01 |
£1.18 / each
.png)
Product Specification
| Clamping Diameter | 20-32mm |
| Band Width | 12mm |
| Tightening Torque | 5Nm |
| Material | W2 |
Frequently Bought Together
Total Price: £0.00

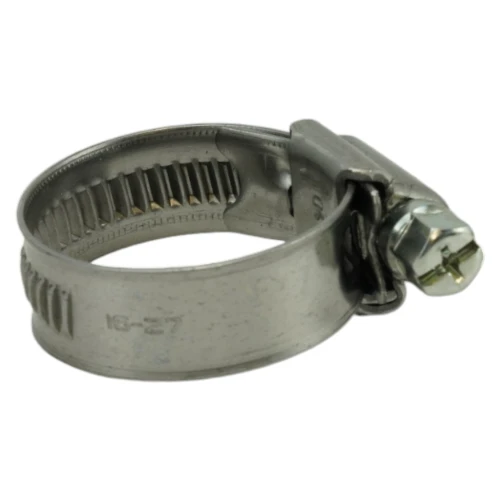

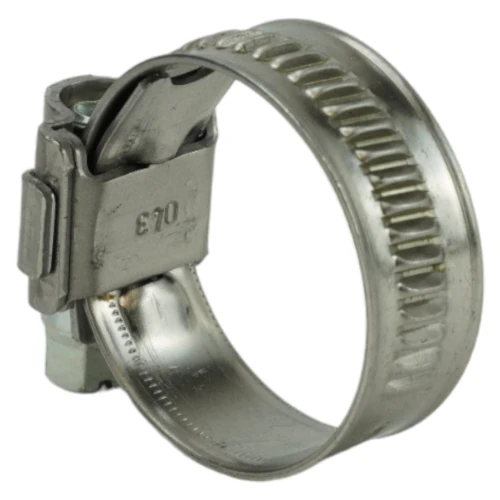

20-32mm W2 Worm Drive Hose Clamp | 12mm Band
When a removable mechanical hose connection is needed, this W2 worm drive clip adjusts across 20-32mm. A 12mm band encircles the hose and the screw turns to draw the band in for equipment servicing where a stainless band is preferred.
What Are Worm Drive Hose Clamps?
A worm drive hose clamp is an adjustable metal band with a screw-driven housing. Turning the screw engages the slots or formed thread of the band to reduce or increase its diameter around a hose. The W2 design combines a stainless steel band with zinc-plated mild steel tightening components, so it is not an all-stainless construction. Confirm that the W2 construction meets the environmental needs of the installation.
Common Applications
- Hose-to-pipe connections: Hold a suitable flexible hose around a compatible rigid pipe tail or spigot.
- Workshop equipment: Secure service hoses on pumps and general maintenance equipment where the diameter is suitable.
- Fluid transfer lines: Fasten compatible non-critical transfer hoses to fittings in equipment assemblies.
- Repair and replacement: Replace a worn or incorrectly sized screw clamp during hose servicing.

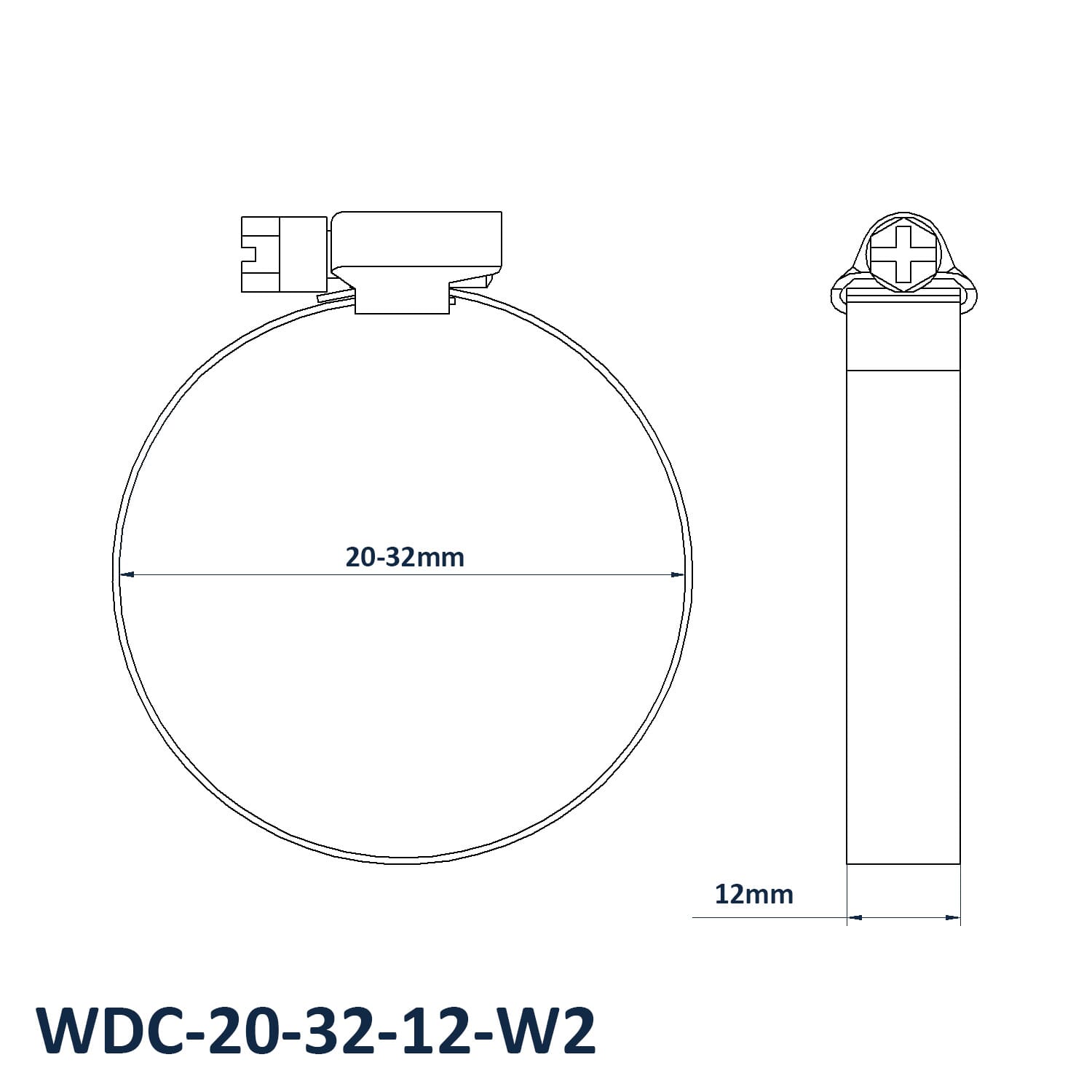

20-32mm W2 Worm Drive Hose Clamp Dimensions
- Clamping Diameter: 20-32mm
- Band Width: 12mm
- Tightening Torque: 5Nm
- Material: W2
Key Benefits
- Screw-operated tightening: Allows the band to be drawn around a hose using a suitable driver.
- Size selection: The stated diameter range helps match the clamp to the assembled hose.
- Accessible servicing: The worm drive can be released when hose maintenance is required.
- Material identification: The W-grade distinguishes its band, housing and screw construction.
Compare the different sizes of metal hose clips available for hose installations. If you need help selecting the correct clamp, call us on 01233 713581.
