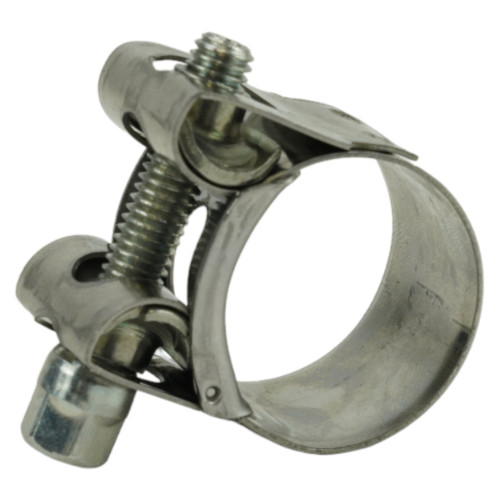

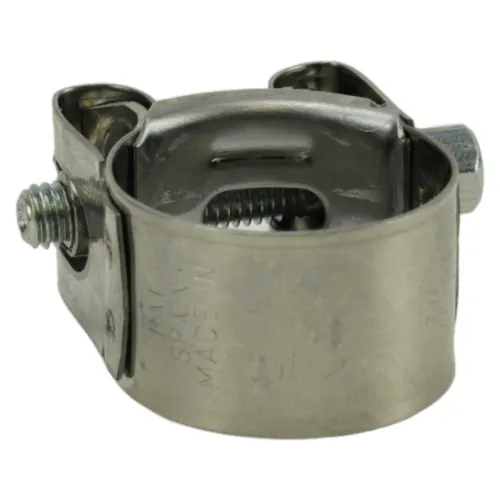

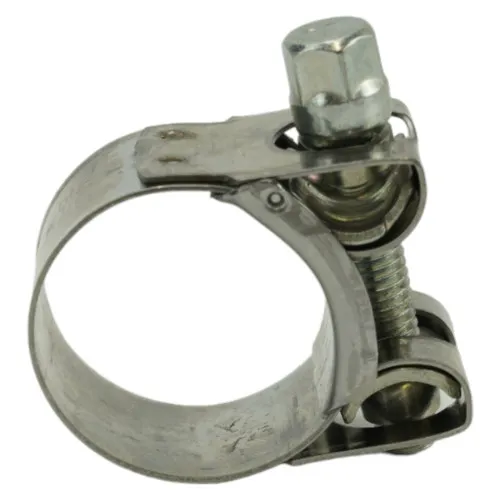

T Bolt Hose Clamp 37-40mm, 20mm Width, W2

M7 T Bolt Clamps, 37-40mm, 20mm Width, W2 | Vital Parts – TBC-37-40-20-W2

Our M7 T Bolt Clamps are heavy-duty hose clamping solutions engineered for high-pressure, high-temperature applications requiring superior clamping force and exceptional durability. Available in three material grades (W1 zinc-plated mild steel, W2 stainless steel band with mild steel housing and W4 full 304 stainless steel construction), these professional-grade clamps feature a distinctive T-shaped bolt design that provides uniform sealing pressure around the entire circumference. Our T Bolt Clamps deliver reliable performance across automotive, industrial, marine and construction applications where standard clamps fail under extreme operating conditions.

What are T Bolt Clamps?

T Bolt Clamps, also known as Heavy Duty Hose Clamps or Bolt Clamps, are specialized fastening devices that utilize a T-shaped bolt mechanism running across the top of a stainless steel band, secured by nuts at each end to create exceptional clamping force. Unlike traditional worm drive clamps, T Bolt Clamps distribute pressure evenly around the entire hose circumference, preventing hot spots and ensuring leak-proof seals even under extreme pressure and vibration conditions. The robust construction features rounded band edges to protect hoses from damage while providing the strength needed for demanding applications in hydraulic systems, exhaust connections and high-pressure fluid transfer lines.

Hose Bolt Key Features:

• Available in three material grades: W1 zinc-plated, W2 hybrid and W4 full 304 stainless steel, making this T Bolt Hose Clamp stainless and highly durable
• T-shaped bolt design provides uniform pressure distribution and superior clamping force
• Comprehensive size range from 17mm to 252mm diameter with custom sizing available
• Rounded band edges protect hoses from cutting and abrasion damage
• Reusable and adjustable design for cost-effective maintenance and line changes
• High-temperature resistance suitable for exhaust and cooling system applications
• Corrosion-resistant materials withstand harsh chemical and marine environments
• Easy installation and adjustment without specialized tools
• W5 316 stainless steel option available for extreme corrosion resistance

Key Applications and Industries

In the UK market, T Bolt Clamps are extensively utilized across manufacturing equipment for hydraulic systems, chemical processing plants requiring acid and alkali resistance, construction machinery with high-pressure air brake systems, transportation industry applications including turbo coolant lines and charge air tubes on heavy lorries, buses and gas utilities for LPG & natural gas systems. These clamps are particularly valuable in marine environments, industrial automation and any application where vibration, pressure fluctuations and corrosive conditions demand superior fastening reliability.

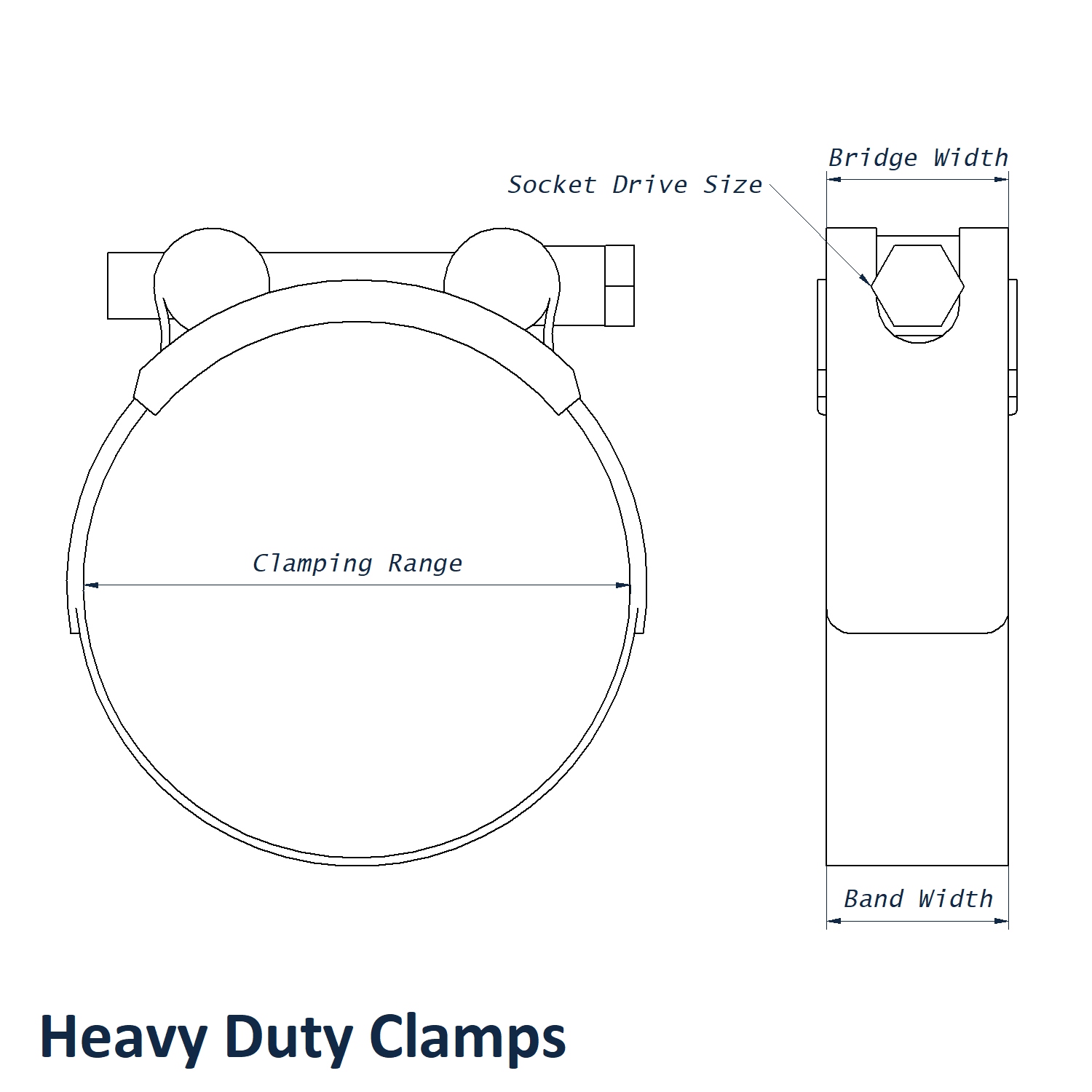

T bolt clamp technical Specifications

• Material : W2
• Size Range: 37-40mm
• Temperature Range: -60°C to +180°C operating, +190°C peak temperature
• Band Width: 20mm
• Bolt Size:M7
• Bridge Width:22mm
• Tightening Torque:13Nm
• Bolt Type: T-shaped bolt with self-locking nuts
• Standards Compliance: DIN 3017 conformity
• Pressure Rating: High-pressure applications with 3:1 safety factor
• Installation: Tool-free adjustment and installation

Our T Bolt Clamps are ideal for:

• High-pressure hydraulic systems in manufacturing and construction equipment
• Automotive turbocharger and exhaust system connections
• Marine applications requiring saltwater corrosion resistance
• Chemical processing plant hose and pipe connections
• Air brake lines and coolant systems in heavy transportation vehicles
• Gas utility connections for LPG and natural gas systems

Benefits:

• Superior clamping force prevents leaks under extreme pressure and vibration
• Uniform pressure distribution eliminates hose damage and hot spots
• Reusable design reduces long-term maintenance costs compared to single-use alternatives
• Multiple material grades accommodate diverse environmental and budgetary requirements
• Wide size range covers most standard and custom hose diameter applications
• Exceptional corrosion resistance ensures long-term reliability in harsh environments
• Easy installation and adjustment minimizes downtime during maintenance
• Custom sizing capabilities meet specific application requirements

Why Choose Vital Parts?

Vital Parts is a trusted UK supplier of premium fasteners and industrial components, dedicated to delivering a customer-focused service with the following advantages:

• Same-Day Dispatch: Fast and reliable shipping to keep your projects on track.
• Competitive Trade Pricing: Enjoy bulk discounts on larger orders to save more.
• Expert Technical Support: Our knowledgeable team is here to help with product selection and application advice.

Our T Bolt Clamps deliver uncompromising performance for the most demanding industrial applications where standard clamps simply cannot provide adequate security. With comprehensive material options, extensive sizing capabilities and custom solutions available, we ensure optimal performance for your specific requirements. If you need assistance selecting the right size or would like to discuss custom options, contact our expert team at 01233 713581.
