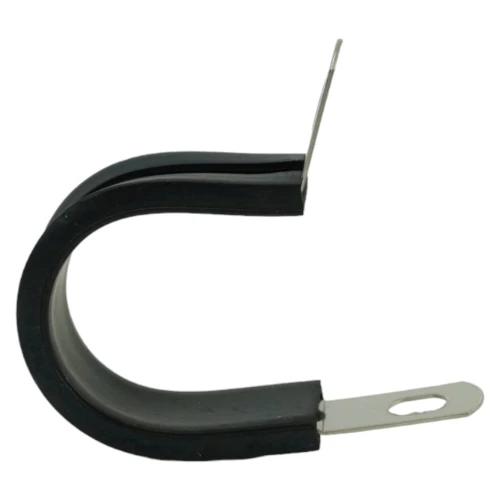

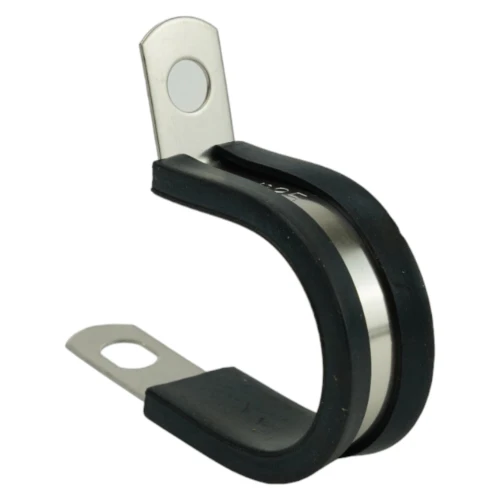

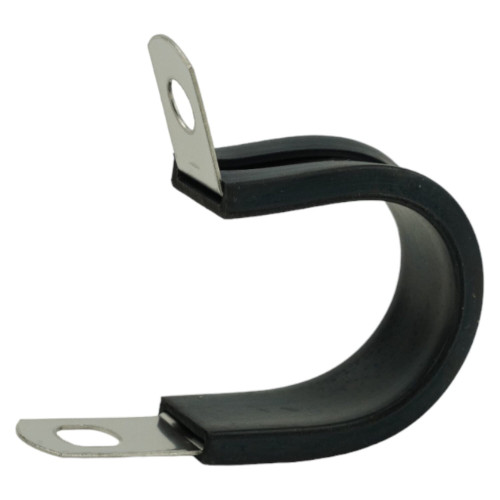

Rubber Lined P Clip 12mm, A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.63 | £0.76 |
| 25 - 49 | £0.58 | £0.70 |
| 50 - 99 | £0.53 | £0.64 |
| 100 - 249 | £0.49 | £0.59 |
| 250 + | £0.45 | £0.54 |
Product Specification
| Clamping Diameter | 12mm |
| Width | 16mm |
| Plate Width | 12.7mm |
| Hole Diameter | M6 |
| Plate Thickness | 0.7mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
12mm Rubber Lined P Clip | A4 Stainless Steel | M6 Fixing Hole
Frequently specified for marine equipment, this 12mm cushioned P clip is used to retain pipework, brake lines and electrical harnesses without leaving bare metal in direct contact with the surface.
A single fixing point keeps installation straightforward, with the M6 hole allowing use with compatible bolts or screws. A4 stainless steel is well suited to exposed, damp or more corrosive environments where a longer service life is required.
Common Applications
- Fastening small bore pipework to sheet metal panels
- Protecting cable insulation from rubbing against brackets
- Supporting fuel, air or water lines in vehicle maintenance
- Securing service lines in OEM equipment builds

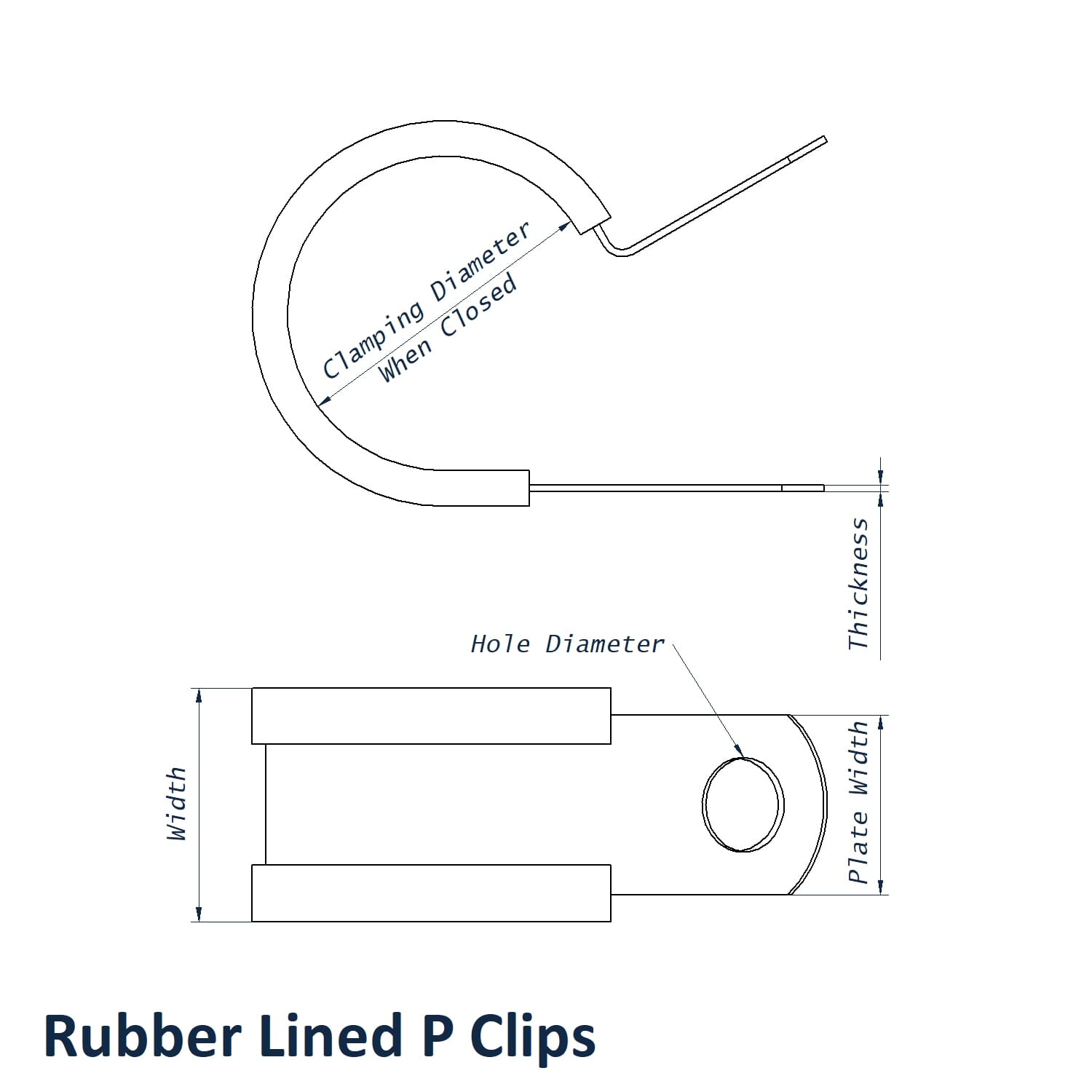

12mm A4 Stainless Steel Rubber Lined P Clip Dimensions
- Clamping Diameter: 12mm
- Width: 16mm
- Plate Width: 12.7mm
- Plate Thickness: 0.7mm
- Hole Diameter: M6
- Material: A4 Stainless Steel
P Clip Fixing Advice
Use this clip where a protected contact point is needed between the fixing and the supported component. The EPDM liner helps reduce vibration transfer and limits abrasion during regular operation.
View our full Rubber Lined P Clips range.
Product Support and Trade Orders
Need support with a multi-size P clip order or a demanding installation environment? Speak with the Vital Parts team on 01233 713581 for guidance on sizing, materials and repeat supply options.
