13mm Bonded Sealing Washer (29mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.58 | £0.70 |
| 50 - 99 | £0.49 | £0.59 |
| 100 - 249 | £0.36 | £0.43 |
| 250 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 - 4999 | £0.18 | £0.22 |
| 5000 + | £0.15 | £0.18 |
£0.70 / each
.png)
Product Specification
| Internal Diameter | 13.0mm |
| Outside Diameter | 29.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
13mm x 29mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM

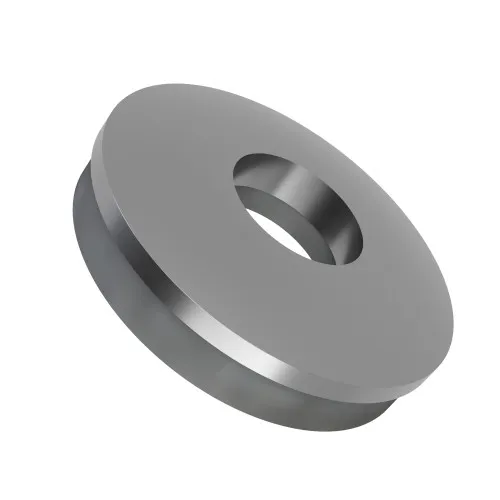

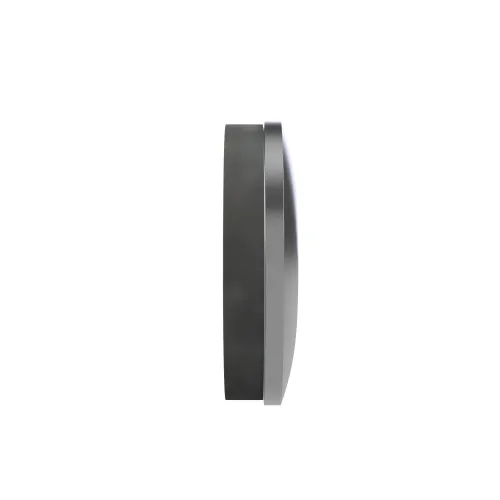

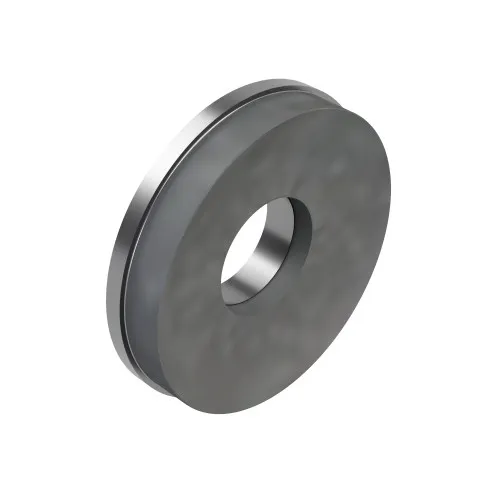

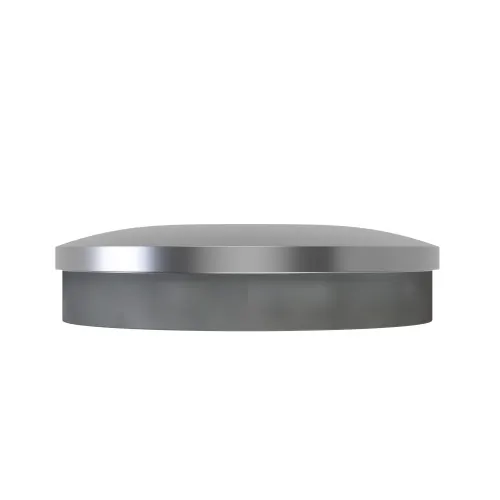

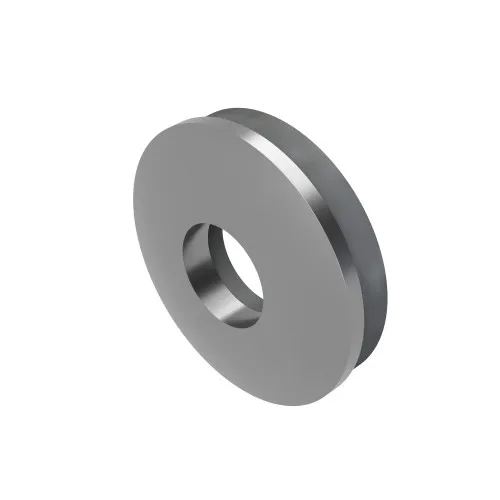

This 13mm x 29mm bonded washer combines an A2 Stainless Steel washer with a bonded EPDM Rubber seal to help create a sealed fixing point around compatible bolts or screws. The 2.8mm total thickness and 2mm rubber section allow the seal to compress beneath the fastener across machinery covers, guards and equipment housings.
What Are Bonded Sealing Washers?
Seal Washers provide both mechanical support and a sealing interface beneath a bolt or screw head. The bonded construction keeps the rubber and metal components together which simplifies installation compared with using separate washers.
Our bonded seal washers are available in multiple internal and outside diameters for matching different compatible fasteners and sealing footprints.
Common Applications
- Roofing and Cladding: Helps seal compatible screw or bolt fixings through sheet-metal roofing, cladding and exterior panels.
- Industrial Enclosures: Provides a sealing interface around suitable fasteners used on access panels, housings and equipment covers.
- General Construction: Combines load spreading and sealing around compatible bolts used in fabricated metal and external assemblies.
- Outdoor Equipment: A2 Stainless Steel and EPDM construction suits many weather-exposed fastening points where correct sealing is required.

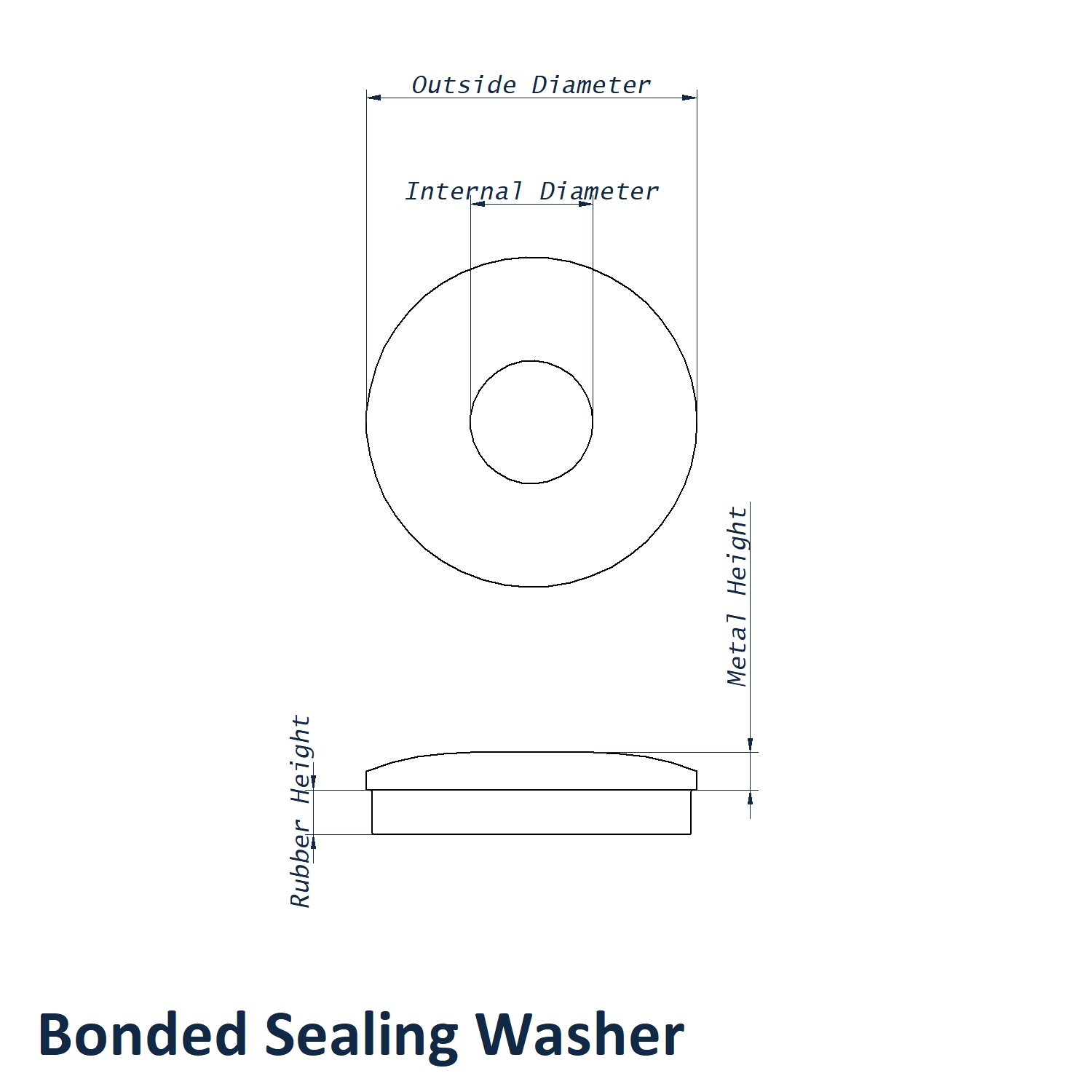

13mm x 29mm Bonded Sealing Washer Dimensions
- Internal Diameter: 13.0mm
- Outside Diameter: 29.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- 0.8mm metal thickness provides the specified A2 Stainless Steel supporting section.
- A2 Stainless Steel construction provides corrosion resistance for many general and outdoor applications.
- Metal ring spreads clamping load while the bonded rubber helps seal around the fixing hole.
- 13mm internal diameter provides the stated clearance around the compatible fastener.
View our full selection of Dowty washers for alternative fixing diameters and sealing footprints. If you are unsure which size suits your application, contact our team on 01233 713581.
