8.5mm Bonded Sealing Washer (22mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.44 | £0.53 |
| 100 - 249 | £0.41 | £0.49 |
| 250 - 499 | £0.38 | £0.46 |
| 500 - 999 | £0.33 | £0.39 |
| 1000 - 4999 | £0.29 | £0.35 |
| 5000 + | £0.25 | £0.30 |
£0.53 / each
.png)
Product Specification
| Internal Diameter | 8.5mm |
| Outside Diameter | 22.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

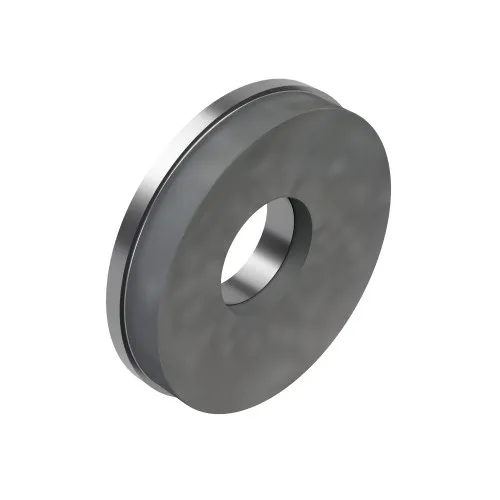

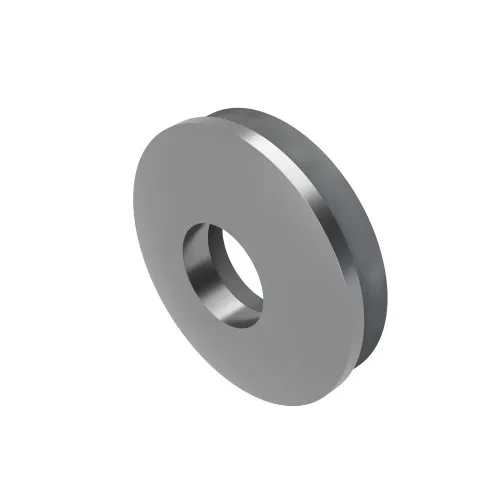

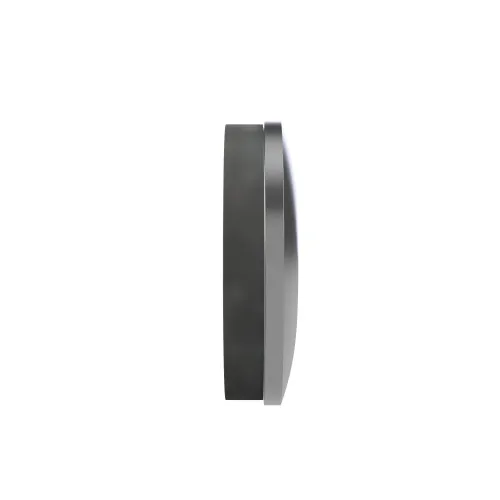

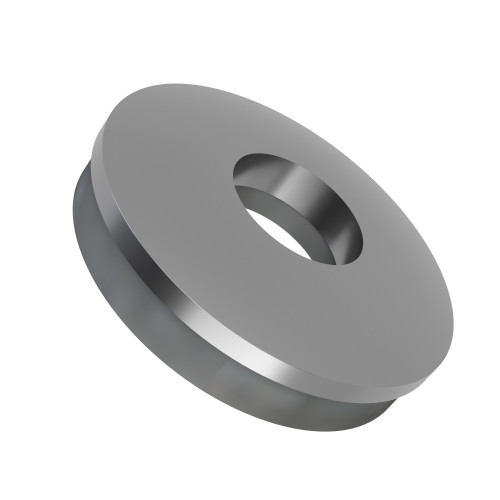

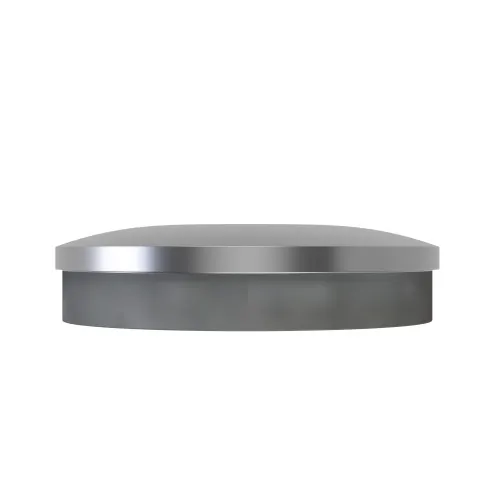

8.5mm x 22mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
This 8.5mm x 22mm Dowty washer combines an A2 Stainless Steel washer with a bonded EPDM Rubber seal to help create a sealed fixing point around compatible bolts or screws. The 2.8mm total thickness and 2mm rubber section allow the seal to compress beneath the fastener across electrical enclosures, access panels and outdoor equipment.
What Are Bonded Sealing Washers?
Bonded Seal Washers, often referred to as Dowty washers, use a metal outer washer bonded to a rubber sealing section. The metal component provides support and load distribution while the elastomer compresses to help seal the fixing hole.
Our hydraulic sealing washers are available in multiple internal and outside diameters for matching different compatible fasteners and sealing footprints.
Common Applications
- Pipework and Fittings: Can help seal compatible threaded fixing points and connections where the fluid and operating conditions are suitable for EPDM.
- Machinery: Provides a bonded seal around suitable bolts used on guards, covers and equipment housings.
- Perspex and Sheet Materials: Spreads clamping force through the metal washer while the EPDM layer cushions the contact surface.
- Maintenance and Repair: Provides a one-piece replacement where both a washer and compressible seal are required around a fixing.

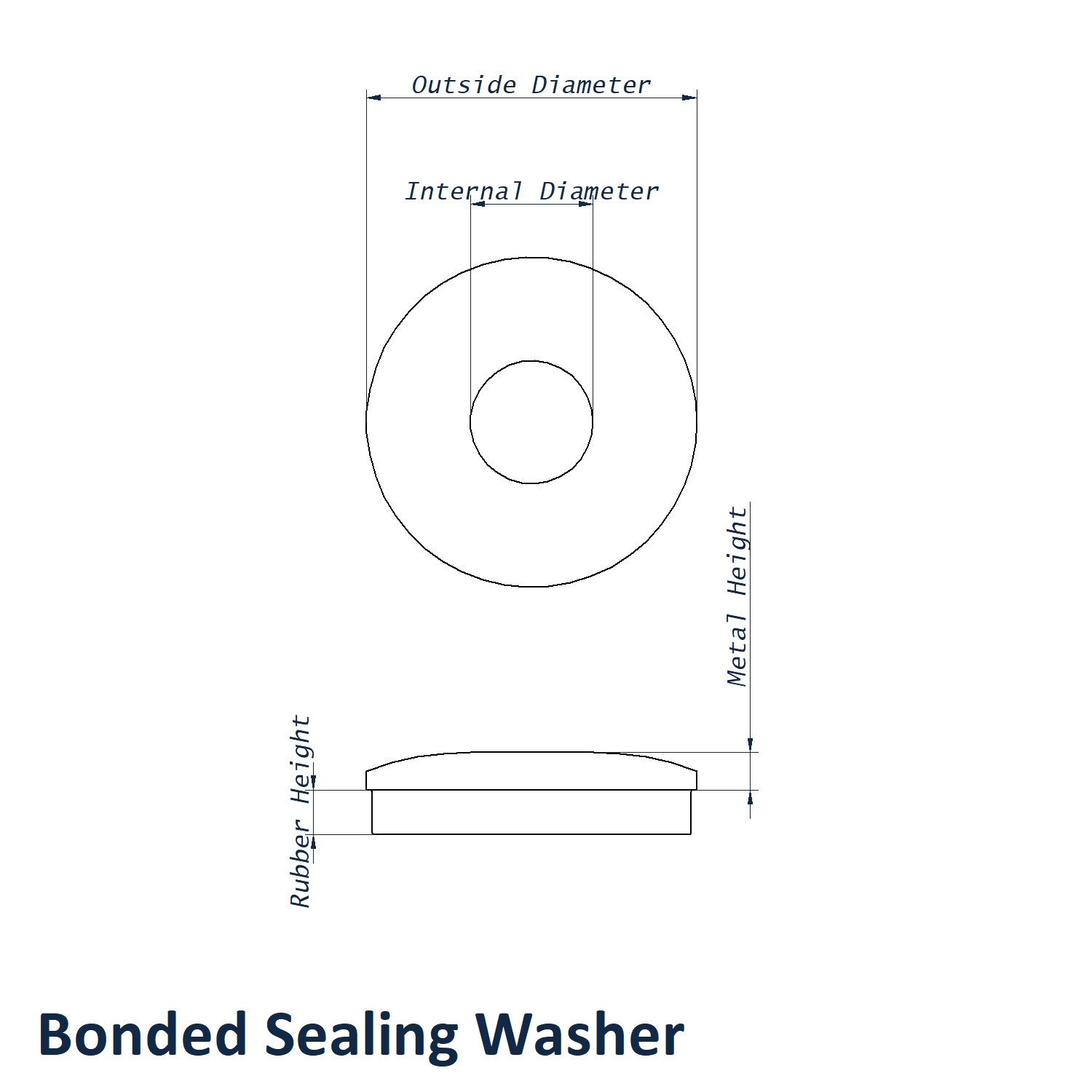

8.5mm x 22mm Bonded Sealing Washer Dimensions
- Internal Diameter: 8.5mm
- Outside Diameter: 22.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- Metal ring spreads clamping load while the bonded rubber helps seal around the fixing hole.
- 8.5mm internal diameter provides the stated clearance around the compatible fastener.
- 0.8mm metal thickness provides the specified A2 Stainless Steel supporting section.
- A2 Stainless Steel construction provides corrosion resistance for many general and outdoor applications.
See more bonded washers for suitable construction, engineering and sealing applications. For help matching the washer to your fixing, speak with our team on 01233 713581.
