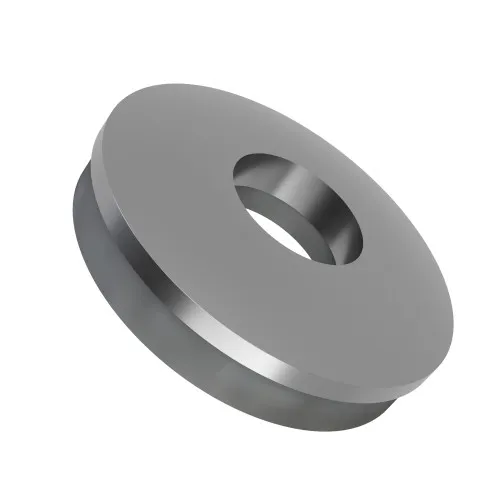

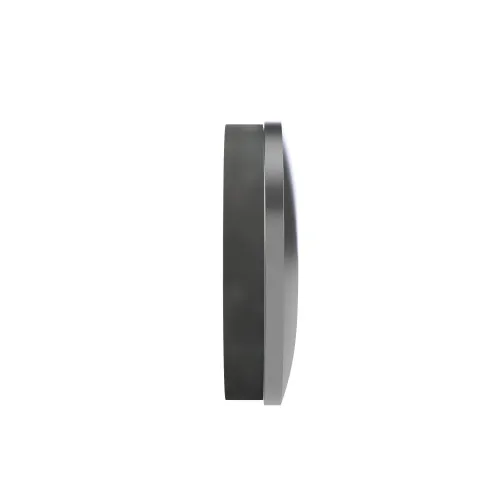

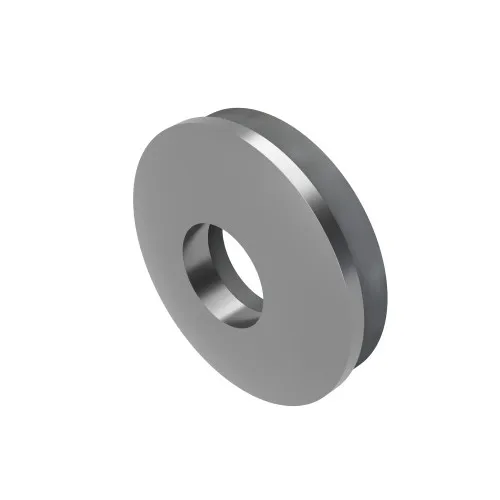

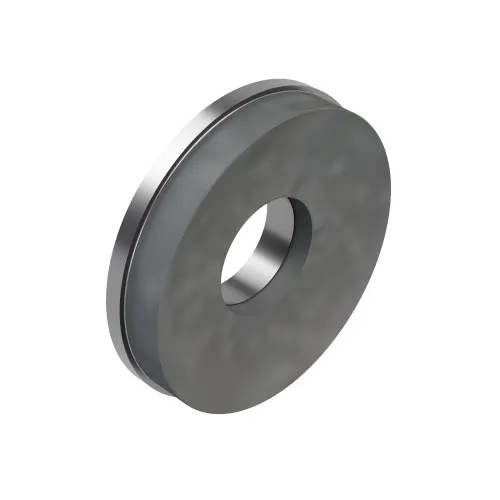

6.7mm Bonded Sealing Washer (29mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.48 | £0.58 |
| 50 - 99 | £0.41 | £0.49 |
| 100 - 249 | £0.30 | £0.36 |
| 250 - 499 | £0.23 | £0.27 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 - 4999 | £0.15 | £0.18 |
| 5000 + | £0.12 | £0.15 |
£0.58 / each
.png)
Product Specification
| Internal Diameter | 6.7mm |
| Outside Diameter | 29.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
6.7mm x 29mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
Providing a combined washer and seal for maintenance and repair work where a bolt or screw hole needs sealing, this 6.7mm x 29mm bonded sealing washer uses a 0.8mm stainless steel section with a 2mm EPDM Rubber sealing layer. Correct compression beneath a compatible fixing helps form a reliable barrier around the fastener hole.
What Are Bonded Sealing Washers?
EPDM Bonded Washers are designed for applications where the fastener hole needs additional protection from moisture, air or compatible fluids. EPDM is widely used for weather-resistant sealing while the stainless steel washer supports the clamping force.
For compatible fastening points that need both load spreading and sealing, our bonded washers provide a one-piece metal and EPDM solution.
Common Applications
- Automotive Components: Helps seal suitable fastener points on panels, brackets and equipment where EPDM compatibility is appropriate.
- Electrical Panels: Supports sealed bolt and screw points on suitable outdoor boxes, covers and fabricated enclosures.
- Plant Equipment: Provides a combined sealing and load-spreading washer for suitable industrial fixing points.
- Fabricated Metalwork: Helps reduce ingress paths around bolts and screws in compatible sheet-metal assemblies.

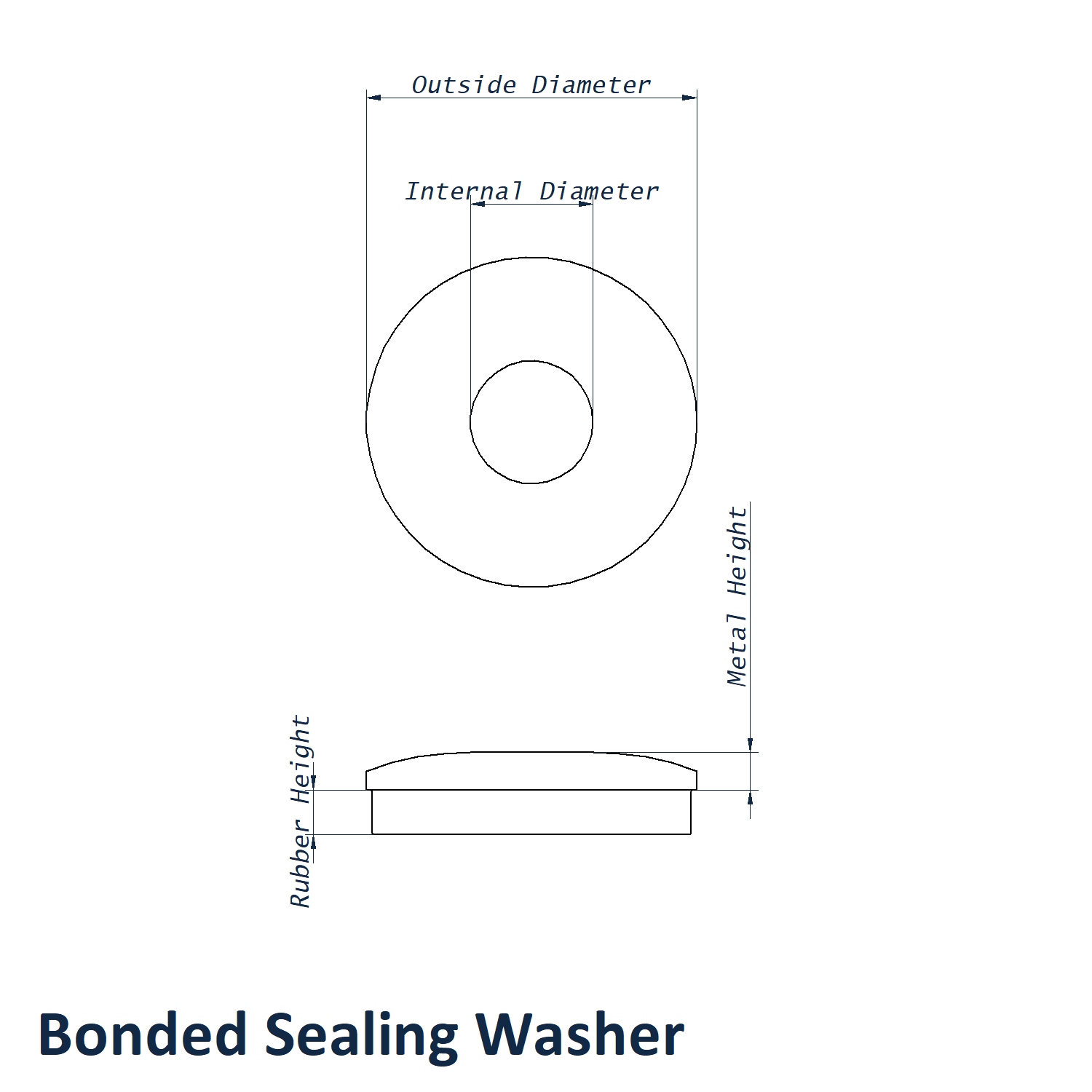

6.7mm x 29mm Bonded Sealing Washer Dimensions
- Internal Diameter: 6.7mm
- Outside Diameter: 29.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- EPDM Rubber provides weather, ozone and UV resistance for suitable sealing applications.
- Metal ring spreads clamping load while the bonded rubber helps seal around the fixing hole.
- 29mm outside diameter provides the washer's overall bearing and sealing footprint.
- 0.8mm metal thickness provides the specified A2 Stainless Steel supporting section.
See more bonded seal washers for suitable construction, engineering and sealing applications. For help matching the washer to your fixing, speak with our team on 01233 713581.
