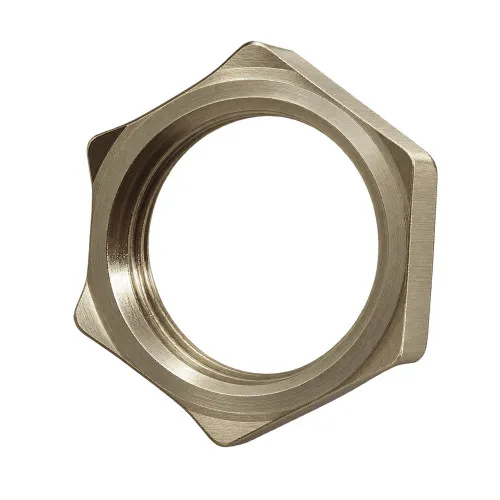

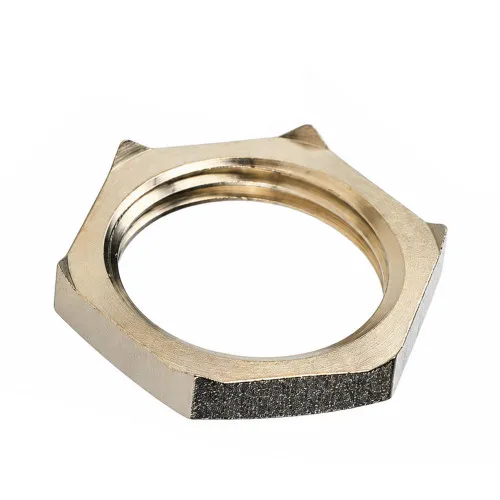

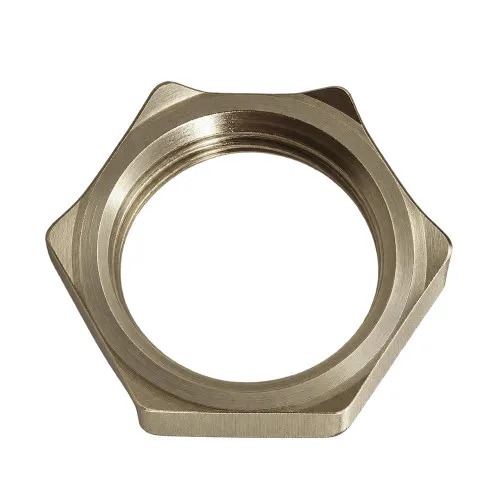

PG 48 Brass Cable Gland Locknut | Plain
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.36 | £6.43 |
| 10 - 49 | £3.83 | £4.59 |
| 50 - 99 | £3.06 | £3.67 |
| 100 + | £2.60 | £3.12 |
£6.43 / each
.png)
Product Specification
| Thread | PG 48 |
| Across Flats | 64mm |
| Height | 5.0mm |
| Style | Plain |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
Total Price: £0.00

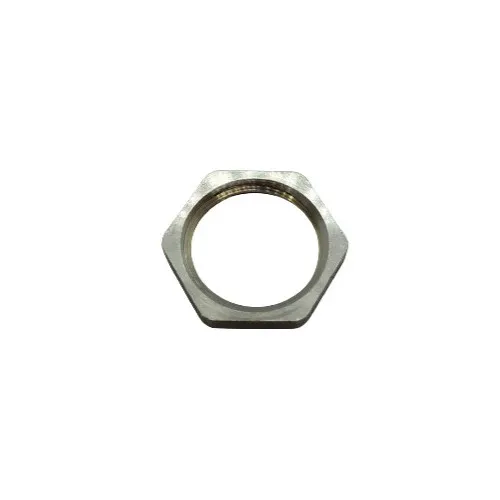

PG 48 Cable Gland Lock Nut | Nickel Plated Brass
Manufactured for panel-mounted cable gland installations, this PG 48 Plain Cable Gland Lock Nut is produced from Brass with a Nickel Plated finish. Its 64mm across-flats dimension and 5.0mm height provide clear sizing references for installation and tool access.
What Are Brass Cable Gland Lock Nuts?
A Brass cable gland lock nut secures a gland after it has been inserted through a panel or enclosure entry. The threaded ring tightens against the internal face of the panel which helps keep the cable gland correctly positioned during installation and service.
Common Applications
- Equipment Refurbishment: Replaces missing lock nuts while retaining the original PG-thread cable entry format.
- Instrumentation: Secures compatible PG glands on instrument housings and measurement equipment.
- Legacy Electrical Enclosures: Secures compatible PG-thread cable glands used on existing panels, cabinets and junction boxes.
- Control Panels: Supports PG cable gland installation on compatible control and distribution enclosures.

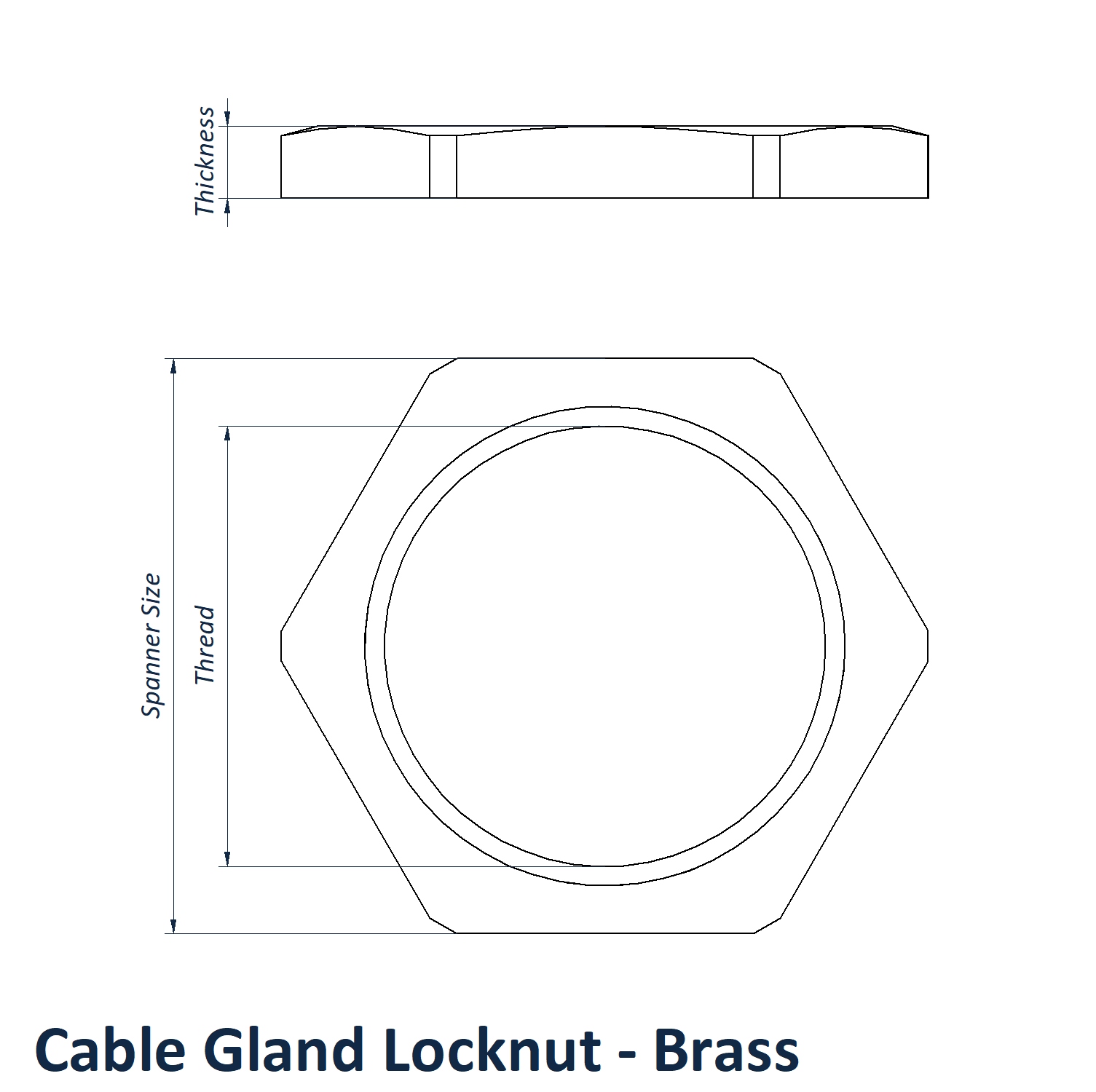

PG 48 Plain Cable Gland Lock Nut Dimensions
- Thread: PG 48
- Across Flats: 64mm
- Material: Brass
- Height: 5.0mm
- Style: Plain
- Colour/Finish: Nickel Plated
Key Benefits
- Threaded ring design secures a compatible cable gland against the internal face of a panel or enclosure.
- 5.0mm height matches the uploaded lock nut profile.
- Brass construction provides a robust metal fastening option for cable gland installations.
- The wider range also includes A2 stainless steel and Nylon lock nuts for different installation requirements.
See related sizes and materials in the Cable Gland Lock Nuts category. The wider range covers A2 stainless steel, brass and nylon alongside EMC/shielded styles. For product selection support, contact our technical sales team on 01233 713581.
