M5 x 14mm Cap Head Captive Screw (H4) (~DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.27 | £3.93 |
| 50 - 99 | £2.91 | £3.49 |
| 100 - 249 | £2.62 | £3.14 |
| 250 - 499 | £2.38 | £2.86 |
| 500 - 999 | £2.18 | £2.62 |
| 1000 + | £1.88 | £2.25 |
£3.93 / each
Product Specification
| Thread Size | M5 |
| Pitch | 0.80mm |
| Length | 14mm |
| Captive Diameter | 3.8mm |
| Threaded Length | 5.0mm |
| Drive | H4 |
| Head Diameter | 8.5mm |
| Head Height | 5.0mm |
| Material | A2 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00

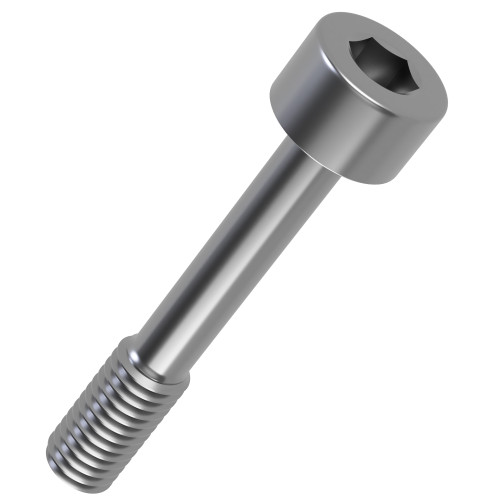

M5 x 14mm Captive Socket Cap Head Screw | Similar to DIN 912 | A2 Stainless Steel
Providing a retained fixing for machinery guards, equipment covers and service panels, this M5 x 14mm captive socket cap head screw combines a hex socket cap head with a purpose-designed captive diameter. The format helps keep the screw with the assembly during inspection, adjustment or maintenance when used with a compatible retention method. A2 Stainless Steel provides good corrosion resistance for general engineering, machinery, equipment and indoor or suitably protected external applications.
What Are Captive Socket Cap Head Screws?
Cap Head Captive Screws combine a DIN 912-style socket cap head with a reduced section intended for captive retention. They are useful on equipment that requires repeated access because the screw can remain with the removable part during servicing which reduces the chance of loose fixings being dropped or misplaced.
Common Applications
- Jigs and Fixtures: Keeps adjustment or access fasteners associated with suitable workshop fixtures and production tooling.
- Laboratory Equipment: Supports retained panel fixing on instruments and serviceable technical equipment.
- Fabricated Housings: Provides a captive fastening format for custom covers, guards and equipment enclosures.
- General Engineering: Useful where a screw needs to remain attached to the assembly after disengaging from its mating thread.

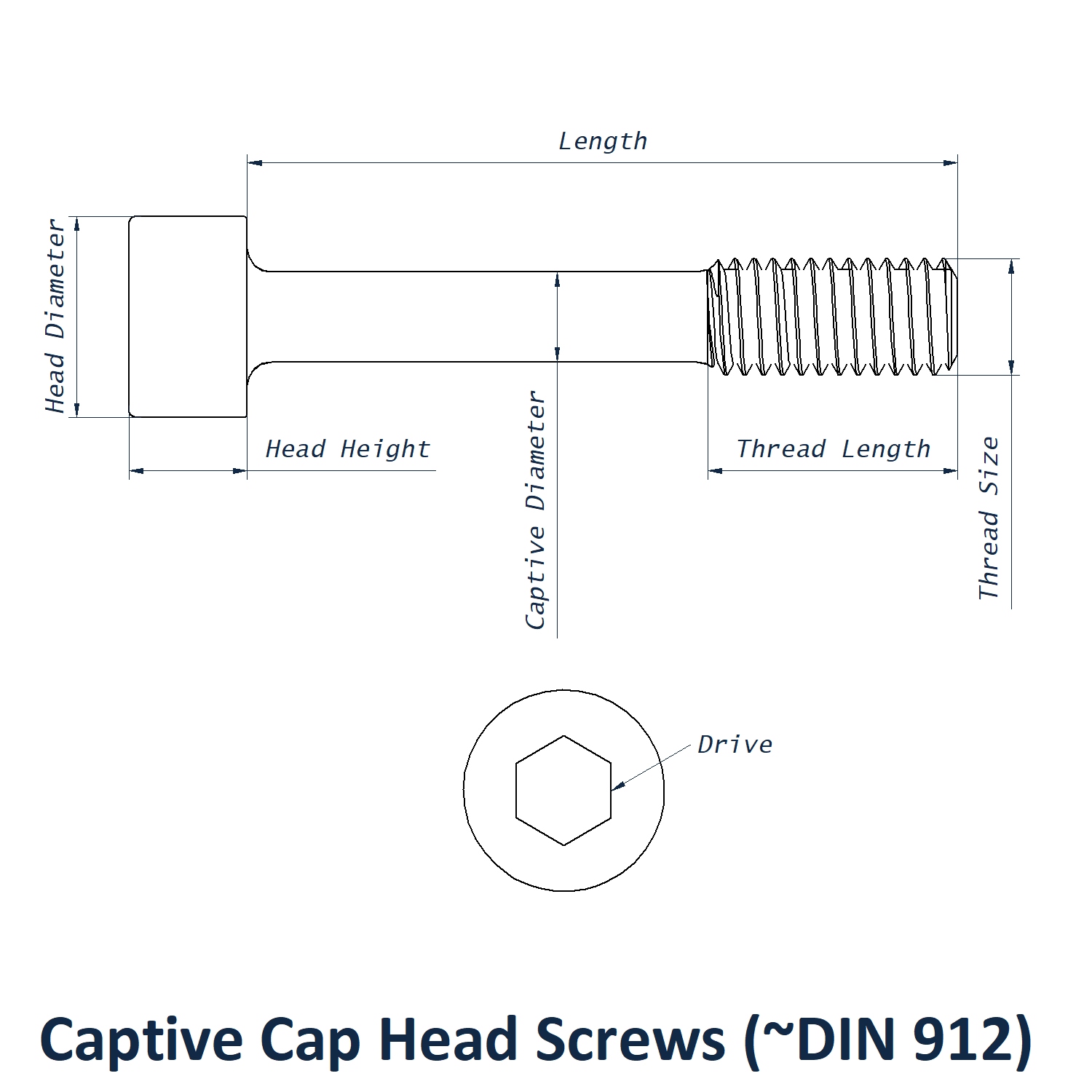

M5 x 14mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M5
- Length: 14mm
- Threaded Length: 5.0mm
- Captive Diameter: 3.8mm
- Head Diameter: 8.5mm
- Head Height: 5.0mm
- Drive: H4
- Pitch: 0.80mm
- Standard: Similar to DIN 912
- Material: A2 Stainless Steel
Key Benefits
- 5.0mm head height provides the specified socket cap head profile.
- 0.80mm metric pitch matches the stated thread specification.
- Captive format can reduce dropped or misplaced fasteners during servicing when installed with a suitable retaining feature.
- 5.0mm threaded length provides the portion that engages the mating internal thread.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. If a cap head is not the right profile, see our full Captive Screws range where we also stock countersunk captive screw options. We can help you choose the correct option on 01233 713581.
