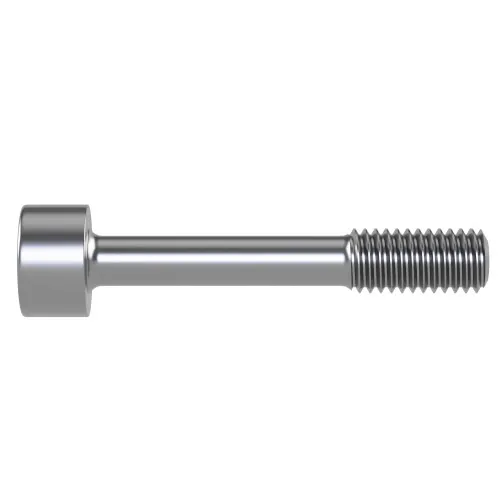

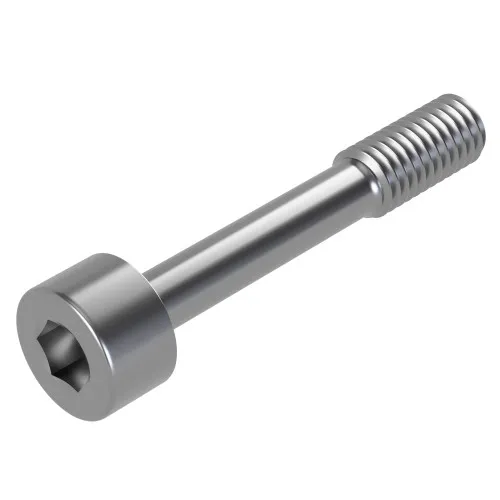

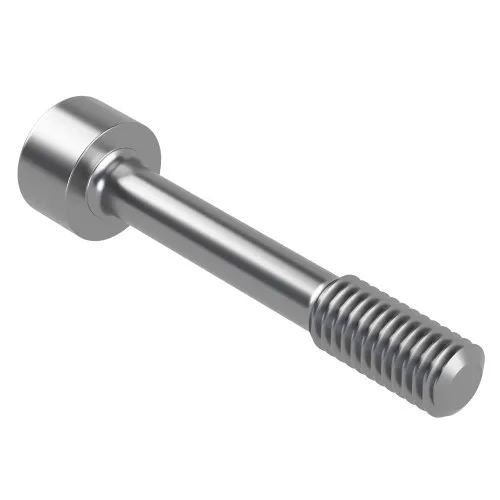

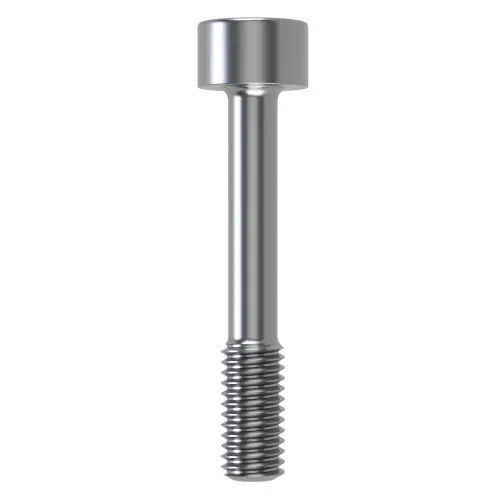

M8 x 22mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £3.62 | £4.35 |
| 50 - 99 | £3.23 | £3.87 |
| 100 - 249 | £2.90 | £3.48 |
| 250 - 499 | £2.63 | £3.16 |
| 500 - 999 | £2.42 | £2.90 |
| 1000 + | £2.08 | £2.49 |
£4.35 / each
.png)
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 22mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 8.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 22mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
This M8 x 22mm cap head captive screw is designed for machinery guards, equipment covers and service panels where the fixing needs to remain attached after it has been loosened. The 8.0mm threaded length provides the fastening section while the reduced 6.2mm captive diameter is intended to work with a compatible panel, washer, sleeve or retaining feature. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Cap Head Captive Screws combine a DIN 912-style socket cap head with a reduced section intended for captive retention. They are useful on equipment that requires repeated access because the screw can remain with the removable part during servicing which reduces the chance of loose fixings being dropped or misplaced.
Common Applications
- Industrial Enclosures: Provides a retained fastening point for covers and doors on suitable equipment housings.
- Instrumentation: Keeps small fastening hardware attached to precision panels, test equipment and technical housings.
- Automation Equipment: Supports repeat-access panels on machinery, control systems and production equipment.
- Transport Equipment: Provides retained fixings for suitable removable covers and inspection panels.
M8 x 22mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 22mm
- Threaded Length: 8.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 13.0mm head diameter gives the stated DIN 912-style cap head width.
- H6 hex socket drive provides positive engagement with a matching driver or key.
- A4 Stainless Steel construction provides the specified stainless steel grade and corrosion resistance.
- M8 thread size with 22mm overall length provides the primary screw dimensions.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. Our wider Captive Screws range includes countersunk captive screws plus other head styles for different access, clearance and installation requirements. We can help you choose the correct option on 01233 713581.
