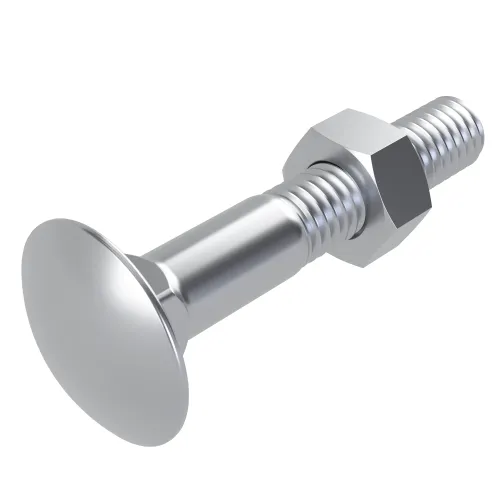

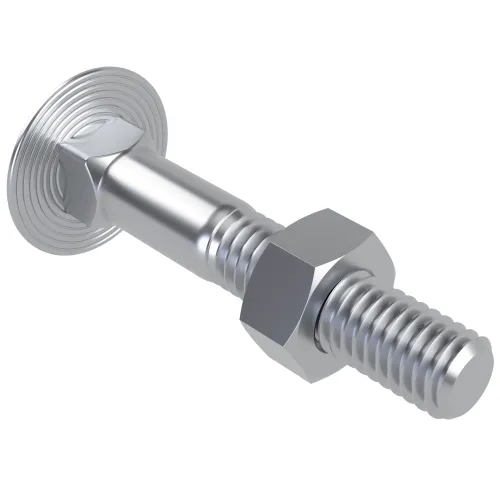

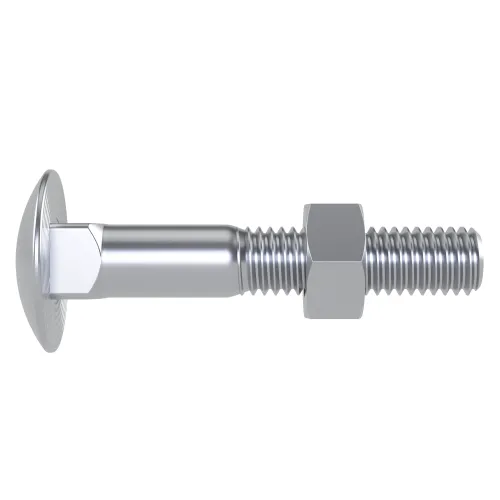

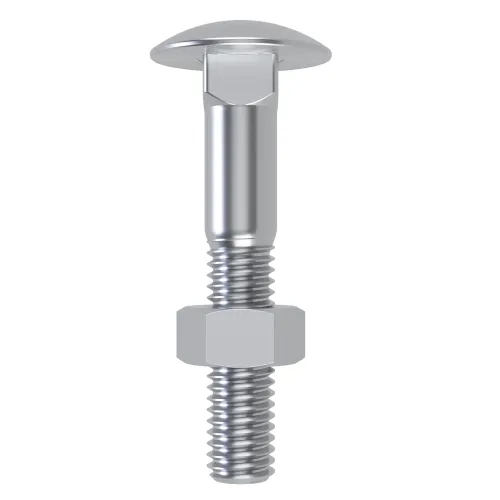

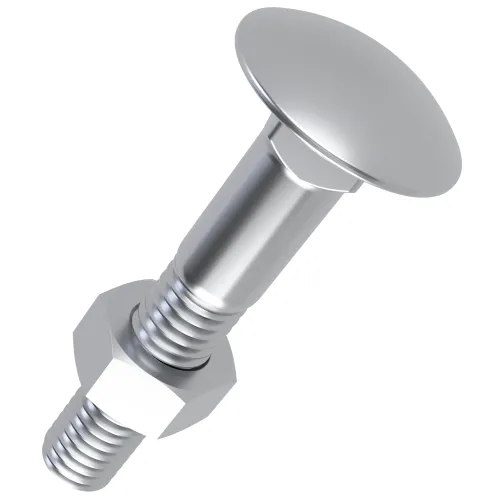

M10 x 120mm Coach Bolt & Nut (DIN 603) - Part Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.68 | £0.81 |
| 100 - 999 | £0.60 | £0.72 |
| 1000 - 9999 | £0.51 | £0.61 |
| 10000 + | £0.42 | £0.51 |
£0.81 / each
Product Specification
| Thread Size | M10 |
| Length | 120mm |
| Thread Length | 26mm |
| Pitch | 1.50mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 24.65mm |
| Head Height | 5.38mm |
| Square Width | 10mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M10 x 120mm Coach Bolt & Nut (DIN 603) | 26mm Thread Length | CE Certified 4.8 Steel BZP
This M10 x 120mm Coach Bolt & Nut is selected for general engineering, including bracing plates, timber-to-steel joints and repair frames where the fixing needs to clamp firmly while keeping the head face smooth. The DIN 603 form gives a consistent square neck, head diameter and metric thread.
With a 1.50mm pitch and 5.38mm head height, this size is easy to specify for repair work and repeat production. The BZP finish supports everyday corrosion resistance in dry environments while the coach bolt head gives a clean installed appearance. The supplied DIN 555 nut complements the DIN 603 coach bolt and supports a secure clamped connection. The CE certified specification supports consistent use in regulated supply chains and trade counters. This size suits projects where a stronger fixing is needed without moving to larger heavy section hardware.
Common Applications
- Repairing deeper timber sections, spacer blocks and braced frames using an M10 metric coach bolt.
- General engineering where the round head needs to remain neat and low snag.
- Maintaining commercial fittings and equipment frames with a supplied DIN 555 nut for a complete fixing set.
- Securing through-fixing where extra reach is required on 120mm coach bolt installations.

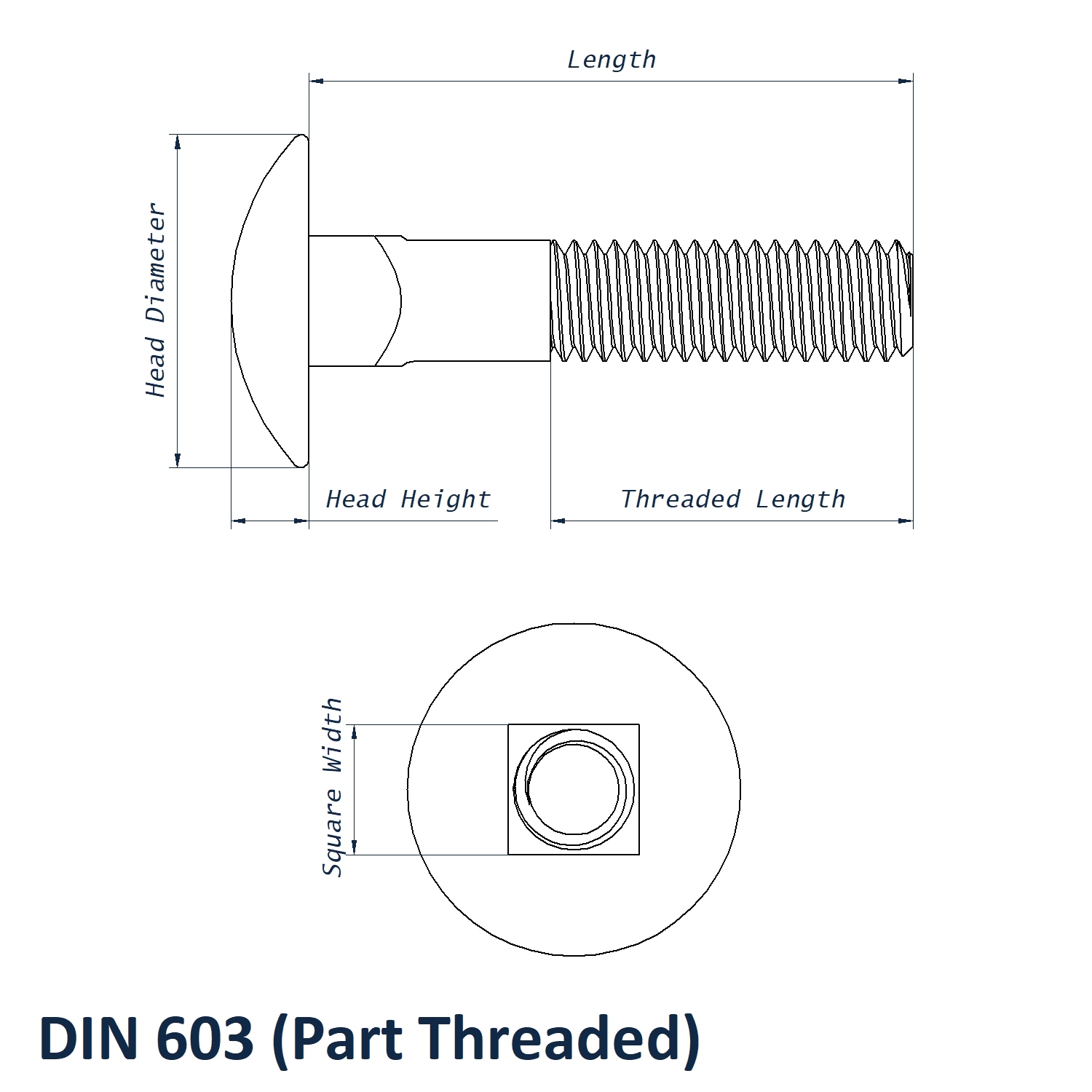

M10 x 120mm Coach Bolt & Nut Dimensions
- Thread Size: M10
- Length: 120mm
- Threaded Length: 26mm
- Pitch: 1.50mm
- Head Diameter: 24.65mm
- Head Height: 5.38mm
- Square Width: 10mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
