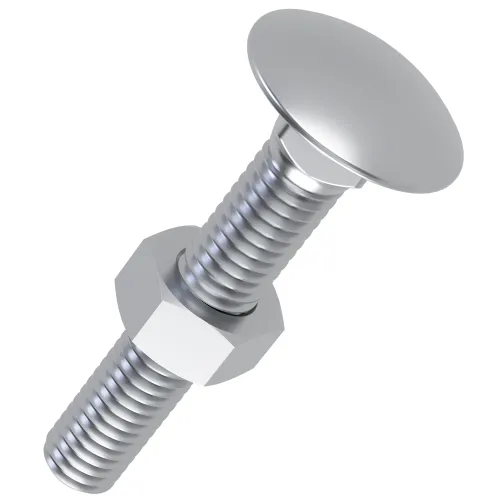

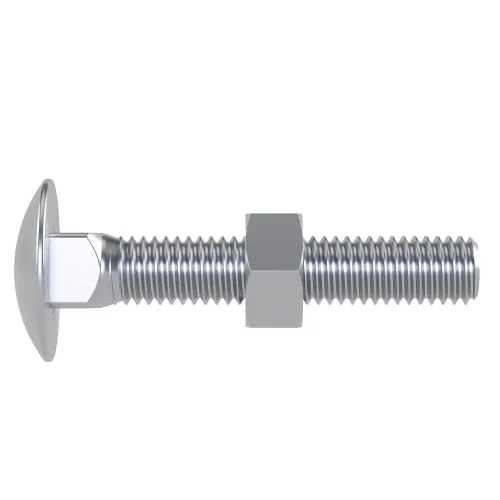

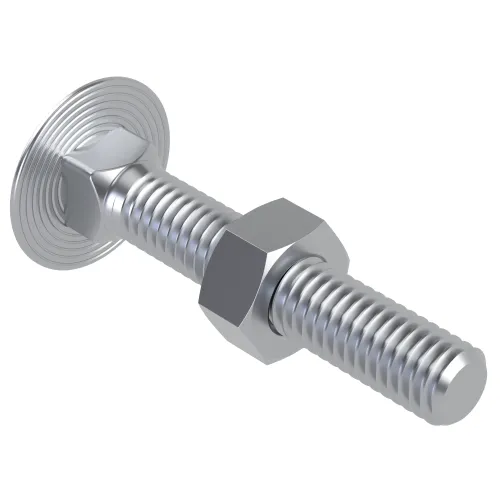

M16 x 50mm Coach Bolt & Nut (DIN 603) - Full Thread | CE Certified 4.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.28 | £1.54 |
| 100 - 999 | £1.14 | £1.37 |
| 1000 - 9999 | £0.97 | £1.16 |
| 10000 + | £0.80 | £0.96 |
£1.54 / each
Product Specification
| Thread Size | M16 |
| Length | 50mm |
| Thread Length | Fully Threaded |
| Pitch | 2.00mm |
| Material | 4.8 Steel BZP |
| Head Diameter | 38.80mm |
| Head Height | 8.95mm |
| Square Width | 16mm |
| Standard | DIN 603 |
Frequently Bought Together
Total Price: £0.00
M16 x 50mm Coach Bolt & Nut (DIN 603) | Fully Threaded | CE Certified 4.8 Steel BZP
This M16 x 50mm Coach Bolt & Nut is selected for general engineering, including bracing plates, timber-to-steel joints and repair frames where the fixing needs to clamp firmly while keeping the head face smooth. The DIN 603 form gives a consistent square neck, head diameter and metric thread.
The CE certified 4.8 steel construction supports dependable performance for non-specialist structural and repair work. Its BZP coating gives a bright zinc plated finish for clean presentation on brackets, rails and timber frames. The supplied DIN 555 nut complements the DIN 603 coach bolt and supports a secure clamped connection. The CE certified specification supports consistent use in regulated supply chains and trade counters. It is intended for robust structures, large brackets and deeper material stacks.
Common Applications
- Repairing timber rails, boards and light section supports using an M16 metric coach bolt.
- General engineering where the round head needs to remain neat and low snag.
- Maintaining commercial fittings and equipment frames with a supplied DIN 555 nut for a complete fixing set.
- Securing general assembly where a balanced grip length is needed on 50mm coach bolt installations.

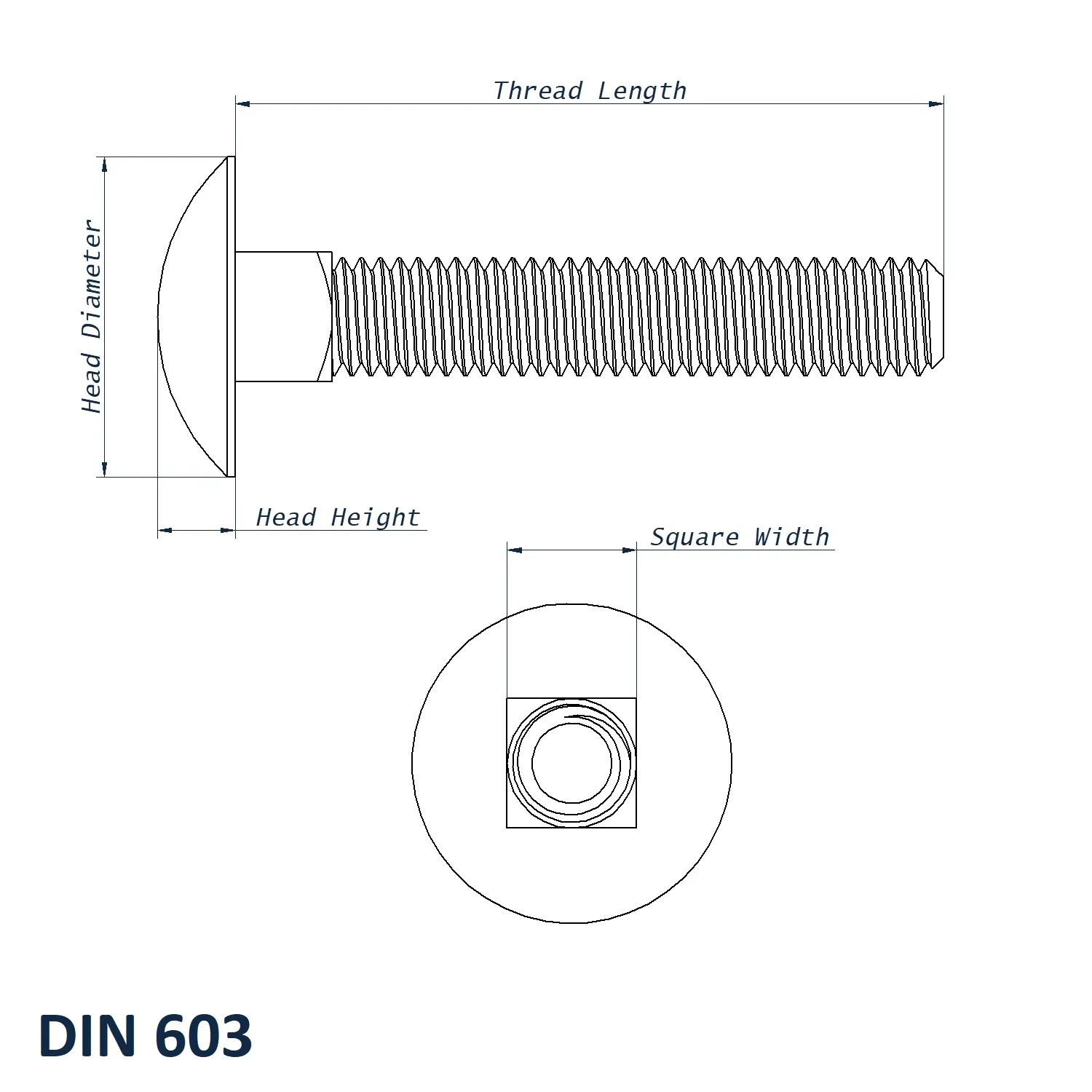

M16 x 50mm Coach Bolt & Nut Dimensions
- Thread Size: M16
- Length: 50mm
- Threaded Length: Fully Threaded
- Pitch: 2.00mm
- Head Diameter: 38.80mm
- Head Height: 8.95mm
- Square Width: 16mm
- Standard: DIN 603
- Material: 4.8 Steel BZP
- Colour: BZP
View our full range of Hex Head Screws and Bolts.
