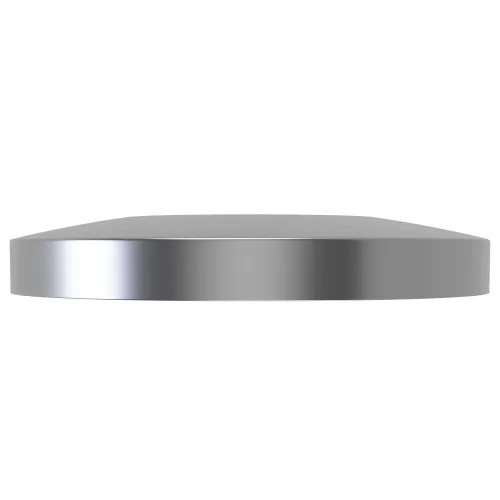

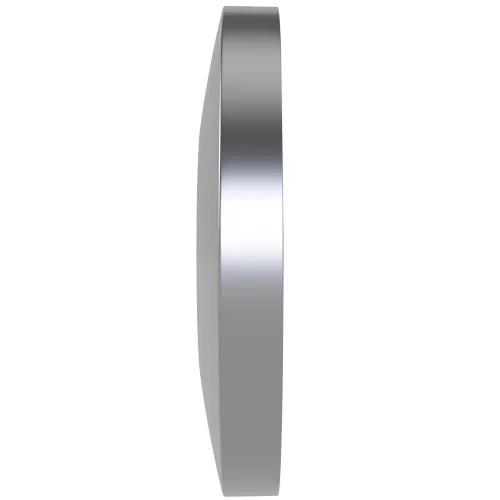

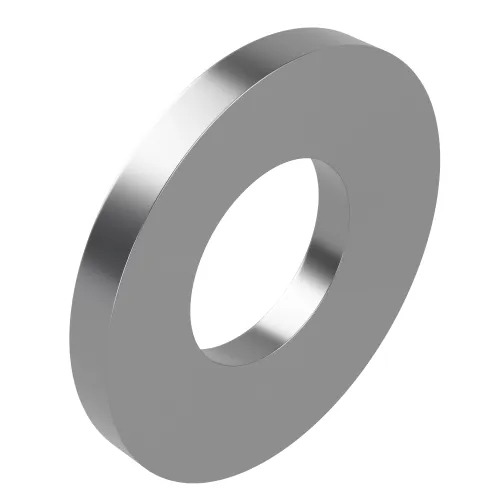

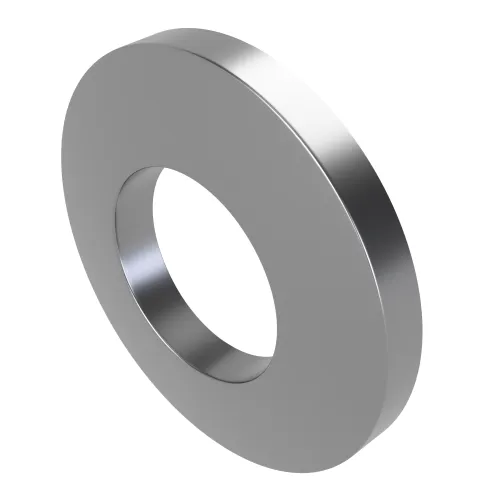

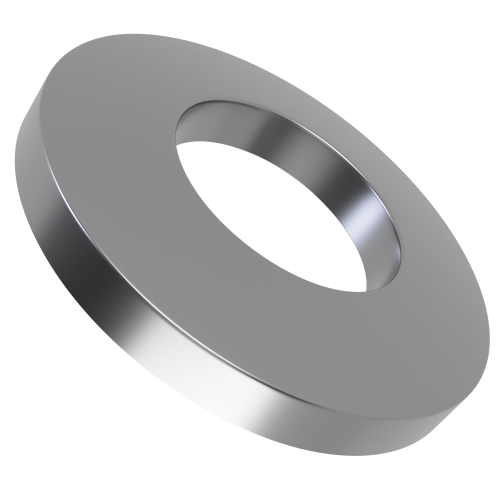

M24 x 25.0mm (ID) x 56mm (OD) Conical Spring Washer DIN 6796 | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.31 | £3.97 |
| 100 - 999 | £2.83 | £3.40 |
| 1000 - 9999 | £2.48 | £2.98 |
| 10000 + | £1.98 | £2.38 |
£3.97 / each
.png)

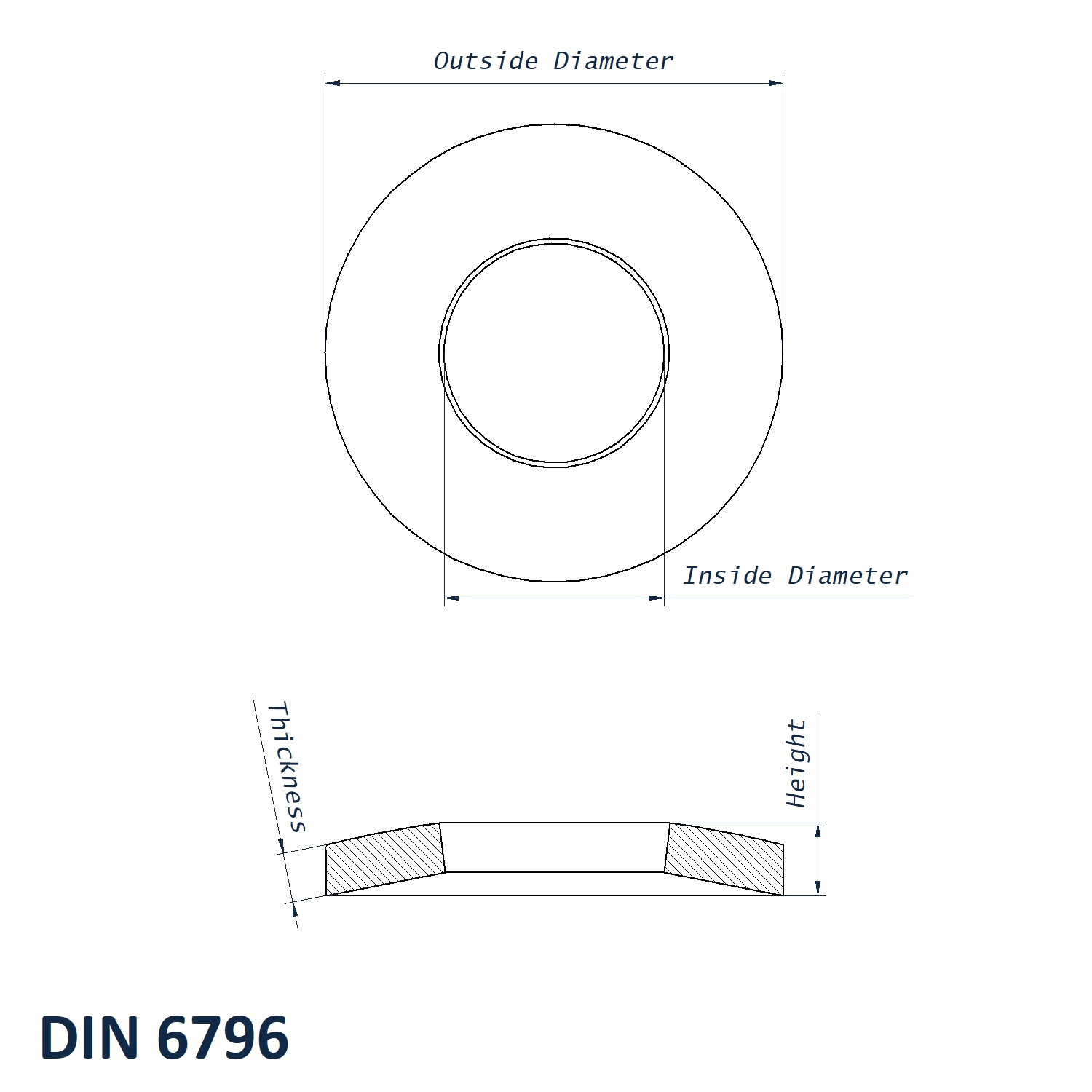

Product Specification
| Size | M24 |
| Internal Diameter | 25.0mm |
| Outside Diameter | 56mm |
| Height | 7.75mm |
| Thickness | 6.0mm |
| Material | A4 Stainless Steel |
| Standard | DIN 6796 |
Frequently Bought Together
Total Price: £0.00
M24 x 25.0mm (ID) x 56mm (OD) Conical Spring Washer DIN 6796 | A4 Stainless Steel - SPW6796-M24-A4
The SPW6796-M24-A4 is a M24 Conical Spring Washer manufactured to DIN 6796 from A4 Stainless Steel. Conical Spring Washers are also widely known as Belleville Washers or Belleville Washers. Their conical profile allows the washer to deflect under load, helping maintain tension within a bolted joint where vibration, movement or thermal cycling may otherwise contribute to loosening.
What are Conical Spring Washers?
Conical Spring Washers, also known as Belleville Washers, are disc-shaped spring components designed to apply an axial spring force when compressed. They are commonly fitted beneath a bolt head or nut to help compensate for settlement, relaxation and changes in joint loading.
Technical Specifications:
- Size: M24
- Internal Diameter: 25.0mm
- Outside Diameter: 56mm
- Thickness: 6.0mm
- Height: 7.75mm
- Standard: DIN 6796
- Material: A4 Stainless Steel
Applications:
Suitable for bolted assemblies, machinery, engineering equipment, automotive applications, fabricated structures and other installations where maintaining preload and accommodating movement are important.
Benefits:
- Helps maintain bolt tension under changing loads.
- Can compensate for joint settlement and thermal expansion.
- Compact spring action within a small axial space.
- A4 Stainless Steel construction provides corrosion resistance for demanding environments.
