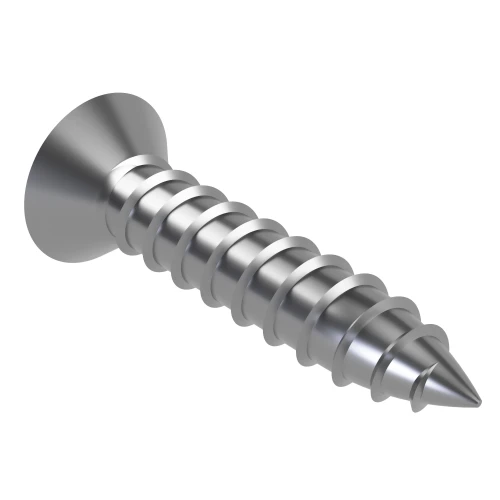

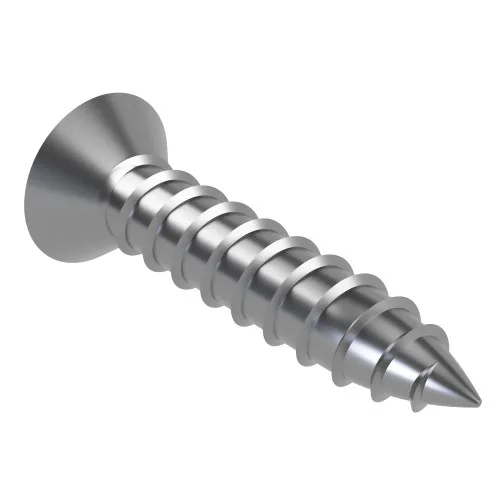

6.3mm x 13mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.42 | £0.51 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.18 | £0.22 |
| 1000 + | £0.14 | £0.17 |
£0.51 / each
.png)
Product Specification
| Thread Size | 6.3mm |
| Length | 13mm |
| Material | A2 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 13mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | A2 Stainless Steel
A practical choice for securing metal cappings, this 6.3mm x 13mm sheet metal countersunk screw helps reduce extra threading work during panel assembly.
The PH3 recess helps with steady installation while the AB point reduces the need for pre-tapped holes in suitable materials. This makes it practical for flush countersunk screw use and sheet fixing screw work.
Common Applications
- Fastening machine guards
- Attaching metal mounting plates
- Fixing ventilation grilles
- Mounting metal retainer plates
6.3mm x 13mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 13mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
