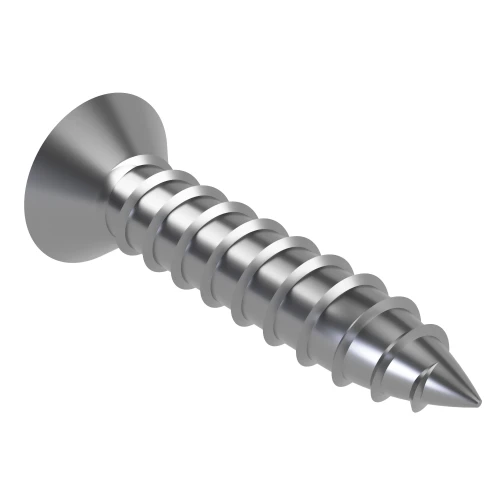

6.3mm x 90mm Phillips Countersunk AB Self Tapping Screw (DIN 7982CH) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.67 | £4.40 |
| 100 - 499 | £1.87 | £2.24 |
| 500 - 999 | £1.57 | £1.89 |
| 1000 + | £1.20 | £1.44 |
Product Specification
| Thread Size | 6.3mm |
| Length | 90.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Phillips |
| Drive | PH3 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982CH |
Frequently Bought Together
Total Price: £0.00
6.3mm x 90mm Phillips Countersunk AB Self Tapping Screw DIN 7982CH | Marine Grade A4 Stainless Steel
Chosen for compact panel builds, this 6.3mm x 90mm flush fixing self tapping screw helps with securing electrical panels in display hardware work.
Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for display hardware where corrosion resistance is important. Its countersunk design supports a clean finish across panels, covers and fabricated metal parts.
Common Applications
- Fixing enclosure trims
- Securing removable maintenance covers
- Fixing signage plates
- Retaining service plates
6.3mm x 90mm Phillips Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 90mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- End Type: AB
- Drive: PH3
- Drive Type: Phillips
- Standard: DIN 7982CH
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
