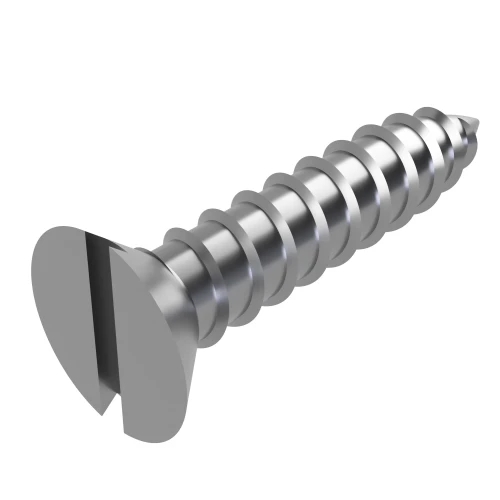

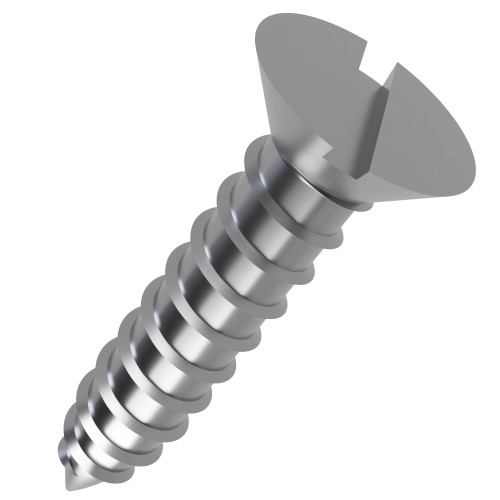

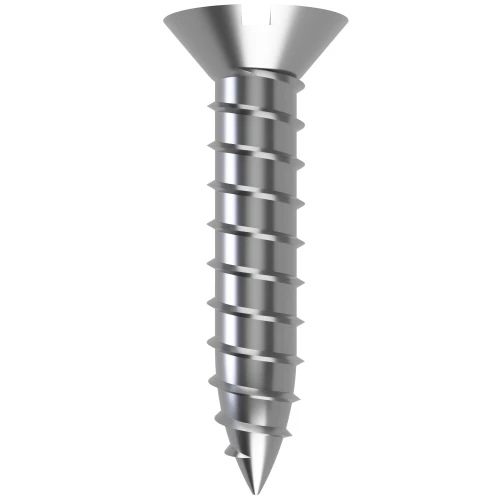

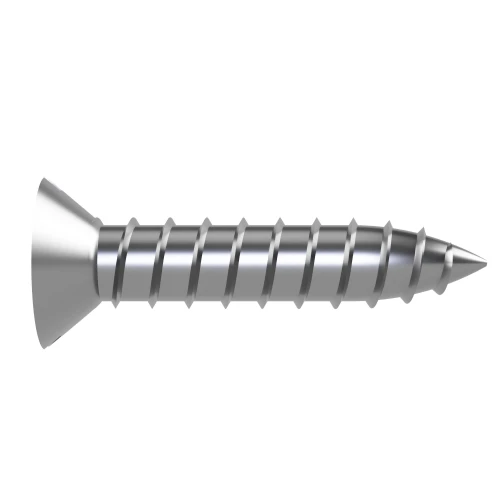

6.3mm x 25mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.68 | £0.82 |
| 100 - 499 | £0.34 | £0.41 |
| 500 - 999 | £0.30 | £0.36 |
| 1000 + | £0.26 | £0.31 |
£0.82 / each
Product Specification
| Thread Size | 6.3mm |
| Length | 25mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
6.3mm x 25mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
Built with an AB end type, this 6.3mm x 25mm self cutting countersunk screw is intended for retaining enclosure lids where the fixing needs to form its own thread.
A2 stainless steel supports corrosion resistance and consistent performance in electrical enclosure work where secure fixing in prepared holes is required. Its countersunk design supports a clean finish across panels, covers and fabricated metal parts.
Common Applications
- Installing control panels
- Assembling equipment panels
- Mounting steel blanking plates
- Securing control cabinet fittings

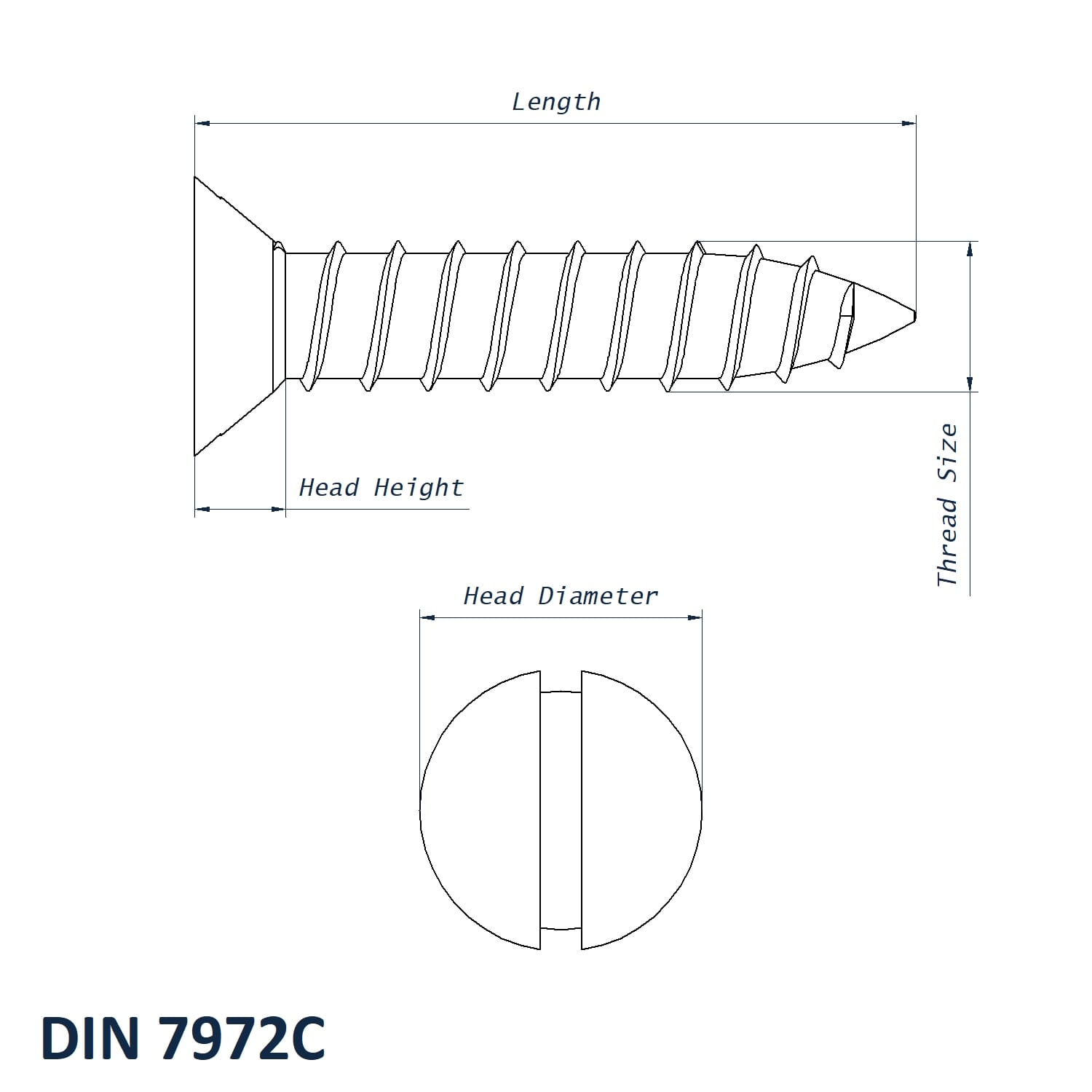

6.3mm x 25mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 6.3mm
- Length: 25mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
