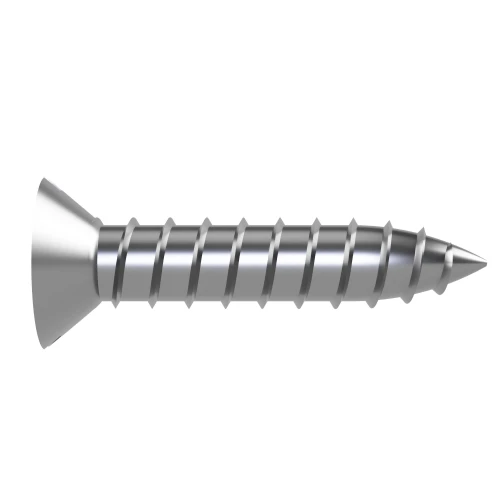

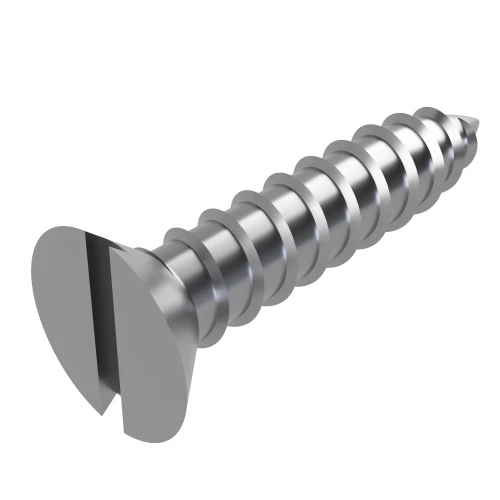

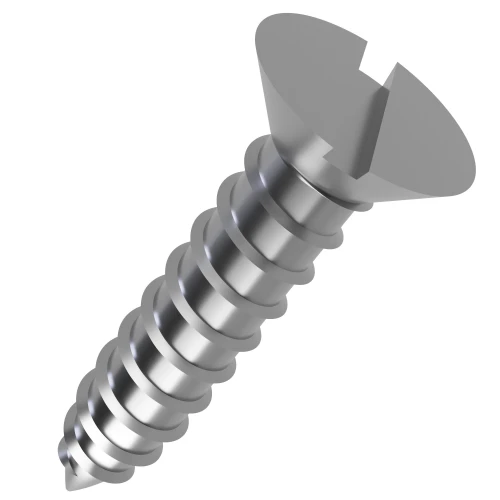

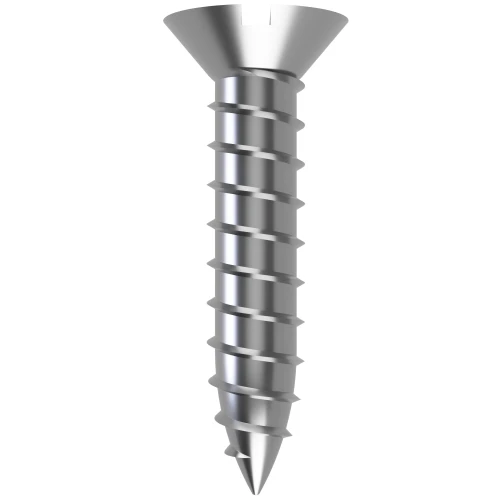

6.3mm x 45mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.20 | £1.44 |
| 100 - 499 | £0.60 | £0.72 |
| 500 - 999 | £0.53 | £0.63 |
| 1000 + | £0.46 | £0.55 |
£1.44 / each
.png)
Product Specification
| Thread Size | 6.3mm |
| Length | 45mm |
| Material | A2 Stainless Steel |
| Drive Type | Slotted |
| Drive | Slotted |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7972C |
Frequently Bought Together
Total Price: £0.00
6.3mm x 45mm Slotted Countersunk AB Self Tapping Screw DIN 7972C | A2 Stainless Steel
Where a raised screw head would interfere with use, this 6.3mm x 45mm flush fixing self tapping screw gives a flush option for securing metal fascia panels.
The 12.4mm head diameter provides a practical seating area and the Slotted drive helps maintain control during installation. A2 stainless steel supports corrosion resistance and consistent performance in display hardware work where accurate alignment is required.
Common Applications
- Securing control cabinet fittings
- Retaining sheet metal trims
- Mounting fabricated panels
- Attaching cable management plates

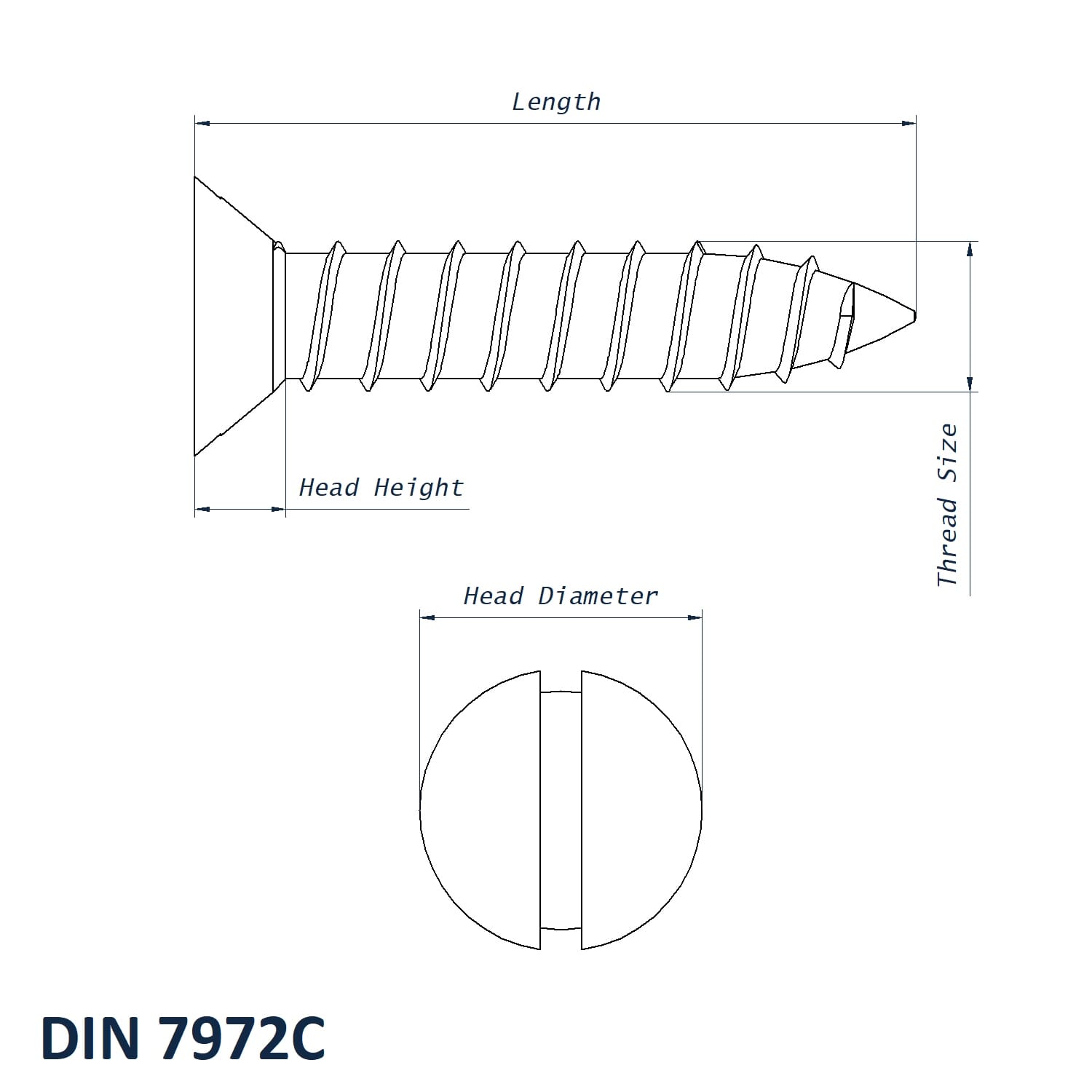

6.3mm x 45mm Slotted Countersunk Screw DIN 7972C Dimensions
- Thread Size: 6.3mm
- Length: 45mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: Slotted
- End Type: AB
- Drive Type: Slotted
- Standard: DIN 7972C
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
