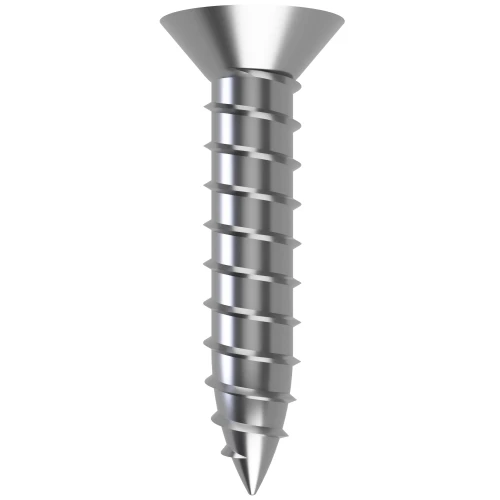

3.5mm x 9.5mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.21 | £0.25 |
| 100 - 499 | £0.12 | £0.14 |
| 500 - 999 | £0.09 | £0.11 |
| 1000 + | £0.08 | £0.10 |
Product Specification
| Thread Size | 3.5mm |
| Length | 9.5mm |
| Material | A4 Stainless Steel |
| Drive Type | Torx |
| Drive | T10 |
| End Type | AB |
| Head Diameter | 6.8mm |
| Head Height | 2.10mm |
| Standard | DIN 7982C |
Frequently Bought Together
Total Price: £0.00
3.5mm x 9.5mm Torx Countersunk AB Self Tapping Screw DIN 7982C | Marine Grade A4 Stainless Steel
For light gauge sheet work, this 3.5mm x 9.5mm flush fixing self tapping screw gives a practical option for securing light gauge metalwork in control cabinet applications.
Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for control cabinet where clean panel presentation is important. The AB end helps form a mating thread, making it useful for self threading screw installations, panel fixing screw work and fabrication screw requirements.
Common Applications
- Installing fabricated brackets
- Fixing storage system panels
- Securing production line covers
- Securing agricultural guards
3.5mm x 9.5mm Torx Countersunk Screw DIN 7982C Dimensions
- Thread Size: 3.5mm
- Length: 9.5mm
- Head Diameter: 6.8mm
- Head Height: 2.10mm
- Drive: T10
- End Type: AB
- Drive Type: Torx
- Standard: DIN 7982C
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
