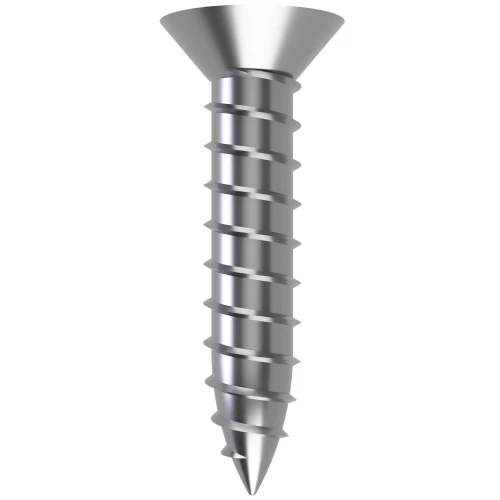

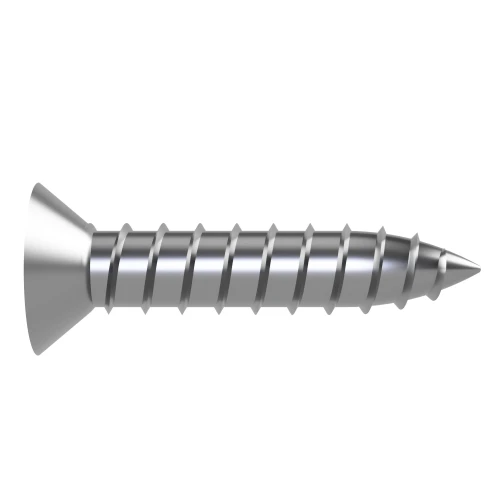

6.3mm x 22mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.10 | £1.32 |
| 100 - 499 | £0.60 | £0.72 |
| 500 - 999 | £0.50 | £0.60 |
| 1000 + | £0.42 | £0.51 |
Product Specification
| Thread Size | 6.3mm |
| Length | 22.0mm |
| Material | A4 Stainless Steel |
| Drive Type | Torx |
| Drive | T30 |
| End Type | AB |
| Head Diameter | 12.4mm |
| Head Height | 3.80mm |
| Standard | DIN 7982C |
Frequently Bought Together
Total Price: £0.00
6.3mm x 22mm Torx Countersunk AB Self Tapping Screw DIN 7982C | Marine Grade A4 Stainless Steel
For prepared holes in compatible sheet materials, this 6.3mm x 22mm AB thread forming screw helps installers carry out fixing storage system panels efficiently.
With a 3.80mm head height and 12.4mm head diameter, the design gives controlled seating in countersunk holes. Marine grade A4 stainless steel gives stronger resistance in damp or exposed settings, making it suitable for industrial machinery where a broader bearing surface is important.
Common Applications
- Assembling metal cabinets
- Retaining protective shrouds
- Fixing bodywork reinforcement plates
- Fitting trailer body panels

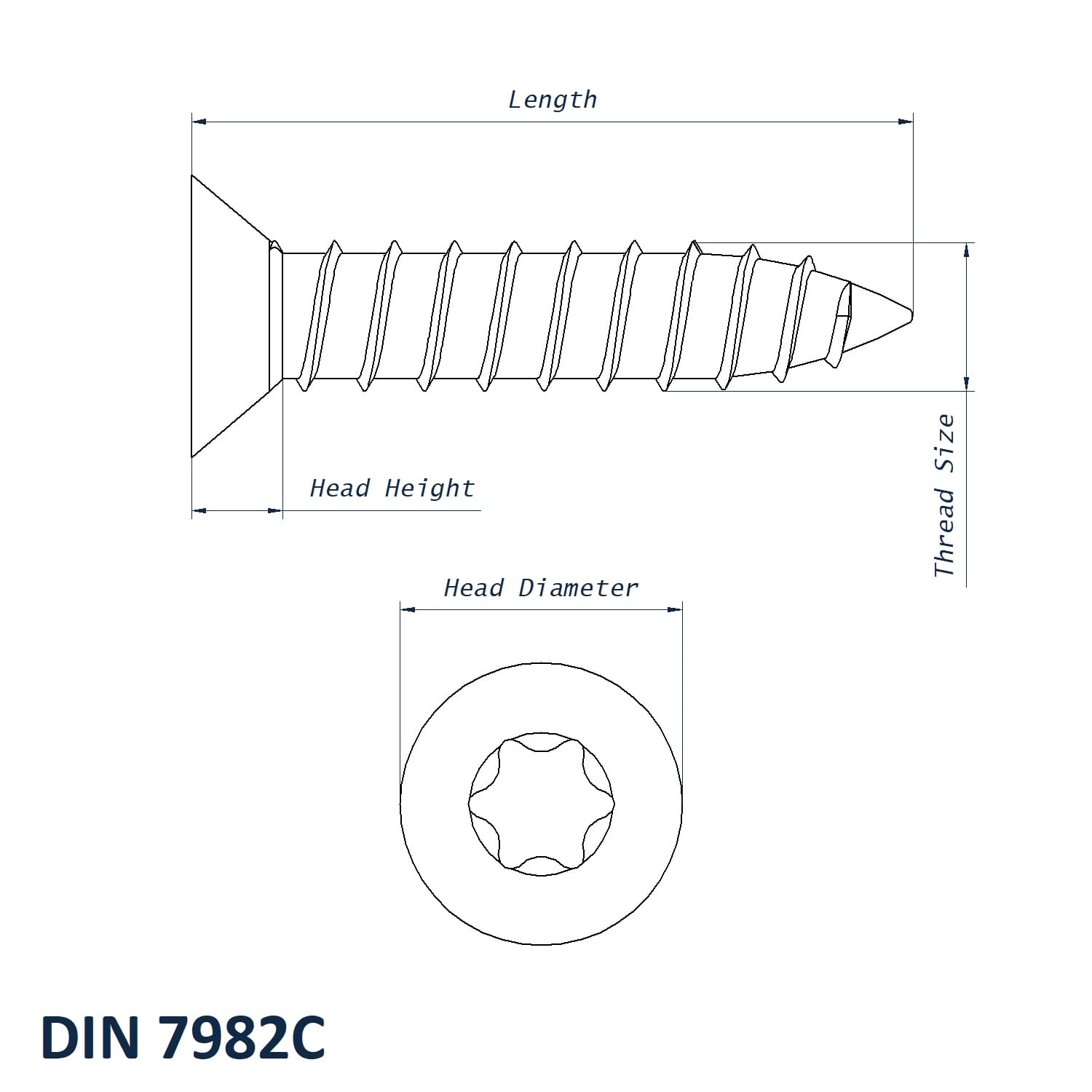

6.3mm x 22mm Torx Countersunk Screw DIN 7982C Dimensions
- Thread Size: 6.3mm
- Length: 22mm
- Head Diameter: 12.4mm
- Head Height: 3.80mm
- Drive: T30
- End Type: AB
- Drive Type: Torx
- Standard: DIN 7982C
- Material: Marine Grade A4 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
