Ergonomic Clamping Handle - HW143

Product code: HW143
View All Specifications

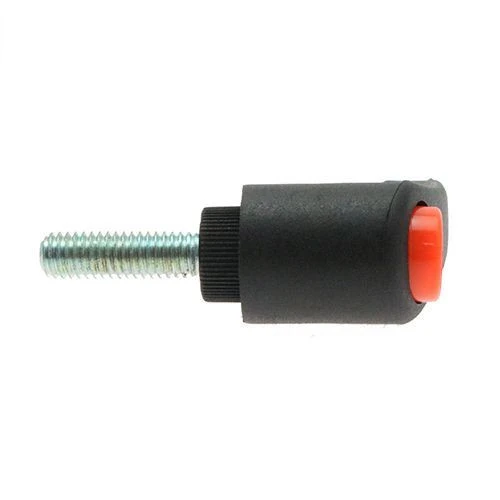

Black M6 x 10mm Ergonomic Clamping Handles

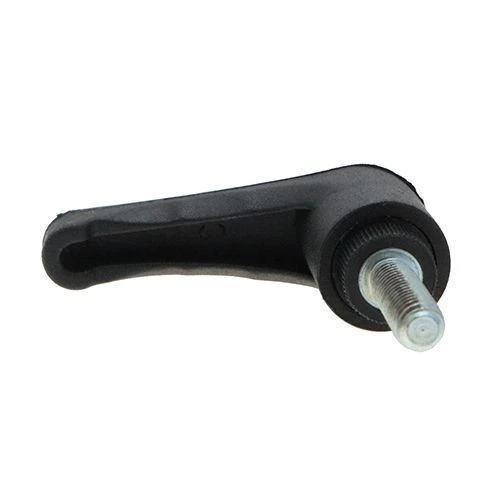

Black M6 x 10mm Ergonomic Clamping Handles
Black M6 x 10mm Ergonomic Clamping Handles
Black M6 x 10mm Ergonomic Clamping Handles
Black M6 x 10mm Ergonomic Clamping Handles
Black M6 x 10mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £2.74 £3.29
10 - 24 £2.23 £2.67
25 - 49 £2.05 £2.46
50 - 99 £1.78 £2.14
100 - 499 £1.44 £1.73
500 + £1.23 £1.48

£3.29 / each


Up to 1 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 277 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
277 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6 x 10mm
Thread Type Male
Handle Length 43mm
Height 29mm
Shank Diameter 12mm
Handle Material Nylon
Thread Material A2 Stainless Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 10mm Male Ergonomic Clamping Handle | 43mm Handle | Black/Orange Nylon | A2 Stainless Steel Thread

Designed for toolmaking, assembly fixtures and maintenance equipment, this M6 x 10mm ergonomic clamping lever uses a male threaded stud to clamp or secure a compatible component. The ergonomic Nylon handle can be repositioned through the indexed mechanism when surrounding equipment limits continuous rotation. The A2 Stainless Steel threaded component provides good corrosion resistance for suitable engineering and equipment applications.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

Different applications may suit other adjustable handles, including alternative handle shapes, materials and male or female thread options.

Common Applications

  • Adjustable Guides: Locks guides and stops in position while allowing regular repositioning without separate tools.
  • Maintenance Equipment: Provides a convenient hand-operated fixing for serviceable brackets, covers and adjustable components.
  • Production Tooling: Supports repeated clamping and release on suitable manufacturing fixtures and tooling.
  • Technical Equipment: Provides an indexed lever for adjustable brackets, panels and mechanical assemblies.

M6 x 10mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M6 x 10mm
  • Thread Type: Male
  • Handle Length: 43mm
  • Height: 29mm
  • Shank Diameter: 12mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: A2 Stainless Steel

Key Benefits

  • M6 x 10mm male thread provides the specified connection for the clamping assembly.
  • 29mm overall height defines the installed handle profile.
  • Black Nylon handle with Orange button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.

Browse more male ratchet clamping handles to compare male and female threads, handle lengths, colours and thread materials. If you need help selecting the correct handle, call us on 01233 713581.
