Ergonomic Clamping Handle - HW161

Product code: HW161
View All Specifications

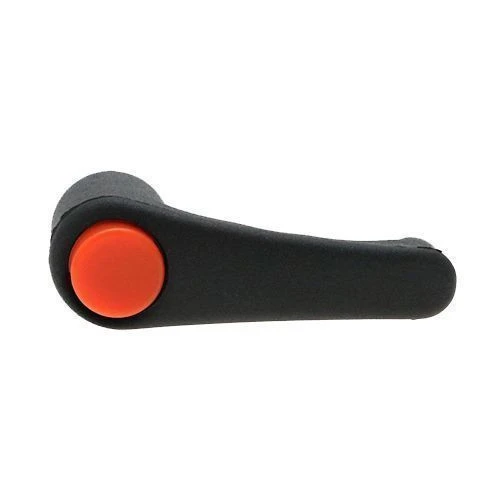

Black M10 x 20mm Ergonomic Clamping Handles

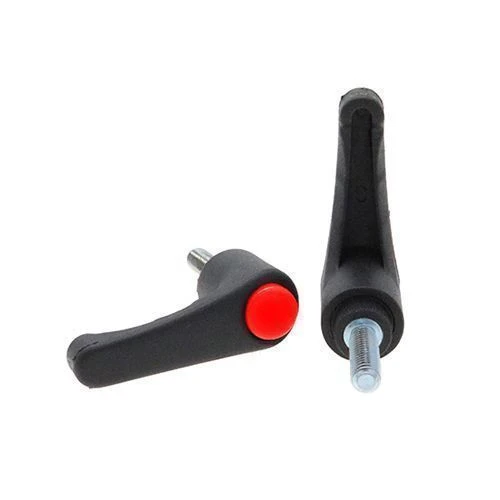

Black M10 x 20mm Ergonomic Clamping Handles

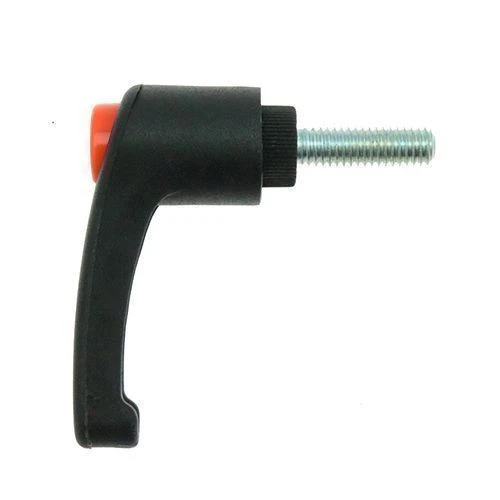

Black M10 x 20mm Ergonomic Clamping Handles

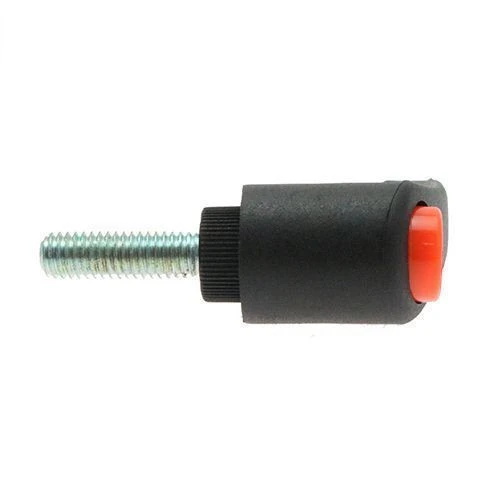

Black M10 x 20mm Ergonomic Clamping Handles
Black M10 x 20mm Ergonomic Clamping Handles
Black M10 x 20mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.17 £3.81
10 - 24 £2.58 £3.10
25 - 49 £2.38 £2.86
50 - 99 £2.07 £2.48
100 - 499 £1.67 £2.00
500 + £1.43 £1.72

£3.81 / each


Up to 5 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 659 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
659 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10 x 20mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 20mm Male Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | Steel Thread

This M10 x 20mm male ergonomic clamping handle combines a projecting threaded stud with an ergonomic Nylon lever for toolmaking, assembly fixtures and maintenance equipment. The 83mm handle length provides useful leverage while the indexed ratchet action allows the lever position to be reset after tightening. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.

For additional manual adjustment options, compare our wider adjustable handles selection across several handle styles and materials.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

M10 x 20mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M10 x 20mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Black Nylon handle with Orange button gives the specified colour combination.
  • Indexed ratchet mechanism allows the lever position to be reset after tightening.
  • M10 x 20mm male thread provides the specified connection for the clamping assembly.
  • 47mm overall height defines the installed handle profile.

View our male ratchet clamping handles in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
