Ergonomic Clamping Handle - HW163

Product code: HW163
View All Specifications

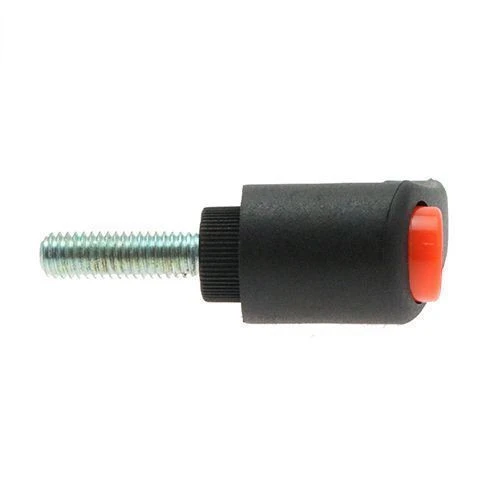

Black M10 x 30mm Ergonomic Clamping Handles

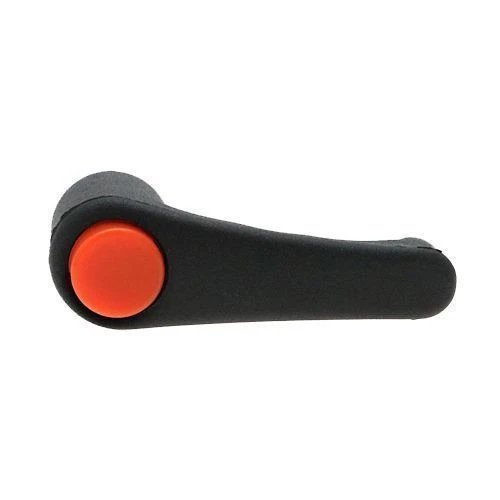

Black M10 x 30mm Ergonomic Clamping Handles

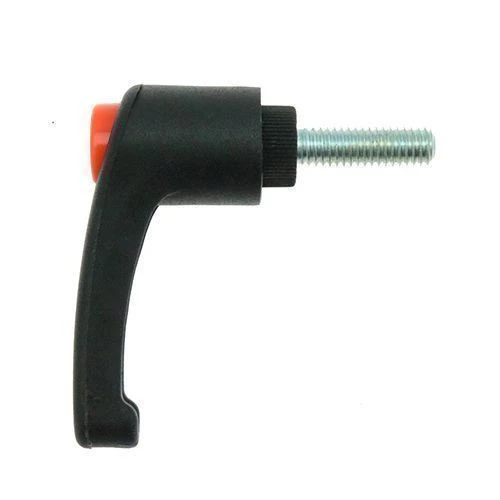

Black M10 x 30mm Ergonomic Clamping Handles

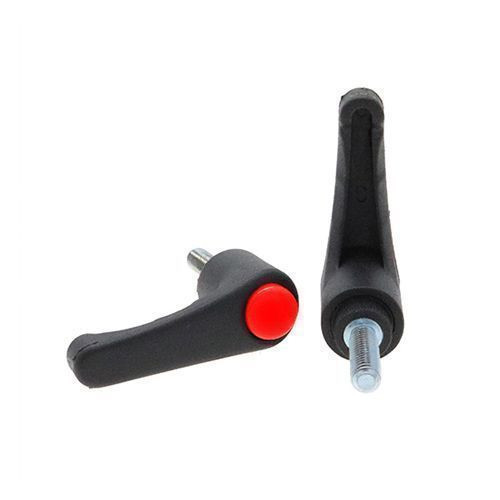

Black M10 x 30mm Ergonomic Clamping Handles
Black M10 x 30mm Ergonomic Clamping Handles
Black M10 x 30mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £3.67 £4.40
10 - 24 £2.98 £3.57
25 - 49 £2.75 £3.30
50 - 99 £2.38 £2.86
100 - 499 £1.93 £2.31
500 + £1.65 £1.98

£4.40 / each


Up to 1 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 731 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
731 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10 x 30mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 30mm Male Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | Steel Thread

For production equipment and adjustable tooling, this M10 x 30mm male indexed clamping handle provides a threaded clamping stud and 83mm operating lever in one assembly. The ratchet mechanism helps users tighten the fixing then move the handle to a more convenient resting position. The Steel threaded component provides a robust fixing for general machinery, tooling and industrial adjustment.

What Are Ergonomic Clamping Handles?

Indexed Ergonomic Clamping Handles combine a threaded fixing with a repositionable hand lever. After tightening, the handle can be reset to a more convenient angle which helps reduce interference with nearby guards, panels or machine components.

For additional manual adjustment options, compare our wider machine clamping handles selection across several handle styles and materials.

Common Applications

  • Packaging Machinery: Allows guides, stops and adjustable components to be tightened and repositioned by hand.
  • Inspection Fixtures: Provides repeatable clamping for gauges, test rigs and adjustable checking equipment.
  • Workshop Machinery: Secures suitable guards, brackets and accessories where regular hand adjustment is required.
  • Assembly Equipment: Supports quick manual clamping on suitable fixtures, locators and production aids.

M10 x 30mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M10 x 30mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: Steel

Key Benefits

  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
  • 83mm handle length provides the stated lever size for hand tightening and adjustment.
  • 19mm shank diameter provides the stated central boss dimension.
  • Steel threaded component provides the stated fixing material.

View our male ratchet clamping handles in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
