Ergonomic Clamping Handle - HW164

Product code: HW164
View All Specifications

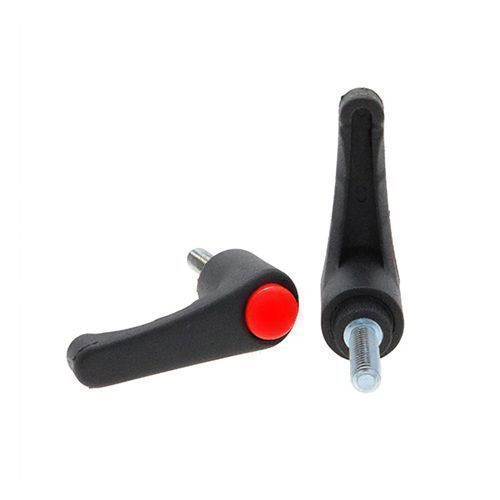

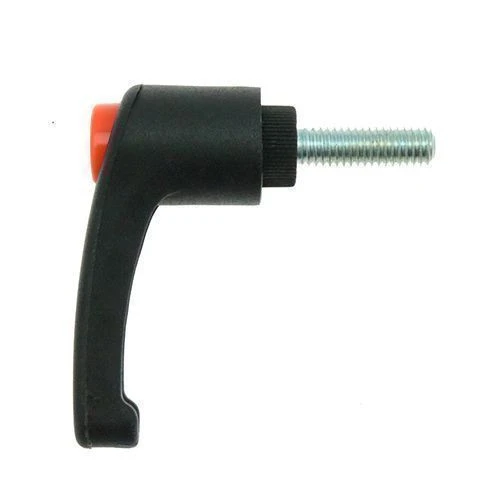

Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Black M10 x 50mm Ergonomic Clamping Handles
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £7.17 £8.60
10 - 24 £5.82 £6.98
25 - 49 £5.38 £6.45
50 - 99 £4.66 £5.59
100 - 499 £3.76 £4.51
500 + £3.23 £3.87

£8.60 / each


Up to 560 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
560 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M10 x 50mm
Thread Type Male
Handle Length 83mm
Height 47mm
Shank Diameter 19mm
Handle Material Nylon
Thread Material A2 Stainless Steel
Handle Colour Black
Button Colour Orange

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M10 x 50mm Male Ergonomic Clamping Handle | 83mm Handle | Black/Orange Nylon | A2 Stainless Steel Thread

For industrial guards, stops and positioning systems, this M10 x 50mm male ergonomic clamping handle provides a threaded clamping stud and 83mm operating lever in one assembly. The ratchet mechanism helps users tighten the fixing then move the handle to a more convenient resting position. The A2 Stainless Steel threaded component provides good corrosion resistance for suitable engineering and equipment applications.

What Are Ergonomic Clamping Handles?

Ratchet Clamping Handles provide manual tightening and adjustment without requiring a separate spanner for each movement. The Nylon lever provides a comfortable operating surface while the threaded section engages with the matching component.

For additional manual adjustment options, compare our wider indexed clamping handles selection across several handle styles and materials.

Common Applications

  • Machine Building: Locks adjustable components, guards, guides and stops in position on suitable machinery.
  • Jigs and Fixtures: Provides repeatable hand adjustment for workholding fixtures, locating devices and production tooling.
  • Toolmaking: Secures adjustable plates, brackets and fixture components where quick manual repositioning is required.
  • Industrial Equipment: Provides a hand-operated clamping point for suitable production, packaging and maintenance machinery.

M10 x 50mm Male Ergonomic Clamping Handle Dimensions

  • Thread Size: M10 x 50mm
  • Thread Type: Male
  • Handle Length: 83mm
  • Height: 47mm
  • Shank Diameter: 19mm
  • Handle Colour: Black
  • Button Colour: Orange
  • Handle Material: Nylon
  • Thread Material: A2 Stainless Steel

Key Benefits

  • 19mm shank diameter provides the stated central boss dimension.
  • A2 Stainless Steel threaded component provides the stated fixing material.
  • Ergonomic handle profile improves grip and comfort during repeated manual adjustment.
  • 83mm handle length provides the stated lever size for hand tightening and adjustment.

View our ergonomic clamping levers in other thread sizes, colours and handle lengths. If you are unsure which option suits your machinery or fixture, contact our team on 01233 713581.
